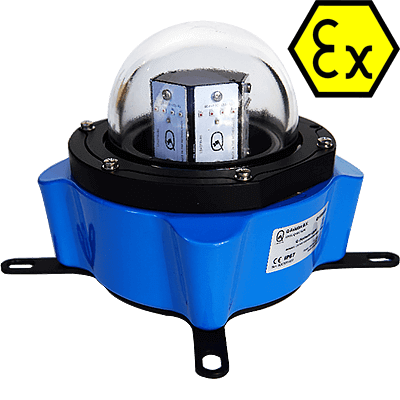

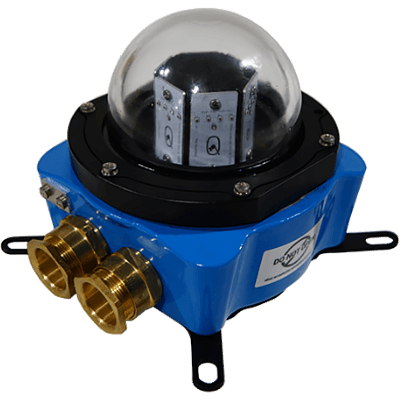

Explosion Proof Red Obstruction Light | Low Intensity 32 cd
Certificates
• CAP437 Certificate
• ICAO Certificate
• IP67
• CE Certificate
• RoHS Certificate
• Ex Certificate
• IECEx Certificate
Applications
The Q-Explosion Proof Low Intensity Obstruction Light 32 cd is an ICAO, CAP437, and CAP168 compliant 32 cd obstruction light for hazardous areas up to zone 1. The obstruction light is available in several configurations such as 100-240 VAC and 24 VDC.

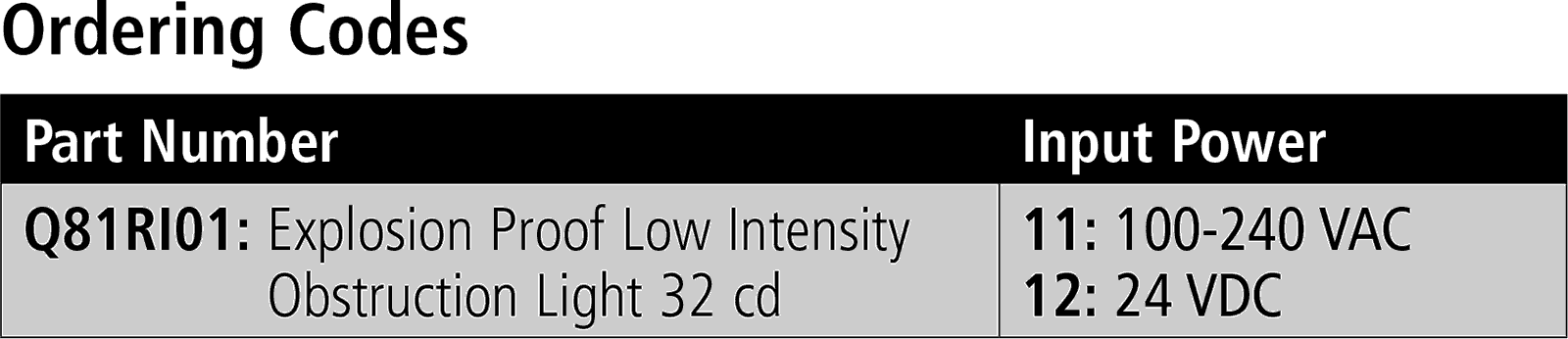

Ordering Codes
| Part Number | Input Power |
|---|---|
| Q81RI01: Explosion Proof Low Intensity Obstruction Light 32 cd | 11: 100-240 VAC 12: 24 VDC |
Technical Specifications
• Application: Obstruction lighting
• Hazardous Area: Zone 1 and 2
• Classification: Class 1 and 2
• Light Source: LED, steady burning
• Light Color: Red, 630nm
• Light Intensity: 32 cd
• Vertical Beam Profile: as per CAP437/CAP168/ICAO/FAA
• Color Chromaticity: as per CAP437/CAP168/ICAO/FAA
• Enclosure: Aluminum, powder coated
• Mounting: Rigid, 4x M8
• Input Voltage: 1) 100-240 VAC, 50-60 Hz; 2) 24 VDC
• External Earthing: up to 4mm2
• Ambient Temp: -13°F to +140°F (-25° to +60° C)
• In Compliance With: CAP437/CAP168/ICAO/FAA
• Cable Glands Included: 2 x M25x1.5
• Cable Stops Included: 1 x M25x1.5
• Cable Outer Dimension: 11.1 – 20.0mm
• Consumption: 5 Watt
• Life Expectancy: 100,000+ hours
• IP Index: IP 67
• Weight: 4.85 lb. (2.20 kg)

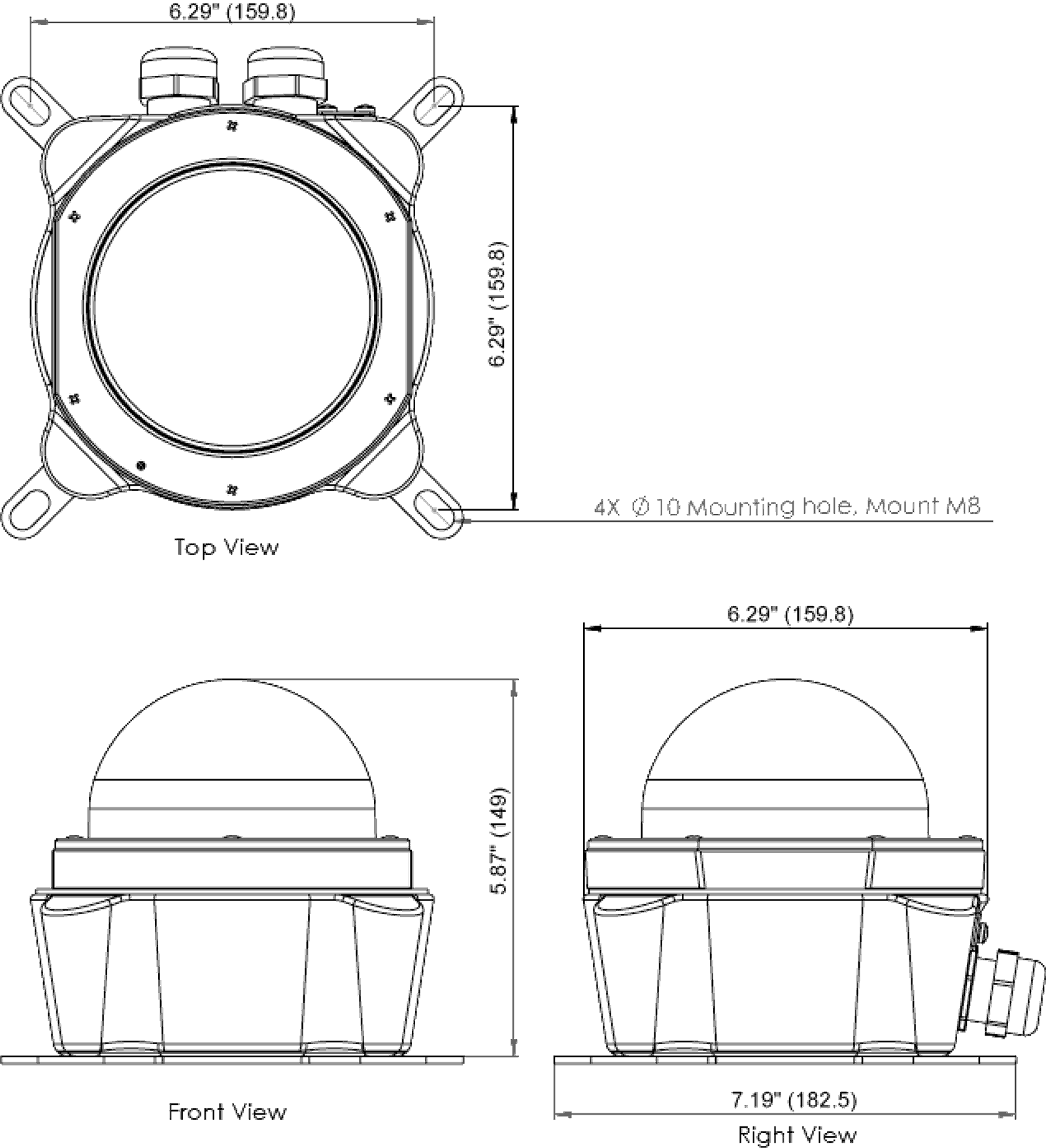

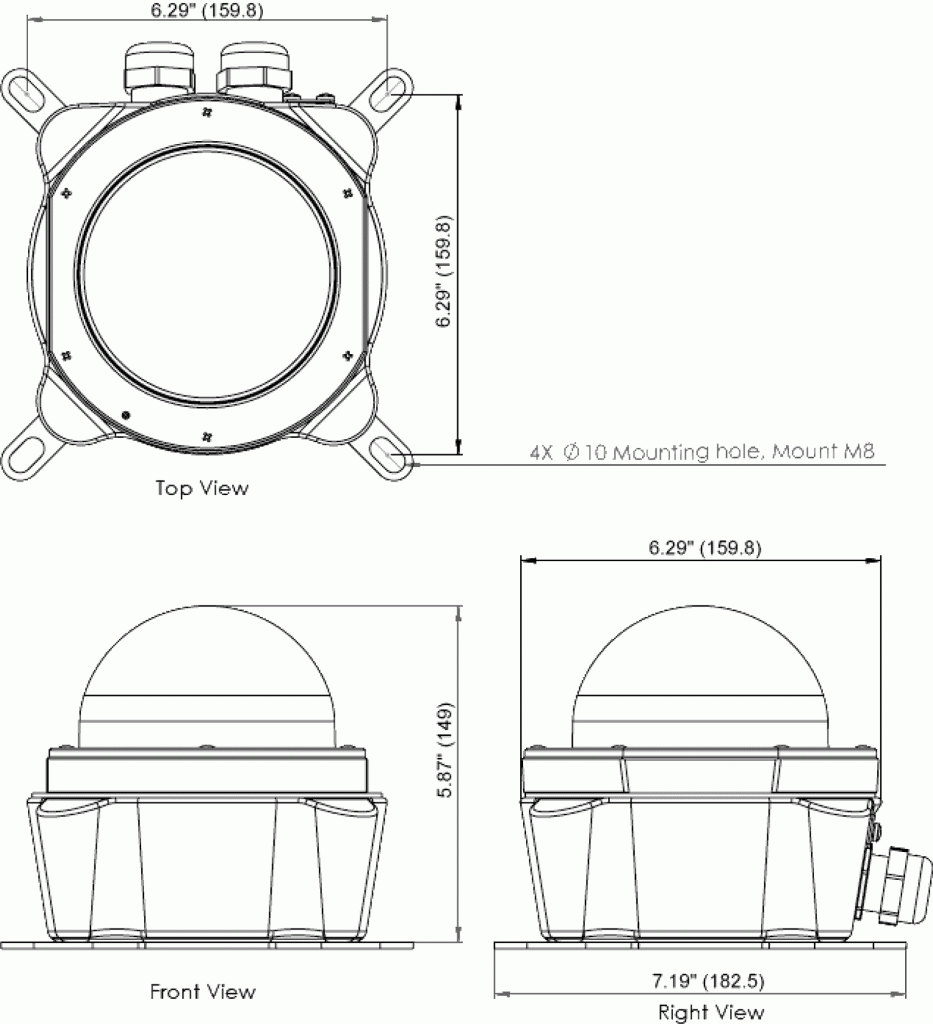

• Dimensions: 7.2″ x 7.2″ x 6.1″ (183x183x155mm) (LxWxH)
• Packaging Dimension: 7.87″ x 7.87″ x 7.87″ (200x200x200mm) (LxWxH)
Certification
Explosion Proof Obstruction Light
Atex Certificate: ITS18ATEX103970X
IECEX Certificate: IECEx ITS 18.0052X
Ex II 2 G Ex db op is IIC T6 Gb
Ex d IIC T6
Cable Gland (2 x included)
Atex Certificate: SIRA13ATEX1068X, SIRA13ATEX4074X
IECEX Certificate: IECEx SIR 13.0023X, IECEx SIM 14.0006
Ex II 2G, II 1D Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da
Ex II 3G Ex nR IIC Gc I M2 Ex d I Mb, Ex e I Mb
Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex d I Mb, Ex e I Mb
Cable Stop (1 x included)
Atex Certificate: SIRA13ATEX1265X
IECEX Certificate: IECEx SIR 13.0094X, IECEx SIM 15.0002X
Ex II 2G Ex d IIC Gb, Ex e IIC Gb, II 1D Ex ta IIIC Da
Ex IM2 Ex d I Mb, Ex e I Mb
Ex d I Mb, Ex e I Mb; Ex d IIC Gb,Ex e IIC Gb, Ex ta IIIC Da
