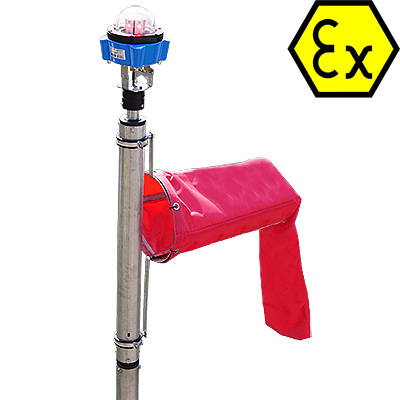

Q-Explosion Proof Wind Direction Indicator (WDI)

Certificates

• CAP437 Certificate
• ICAO Certificate
• IP66
• CE Certificate
• RoHS Certificate
• Ex Certificate
• IECEX Certificate

Applications

The internally lighted Q-Explosion Proof Wind Direction Indicator (WDI) comes as a full LED solution. The complete SS316 exterior and 360° rotatable top unit makes this wind direction indicator suitable for all offshore applications.

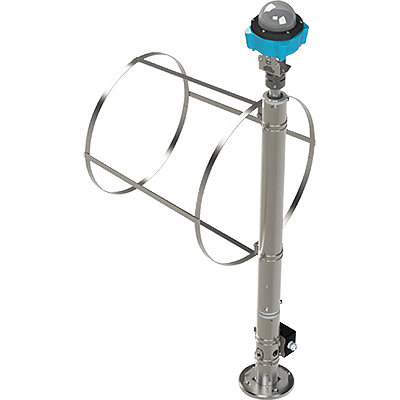

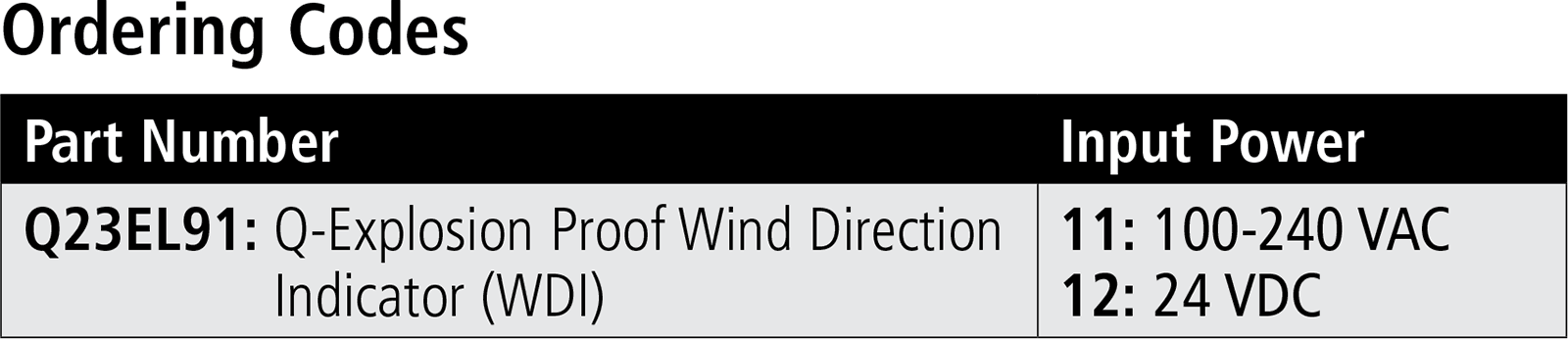

Ordering Codes

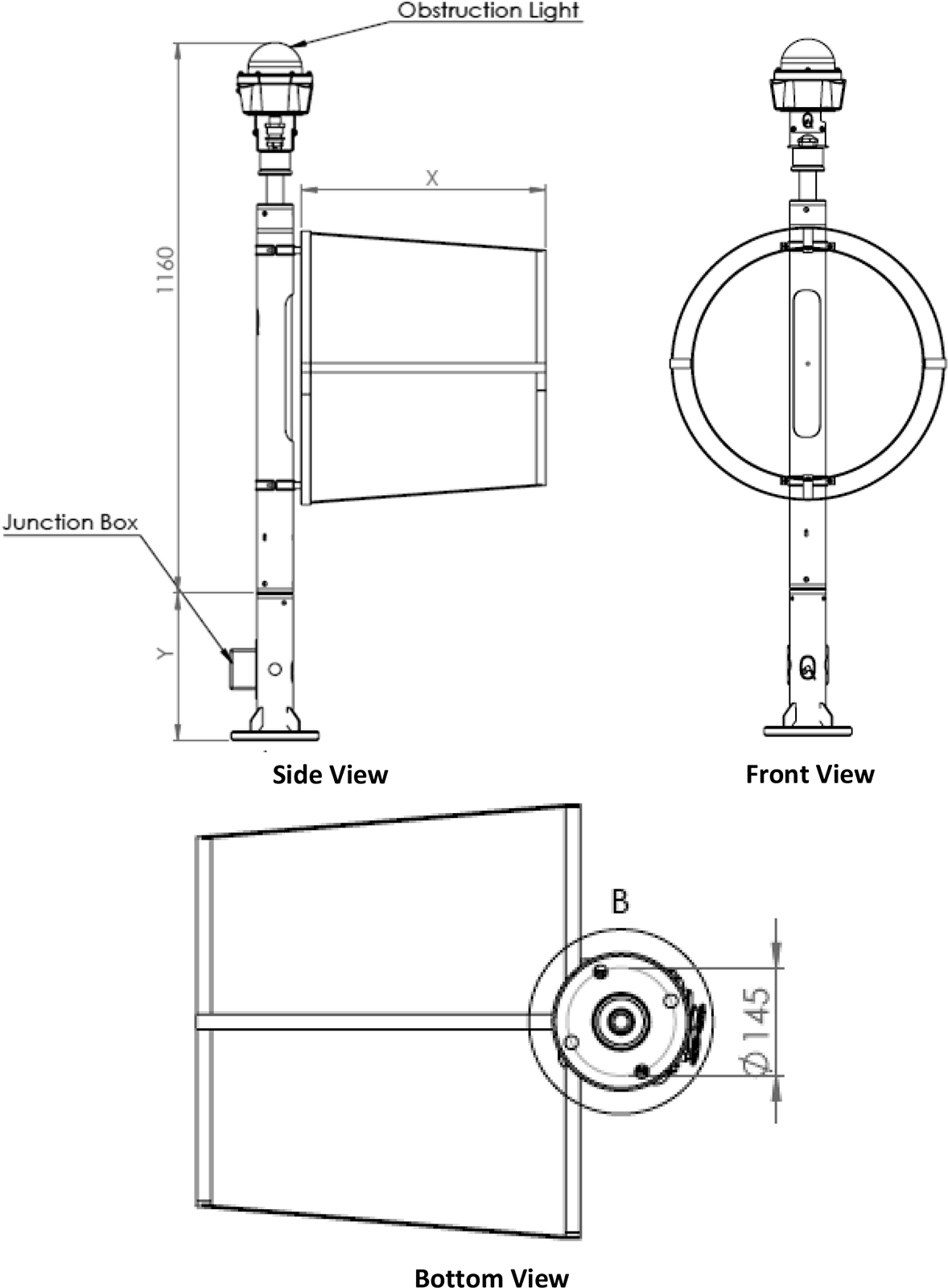

Technical Specifications

• Application: Helideck
• Hazardous Area: Zone 1 and 2
• Classification: Class 1 and 2
• Assembly: Internally lighted with obstruction light
• Internal Light Source: LED, steady burning, color white, 5000K
• Obstruction Light Source: LED, steady burning, color red, 630 nm
• Lighting Unit Material: SS316
• Obstruction Light: Q81RI01, Q-Obstruction Light Low Intensity 32 cd
• Mast Specification: SS316, Ø3″x.08″ (Ø76x2mm)
• Mast Length (Y)*: 11.8″ – 236.2″ (300 – 6000mm)
• Mounting: SS316 Flange, DN65, 4x M16
• Tiltable: No
• Windsock Frame (X)**: SS316. Rotating Frame and Hoop
• Input Voltage: 1) 100-240 VAC, 50-60 Hz; 2) 24 VDC
• Ambient Temp: -4°F to +140°F (-20°C to +60°C)
• In Compliance With: CAP437/ ICAO, Annex 14 vol. II
• Consumption: 26 Watt
• Life Expectancy: 100,000+ hours
• Warranty: Internally lighted Mast 2 Years, Windsock 6 Months
• IP Index: IP 66
• Mast Length: Up to 19.7′ (6m)

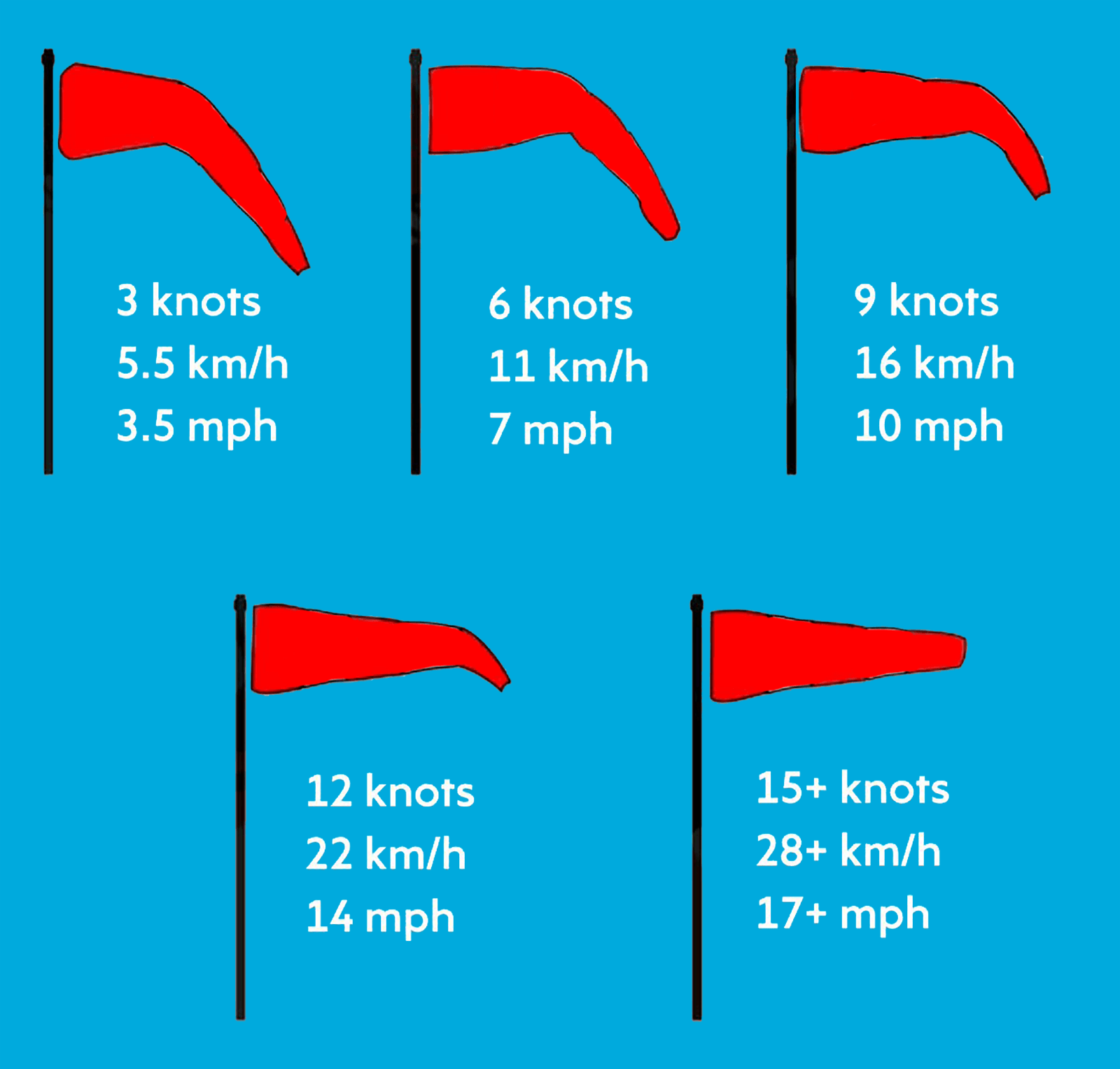

• Windsock Color: Red/White Striped or Orange
• Windsock Sizes (Windsock NOT included):
– Ø11.8″ x 3.9′ (Ø30 x 120cm)
– Ø17.7″ x 8.2′ (Ø45 x 250cm)
– Ø19.7″ x 4.9′ (Ø50 x 150cm)
– Ø23.6″ x 7.9′ (Ø60 x 240cm)

* Mast length can be any length greater than 1′ (.3m).
** Windsock frame must match the windsock size.

Replacement Parts

Wind Direction Indicator Mast:

• Mast Type: Stainless Steel SS316 (SS), Aluminum (AL), Red/White Coated (RW), Orange Coated (OR).

Wind Direction Indicator Frame:

• Stainless Steel SS316 Only

Q-Windsock:

• Windsock Colors: Orange (OR), Red/White Striped (RW).
