L-801H(L) LED Medium Intensity Heliport Rotating Beacon
Downloads
This product is available in our webstore – Shop Now
Compliance and Applications
• ETL Certified L-801H(L): FAA AC 150/5345-12F Medium Intensity

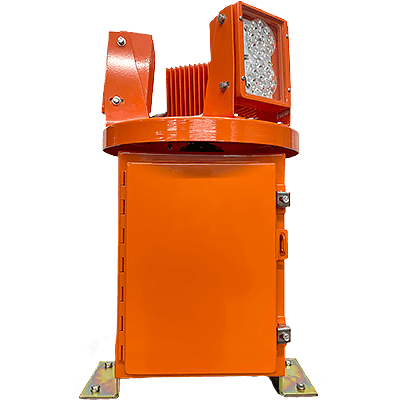

Our L-801H(L) LED Heliport Rotating Beacon meets L-801H specifications. These medium intensity beacons are for night operation as identification and location markers for heliports.
Features
• 80% reduction in power consumption over metal halide lamps
• LEDs turn on instantly at full brightness, no warm up required
• Less light pollution, defined light beam has less light “wash”
• Patented belt-drive system eliminates the lubrication required by conventional gear-drive beacons (U.S. Pat. 5,339,224)
• 25,000 minimum effective candelas from +3° to +7°
• 50,000 hour typical lamp life (12 years)

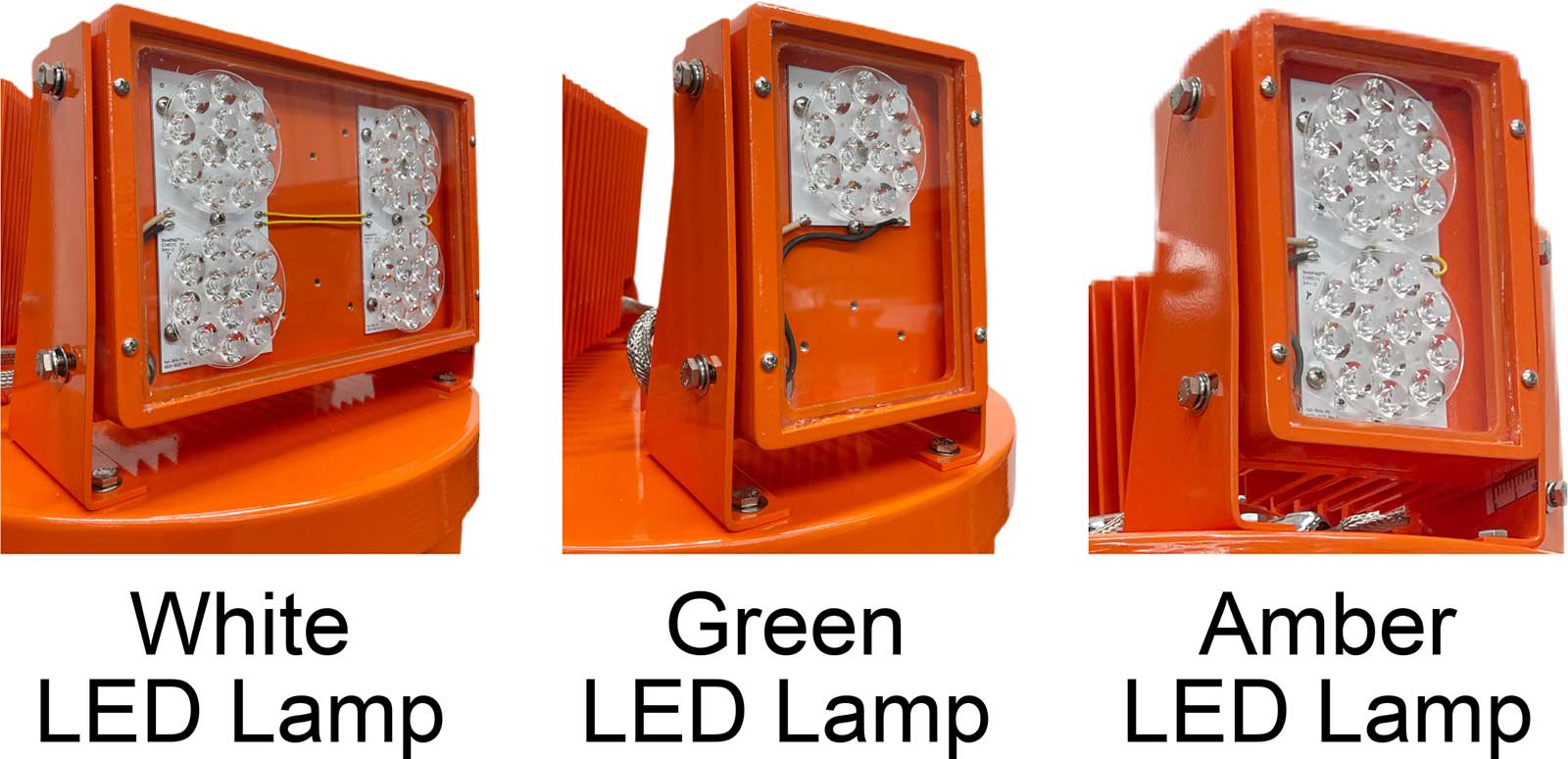

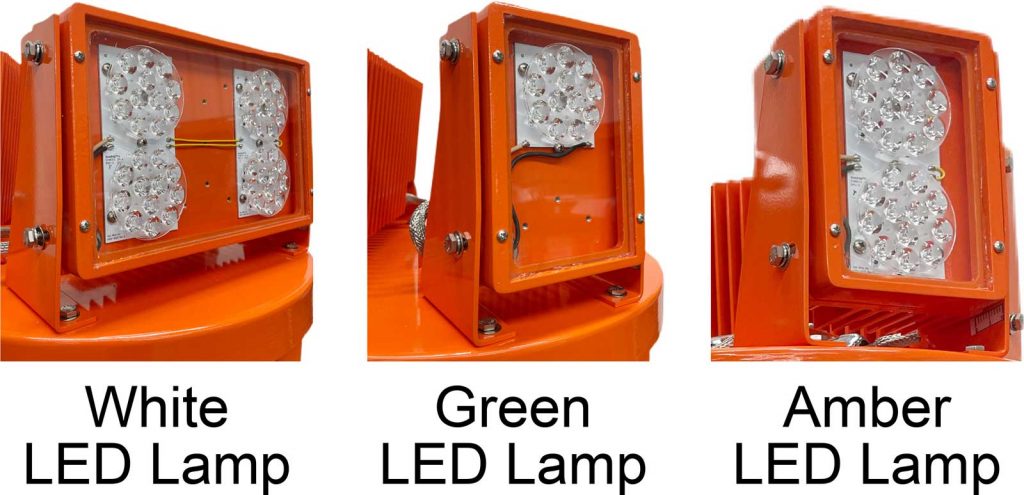

• Three LED lamps: white, aviation green, amber
• All moving parts are permanently lubricated
• Lamps preset 5° above horizontal, adjustable
• 12 RPM rotation, 36 flashes/minute
• Weatherproof steel cabinet, powder coated international orange
• Optional stainless steel cabinet and bearings for highly corrosive environments
• Class I temperature range: -22 to +131°F (-30 to +55°C)
• Class II temperature range: -67 to +131°F (-55 to +55°C)
• Tested to wind velocities of 100 mph (160.9 kph)
• Optional photocell and/or tell-tale relay

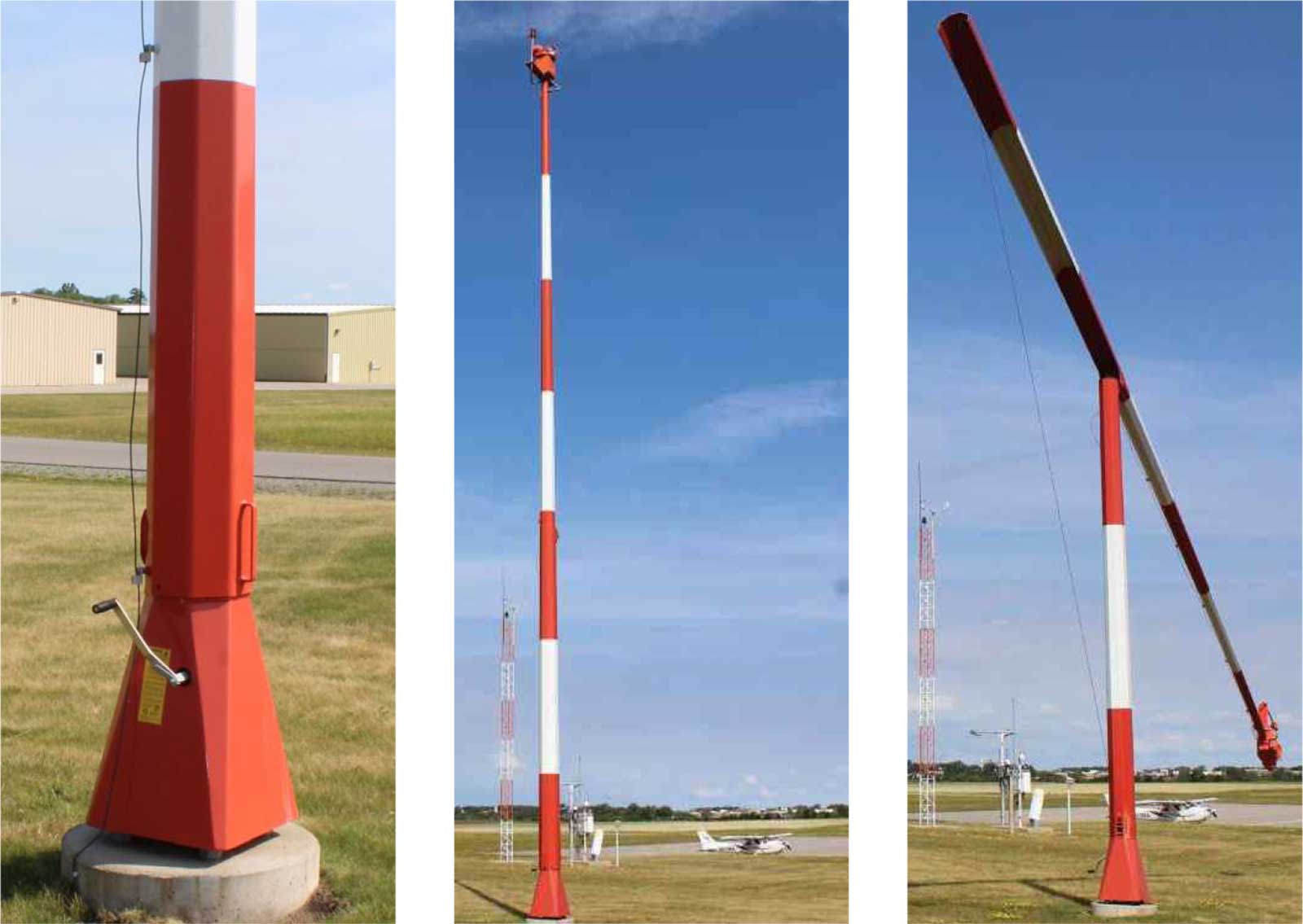

• Mountable on an optional tipdown pole
• Power consumption L-801H(L): Class I: 116W; Class II: 516W
• Manufactured in the USA
L801/HEL Dim Option
• Perfect for hospitals located in densely populated neighborhoods where full power creates problems with light pollution

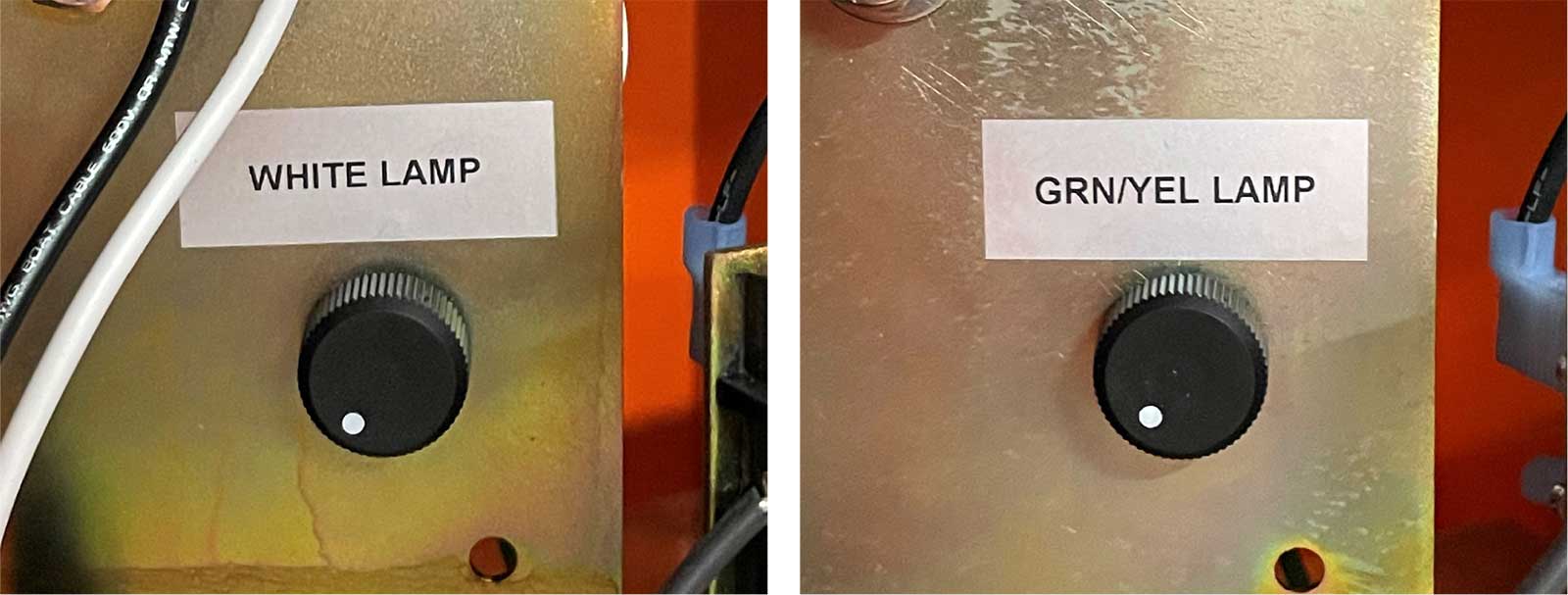

• 2 easily accessible dimmer dials located inside cabinet: one for white, one for green/amber
• Note: Beacon is not FAA certified with this option
Ordering Information
| Part Number | Description |
|---|---|
| L801HL116 | 120 VAC, 60 Hz, Class I |
| L801HL125 | 220-240 VAC, 50 Hz, Class I |
| L801HL126 | 220-240 VAC, 60 Hz, Class I |
| L801HL216 | 120 VAC, 60 Hz, Class II |
| L801HL225 | 220-240 VAC, 50 Hz, Class II |
| L801HL226 | 220-240 VAC, 60 Hz, Class II |
| NOTE: 220-240 VAC must be single wire with neutral | |
Options
| Part Number | Description |
|---|---|
| L801/802 T/T HBM 120 | Tell-Tale Relay, 120 VAC |
| L801/802 T/T HBM 240 | Tell-Tale Relay, 220-240 VAC |
| 4200-0000 | Tower Mounting Kit |
| L801/L802 HBM SS | Stainless Steel Option |
| Tipdown | Tipdown Pole |
| L801/HEL Dim Option | Dimmable Option (not FAA certified) |
Replacement Parts
| Part Number | Description |
|---|---|
| 0100-3944 | Surge Protector |
| 0200-0032 | 150W Power Supply |
| 0200-0030 | 70W Power Supply |
| 0600-0003 | Drive Belt |
| 4100-0000-1A | Motor 120 VAC |
| 4100-0006-2 | Motor 230 VAC |
| 5000-0003 | Pulley, Main Shaft |
| 5000-0004 | Pulley, Motor |
| 9100-0015 | 1/2″ Conduit Cover & Gasket |
| 9200-0049 | Head Assembly, White |
| 9200-0050 | Head Assembly, Green |
| 9200-0051 | Head Assembly, Amber |

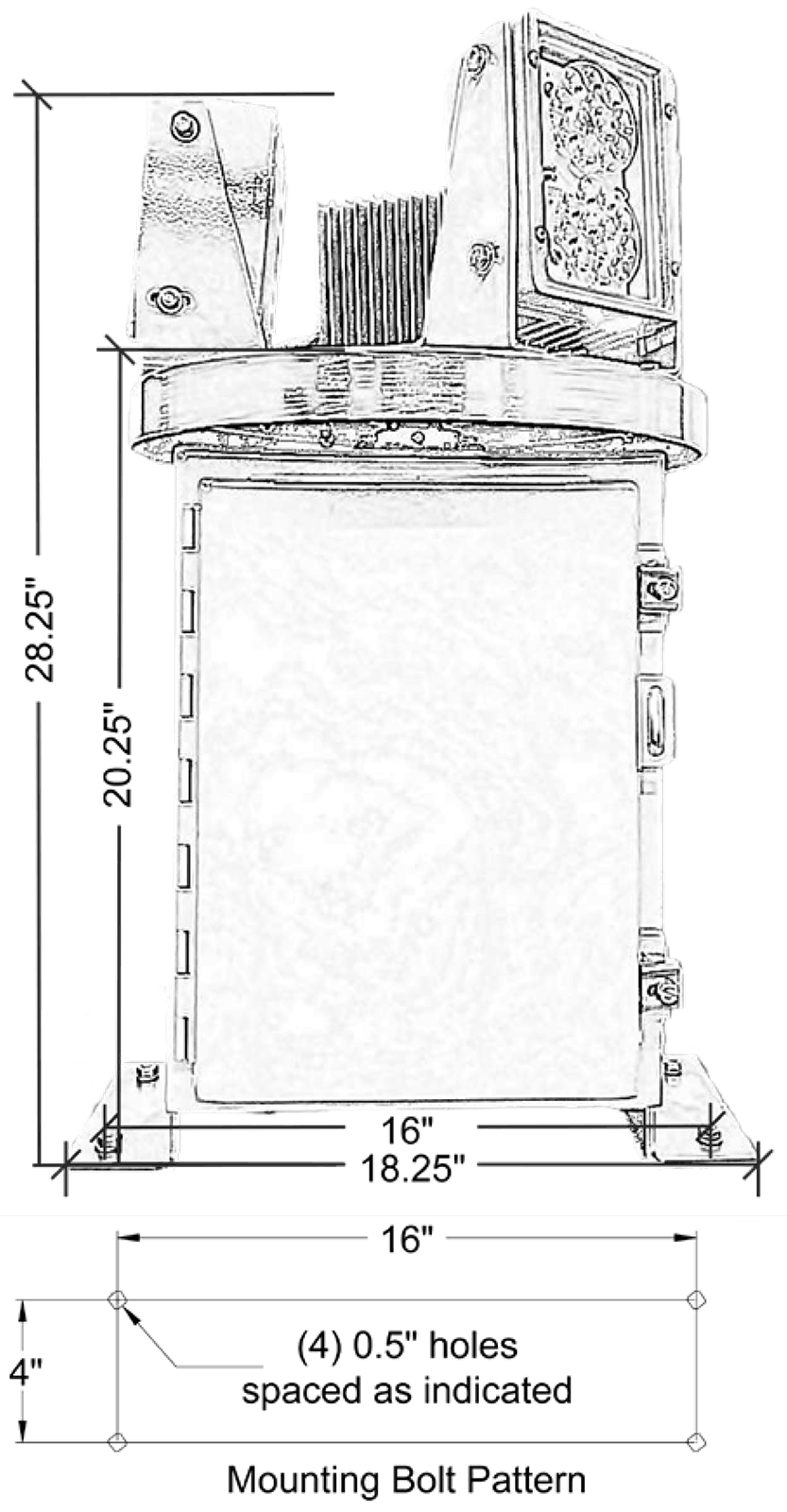

Shipping Information
• Unpackaged Weight: 75 lb. (34 kg)
• USA Shipping Weight: 118 lb. (54 kg)
• USA Shipping Volume: 48″x40″x26″ (122 x 102 x 66 cm)
• International Shipping Weight: 118 lb. (54 kg)
• International Shipping Volume: 48″x40″x26″ (122 x 102 x 66 cm)
Optional LED Rotating Beacon Rapid Response Repair Kit

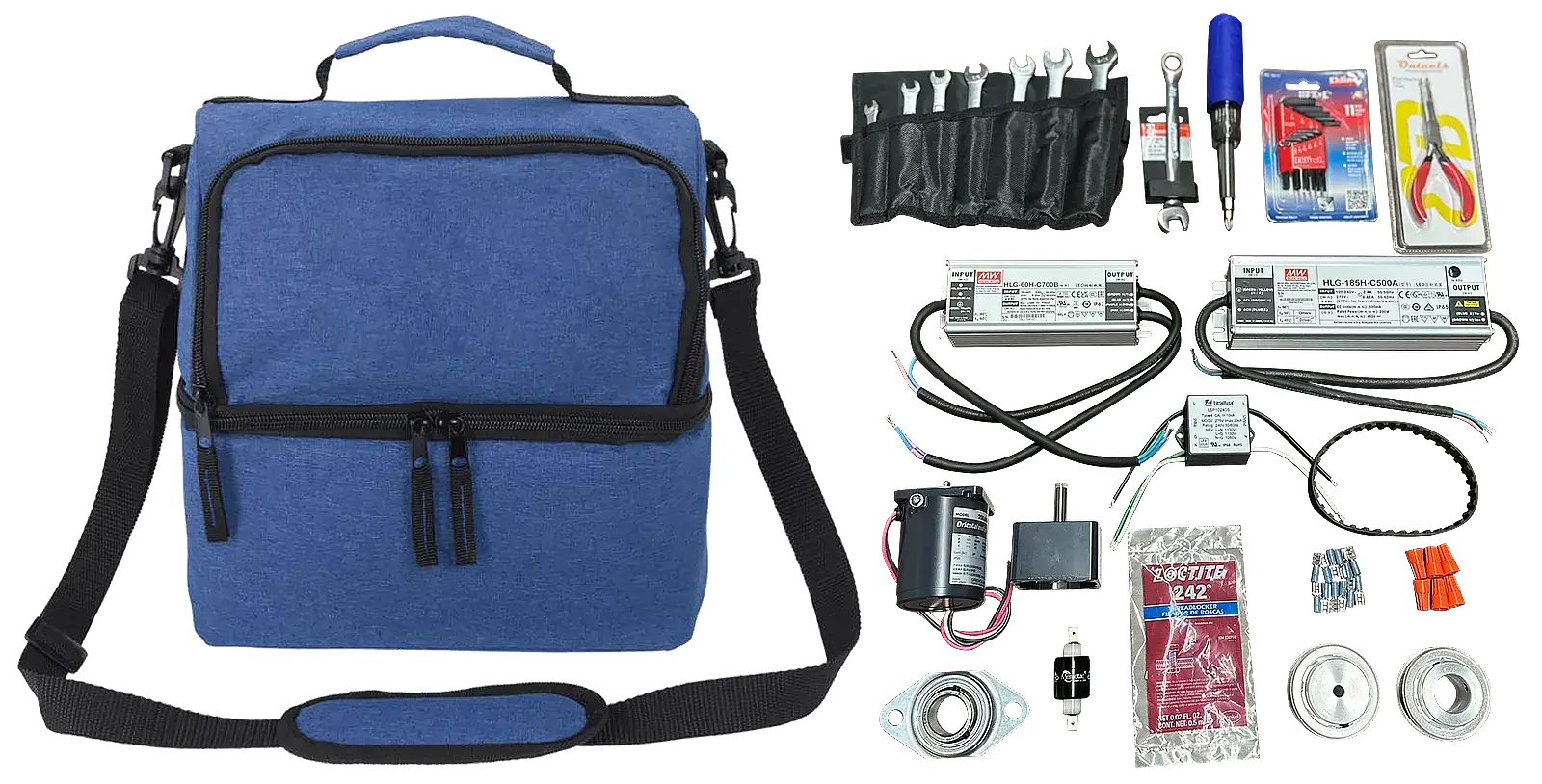

Our Rapid Response Repair Kit includes common parts and tools for repairing LED rotating beacons. Repair kit includes: surge protector, power supplies, drive belt, motor, gearhead, pulleys, Mercotac coupling, bearing, carry tote and all tools needed for parts replacement.
Part #: L801H Rapid Response
