L-806 & L-807 Wind Cone Light Kits
L-806 & L-807 Wind Cone Light Kits
Applications

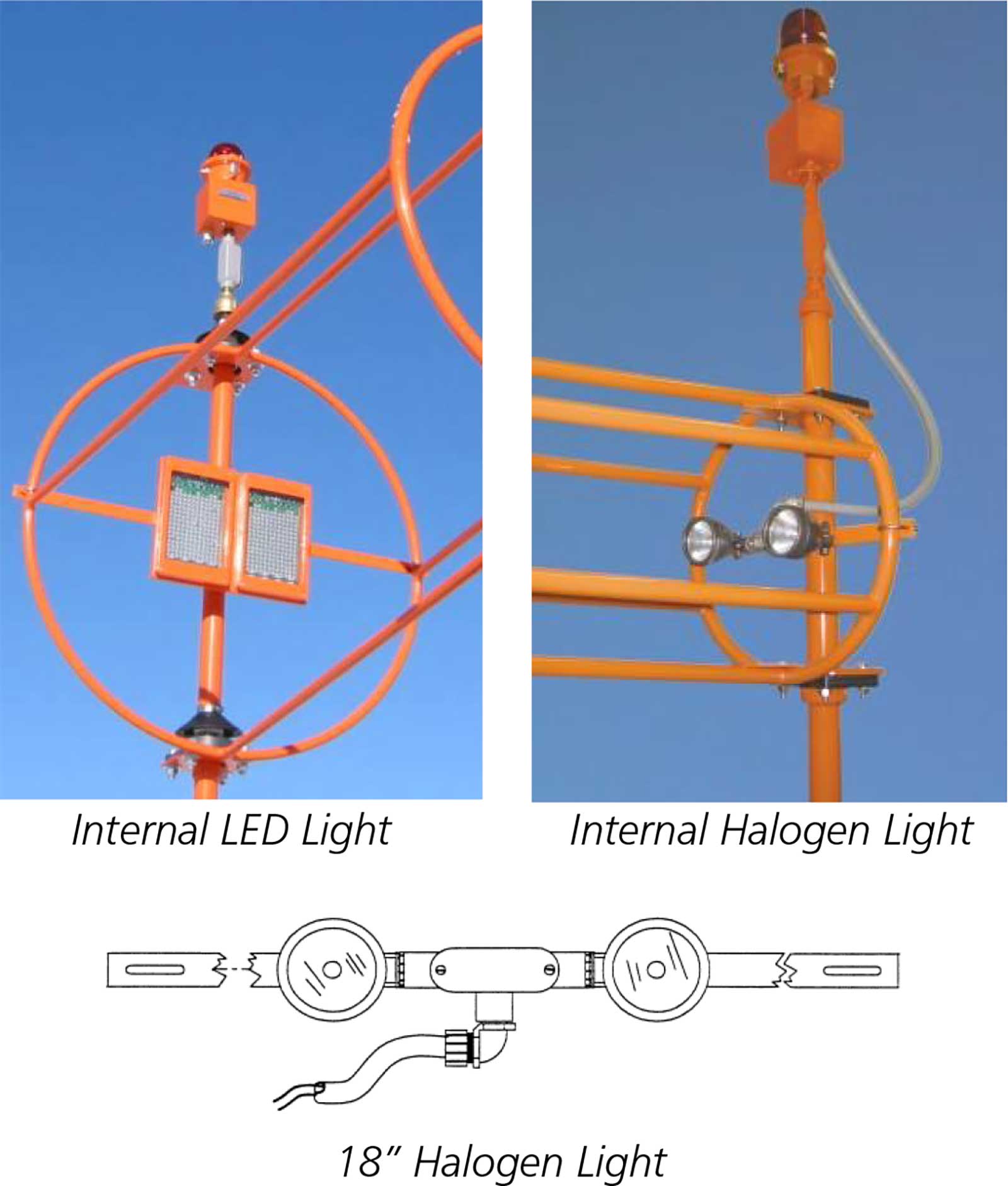

The L-806 and L-807 Wind Cone Light Kits illuminate the surface of the wind cone sock. Internal lighting gives superior nighttime visibility over conventional external lighting.
Features
• Available for Size 1 (18″) and Size 2 (36″) baskets.
• Available in 120 VAC, 12 VDC, or 6.6 amp.
• Designed to fit all major manufacturer’s wind cones.
• Simple installation: the light assembly attaches to the basket with 2 clamps, and the electrical feed assembly attaches to the top of the pole.
• The LED models feature:
– 50,000 to 100,000 hour lamp life, virtually maintenance-free.
– Independent lamp circuits, for improved reliability.
– 6 to 60 VA power consumption, only 5-20% of a typical non-LED external light.
– Long-life LED obstruction light.
• The internally-lighted halogen models have two 100 watt lamps on Size 1, four 100 watt lamps on Size 2, 2,000 hour typical lamp life.
• Includes a single L-810 obstruction light.
• Also available in externally-lighted models.
• Manufactured in the USA.

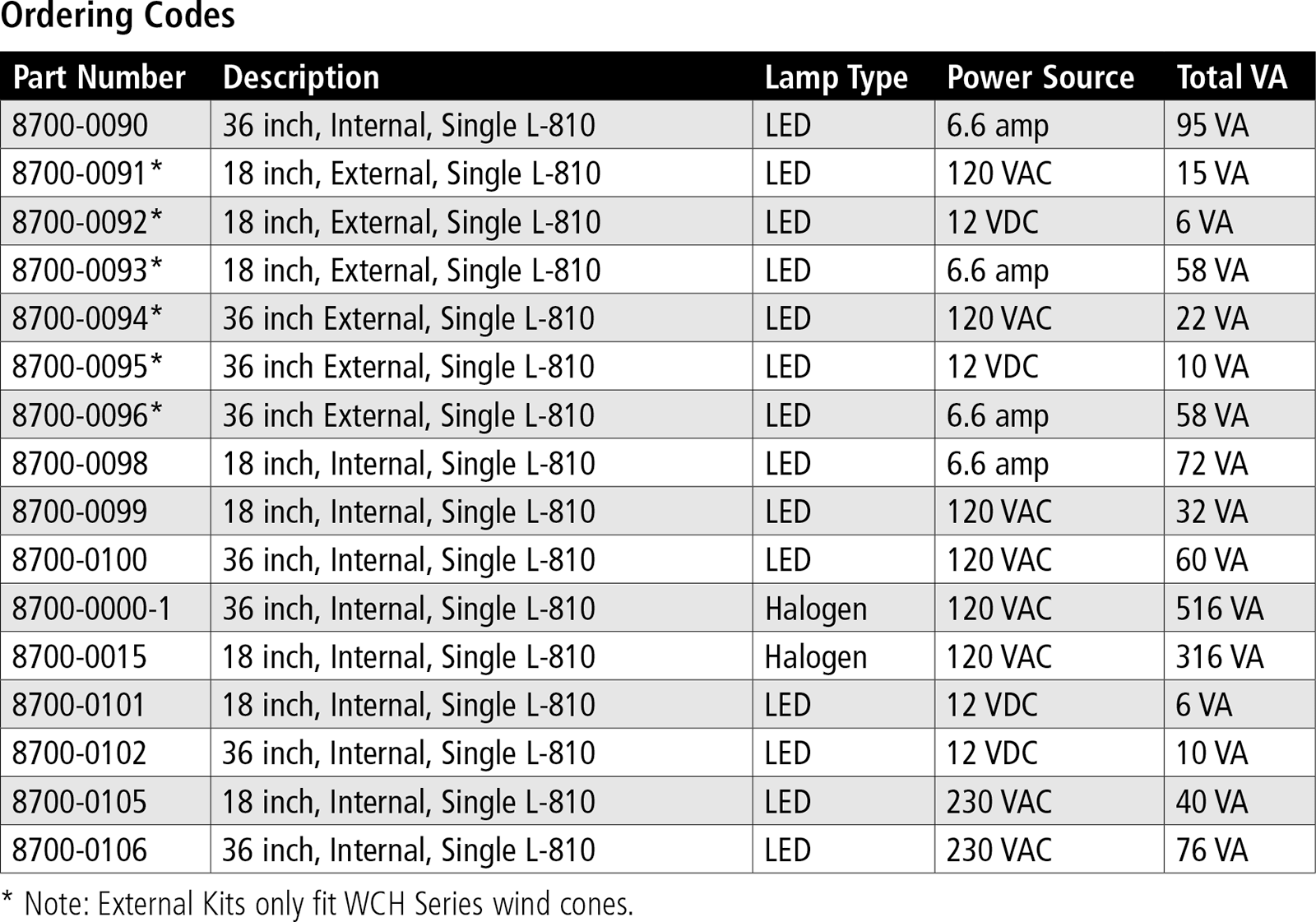

Ordering Codes
| Part Number | Description | Lamp Type | Power Source | Total VA |
|---|---|---|---|---|
| 8700-0090 | 36 inch, Internal, Single L-810 | LED | 6.6 amp | 95 VA |
| 8700-0091* | 18 inch, External, Single L-810 | LED | 120 VAC | 15 VA |
| 8700-0092* | 18 inch, External, Single L-810 | LED | 12 VDC | 6 VA |
| 8700-0093* | 18 inch, External, Single L-810 | LED | 6.6 amp | 58 VA |
| 8700-0094* | 36 inch External, Single L-810 | LED | 120 VAC | 22 VA |
| 8700-0095* | 36 inch External, Single L-810 | LED | 12 VDC | 10 VA |
| 8700-0096* | 36 inch External, Single L-810 | LED | 6.6 amp | 58 VA |
| 8700-0098 | 18 inch, Internal, Single L-810 | LED | 6.6 amp | 72 VA |
| 8700-0099 | 18 inch, Internal, Single L-810 | LED | 120 VAC | 32 VA |
| 8700-0100 | 36 inch, Internal, Single L-810 | LED | 120 VAC | 60 VA |
| 8700-0000-1 | 36 inch, Internal, Single L-810 | Halogen | 120 VAC | 516 VA |
| 8700-0015 | 18 inch, Internal, Single L-810 | Halogen | 120 VAC | 316 VA |
| 8700-0101 | 18 inch, Internal, Single L-810 | LED | 12 VDC | 6 VA |
| 8700-0102 | 36 inch, Internal, Single L-810 | LED | 12 VDC | 10 VA |
| 8700-0105 | 18 inch, Internal, Single L-810 | LED | 230 VAC | 40 VA |
| 8700-0106 | 36 inch, Internal, Single L-810 | LED | 230 VAC | 76 VA |
| * Note: External Kits only fit WCH Series wind cones. | ||||
