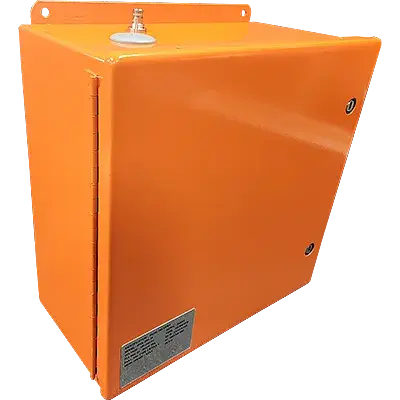

Radio Receiver/Decoder FAA L-854
This product is available in our webstore – Shop Now
Compliance and Applications
• FAA type: L-854 Radio Receiver/Decoder, Air-to-ground, Type 1, Style A
• ETL Certified to: FAA AC 150/5345-49D
Our L-854 FM radio receiver/decoder is designed to provide pilots direct, unassisted air-to-ground control of airfield lighting systems. This field tunable radio allows pilots to activate airfield lighting with a series of 3, 5, or 7 microphone clicks in a 5 second period. An integrated selectable timer shuts airfield lights off after 1, 15, 30, or 60 minutes of illumination.
Our L-854 receiver is particularly useful for small to mid-sized airfields where continuous nighttime illumination is unnecessary and expensive. The unit is a virtual necessity for remote sites where the volume of air traffic or the availability of qualified on-site control personnel may be limited. Our rugged, solid state design will provide years of service and is the perfect replacement for aging “crystal” based units.
Features
• 100% field tunable within the 118-136MHz airband, in .025MHz increments. Chart of Valid FAA Frequencies.
• Relay bank operation is easily selectable from front panel.
• Operate indoors or outdoors, temperature range -67°F to +131°F (-55°C to +55°C).
• Standard long life mechanical relays ensure compatibility with your equipment.
• Our solid state receiver design makes for extremely low power consumption.
• Standard construction features a rugged NEMA 4/12 enclosure. Custom cabinets are available.
• Custom designs are available for OEM integration, solar deployment and mobile operation. Ask our engineers to build your exact model needs.
• Capable of a wide range of operating voltages from 100-240VAC, 50 or 60 Hz. DC version is available.

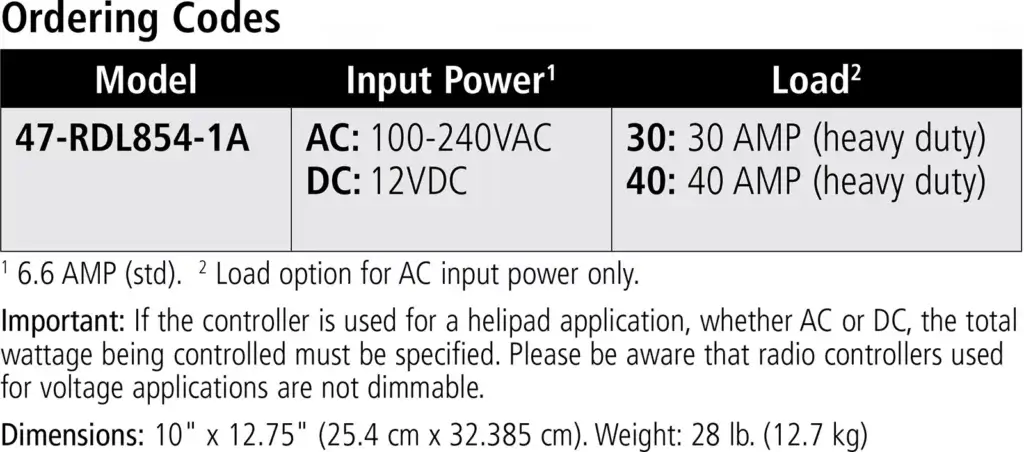

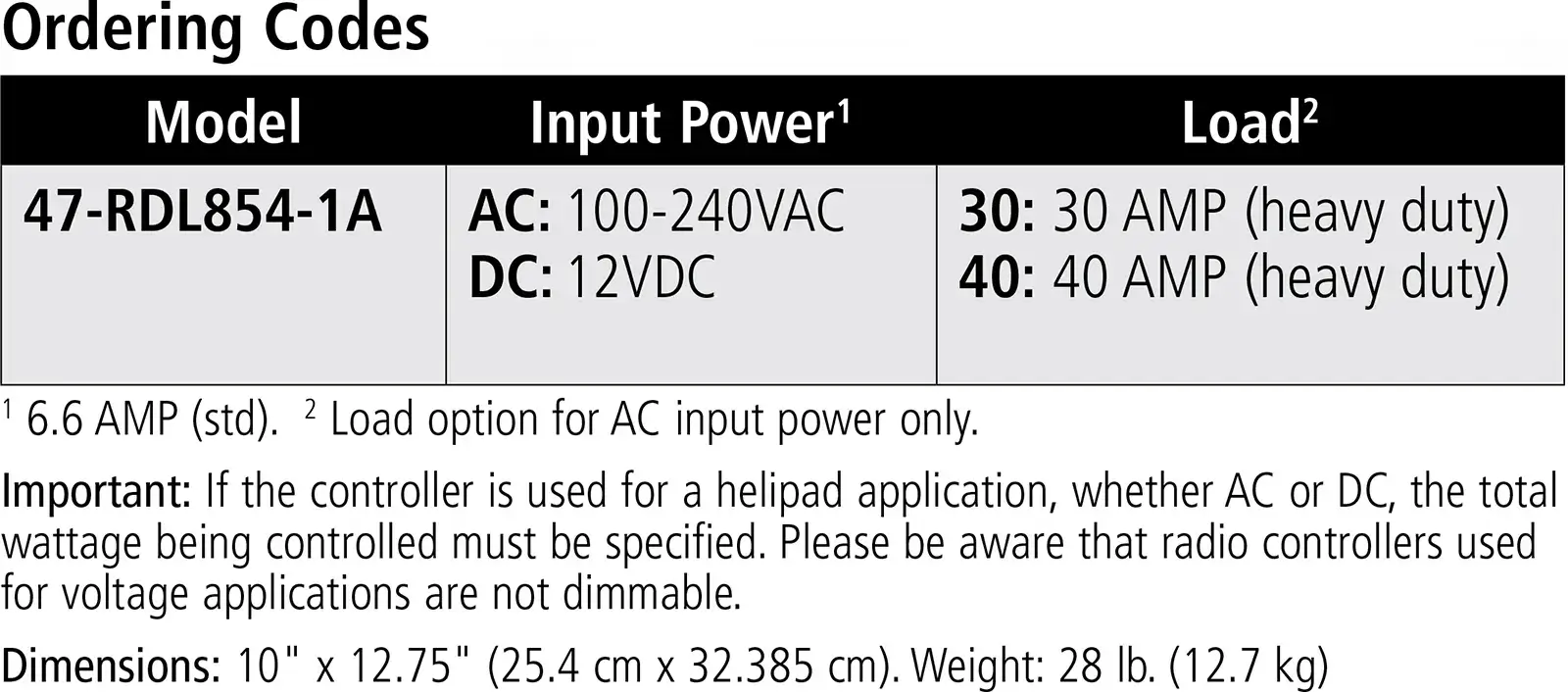

Ordering Codes
| Model | Input Power[1] | Load[2] |
|---|---|---|
| 47-RDL854-1A | AC: 100-240VAC DC: 12VDC |
30: 30 AMP (heavy duty) 40: 40 AMP (heavy duty) |
| [1] 6.6 AMP (std). [2] Load option for AC input power only. Important: If the controller is used for a helipad application, whether AC or DC, the total wattage being controlled must be specified. Please be aware that radio controllers used for voltage applications are not dimmable. Dimensions: 10″ x 12.75″ (25.4 cm x 32.385 cm). Weight: 28 lb. (12.7 kg) |
||
Installation
• Front panel screw clamp terminals are contractor friendly and make installations a breeze.
• Deployment is as easy as hanging the unit, providing a radio power source, wiring control power inputs and outputs and mounting the antenna.
• No mast or other mounting hardware is provided. L-854 Antenna Cable Kit sold separately.

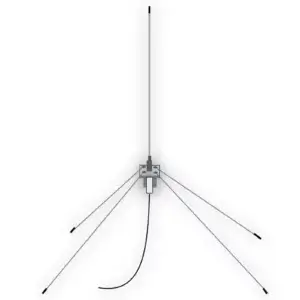

L-854 Antenna Cable Kit
• 25′ of coax cable
• BNC & UHF connections
• Mounting bracket
• Surge protector
• P/N: 47-L854ACK-25
