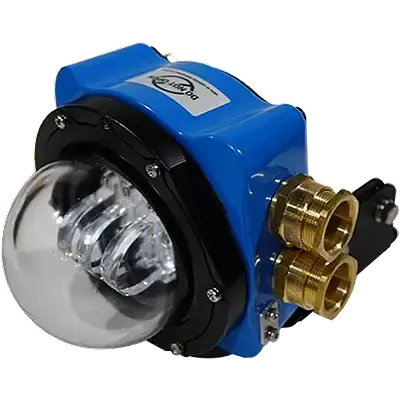

Q-Floodlight

Certificates

• CAP437 Certificate
• IP67
• CE Certificate
• RoHS Certificate

Applications

The Q-Floodlight is a CAP437 compliant 5,000 cd floodlight for the Safe Area and is available in several configurations such as 100-240 VAC and 24 VDC.

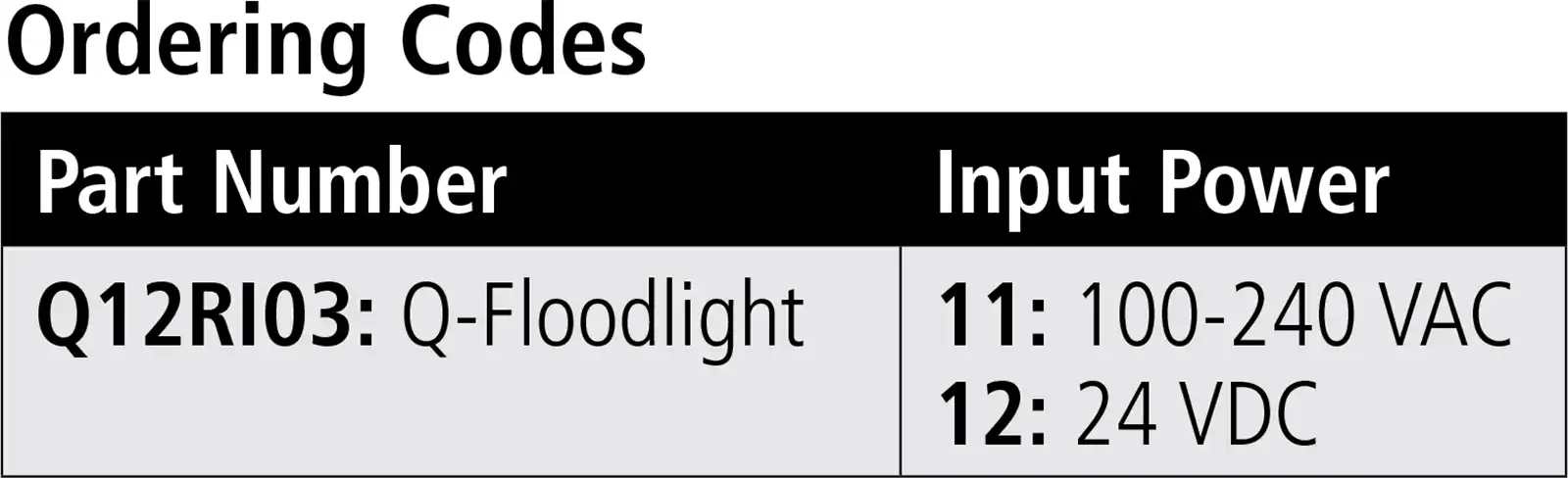

Ordering Codes

Technical Specifications

• Application: Helideck
• Classification: Safe Area
• Light Source: LED, steady burning
• Light Color: White (5700K)
• Light Intensity: 5,000 cd
• Vertical Beam Profile: as per CAP437
• Color Chromaticity: as per CAP437
• Enclosure: Aluminum, powder coated (RAL 5015) / borosilicate glass
• Mounting: Rigid, 4 x M8
• Input Voltage: 1) 100-240 VAC, 50-60 Hz; 2) 24 VDC
• Inrush Current: 70A / 120μs
• Maximum Number of Units: 20 units on a 16A circuit breaker
• External Earthing: up to 4mm² / AWG 12
• Ambient Temperature: -13° to +140° F (-25° to +60° C)
• In Compliance With: CAP437
• Cable Glands Included: 2 x M25x1.5
• Cable Stops Included: 1 x M25x1.5
• Cable Outer Dimension: 12 – 19mm
• Cable Type: H07RN-F 3×2, 5mm²
• Consumption: 6 Watt
• Life Expectancy: 100,000+ hours
• Warranty: 2 Years
• IP Index: IP 67
• Weight: 9.26 lb. (4.2 kg)

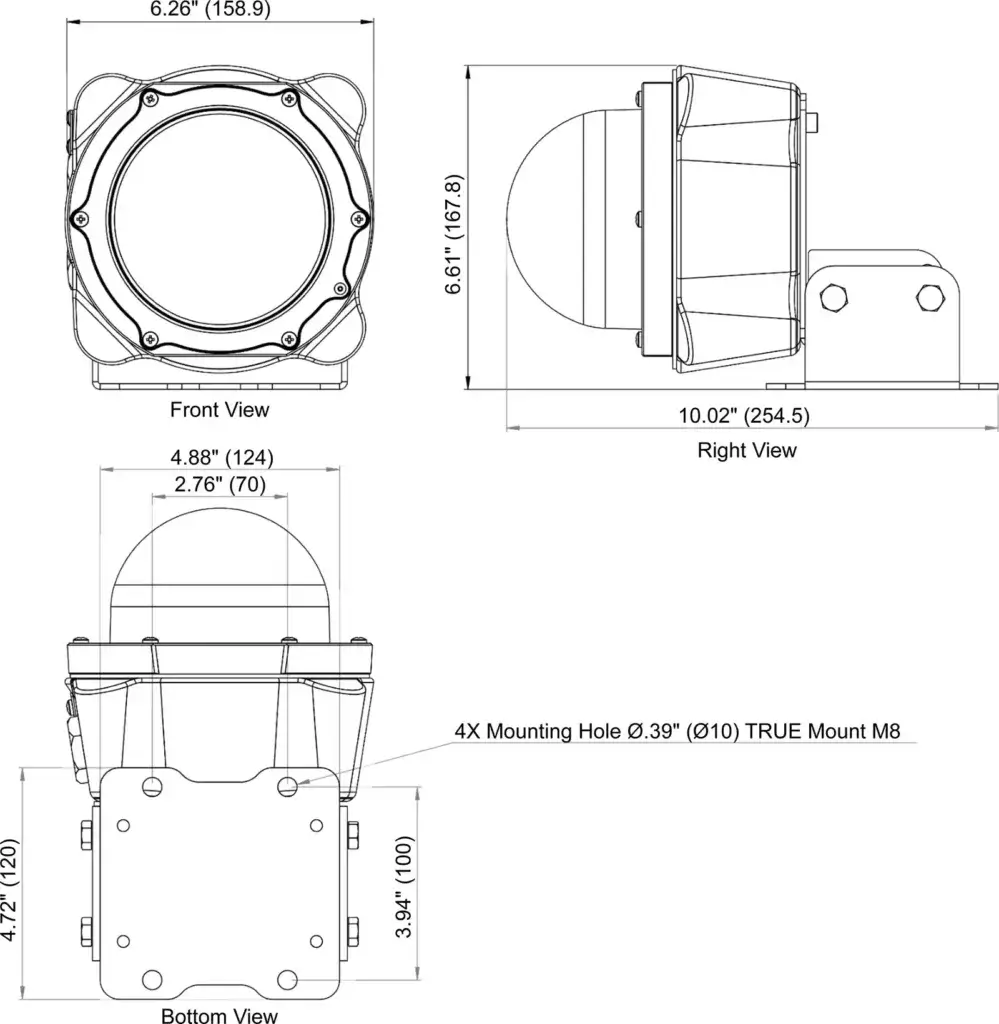

• Dimensions: 10.04″ x 6.26″ x 6.61″ (255x159x168mm) (LxWxH)
• Packaging Dimension: 9.84″ x 9.84″ x 9.84″ (250x250x250mm) (LxWxH)
