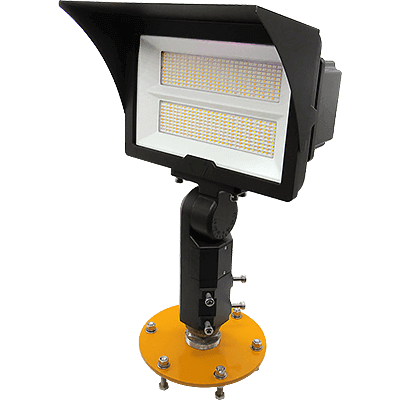

Heliport High Power LED Floodlight (HL-HPFLED)

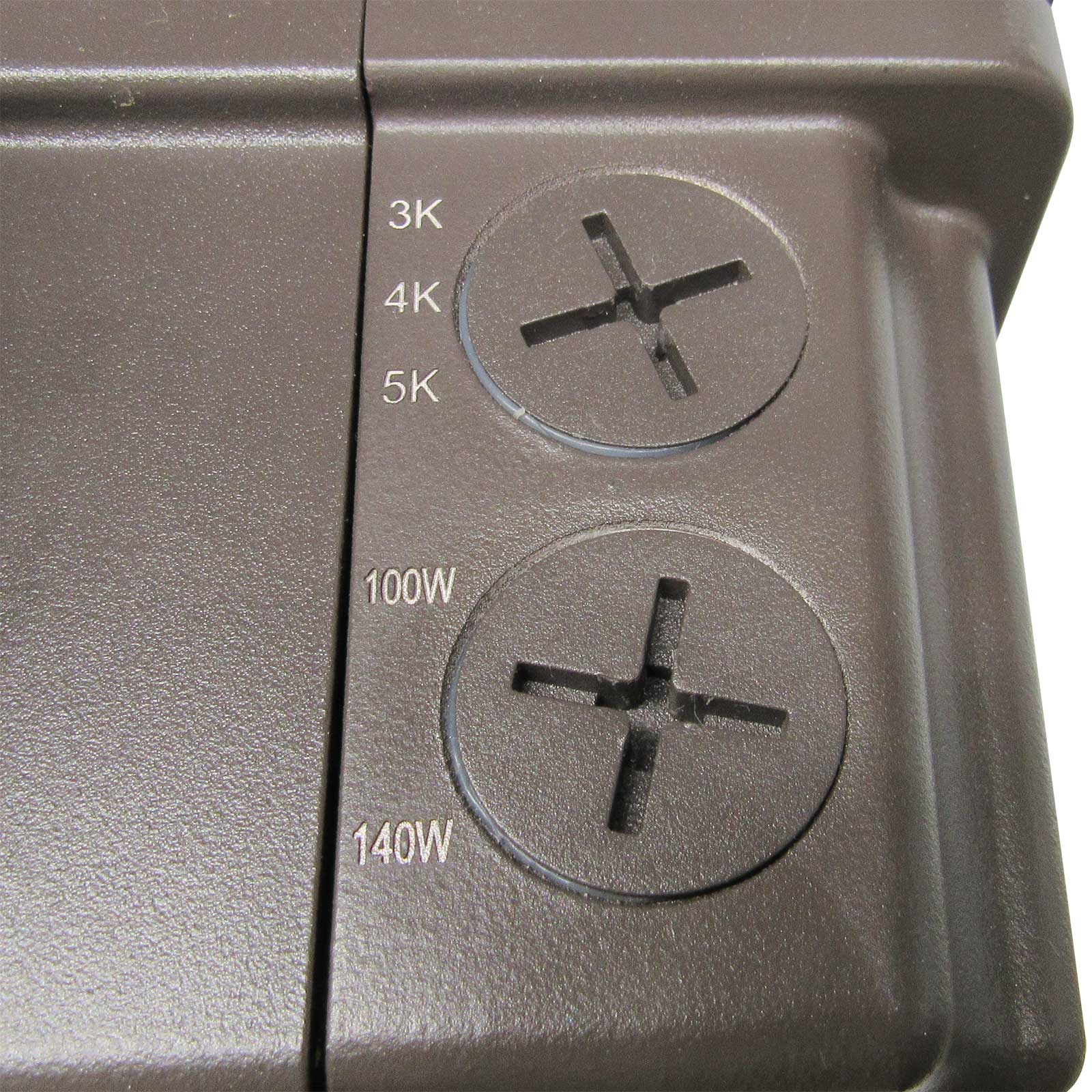

Field adjustable power (140/100W) & color (3000/4000/5000K)

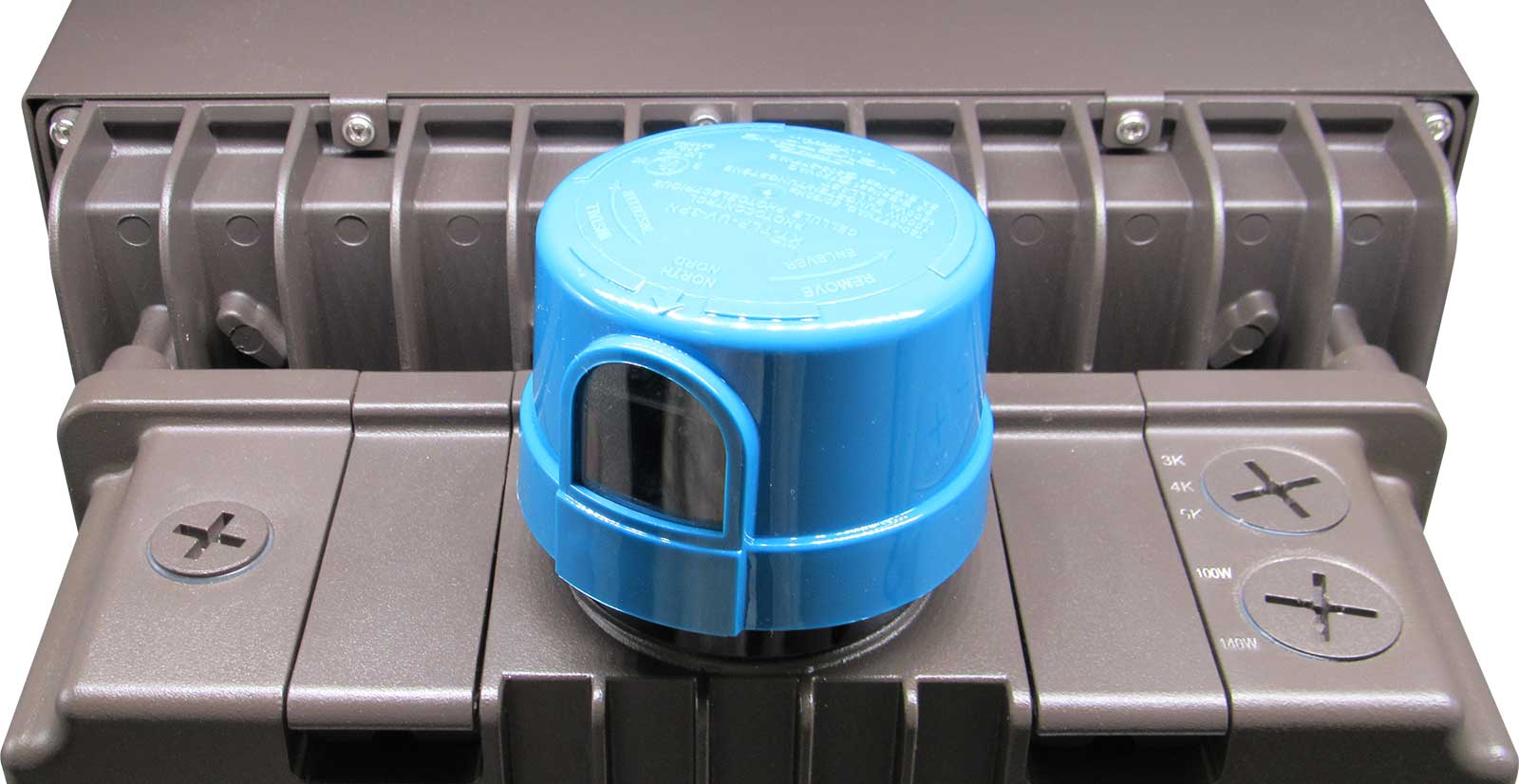

3-pin twist lock photocell included for dusk-to-dawn operation

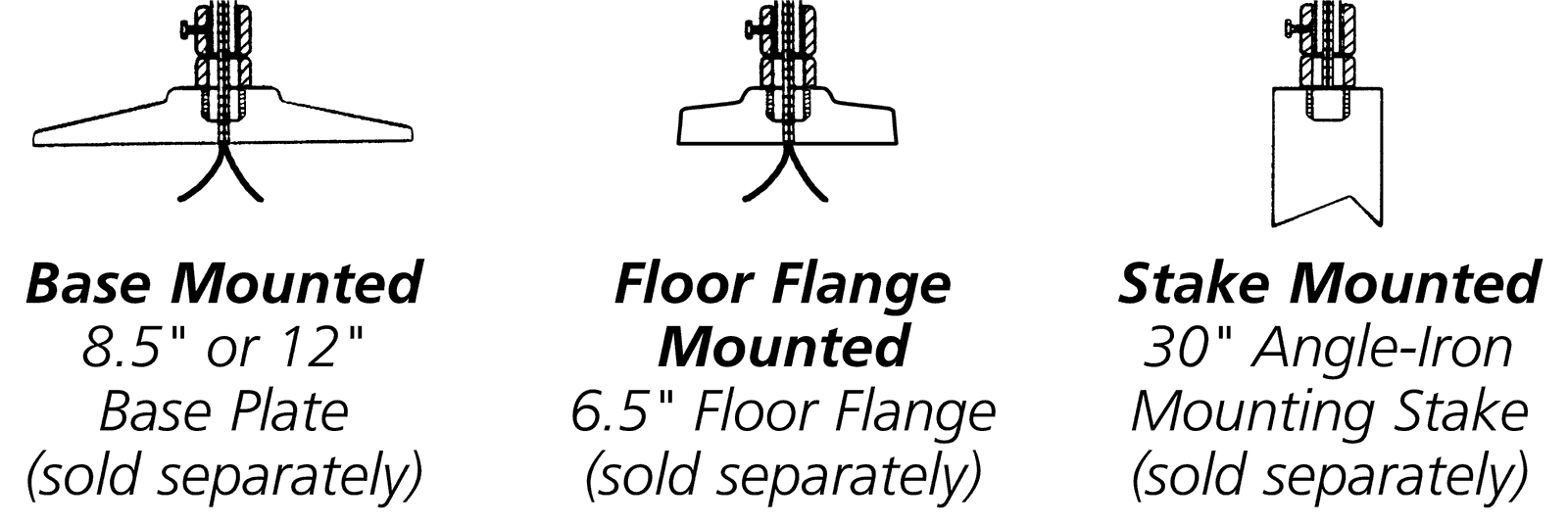

Base Mounted 8.5" or 12" Base Plate - sold separately (left); Floor Flange Mounted 6.5" Floor Flange - sold separately (center); Stake Mounted 30" Angle-Iron Mounting Stake - sold separately (right)

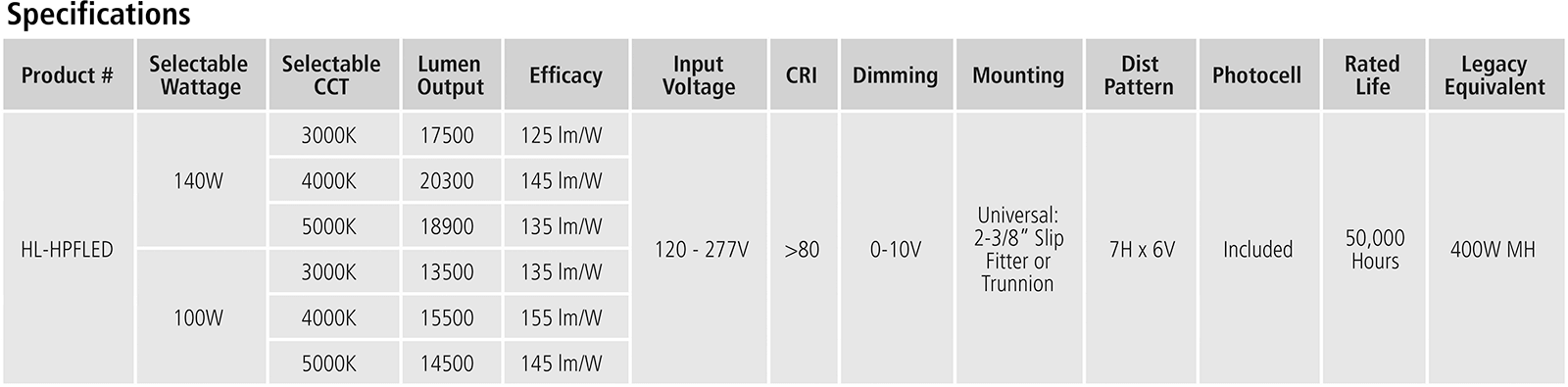

Specifications

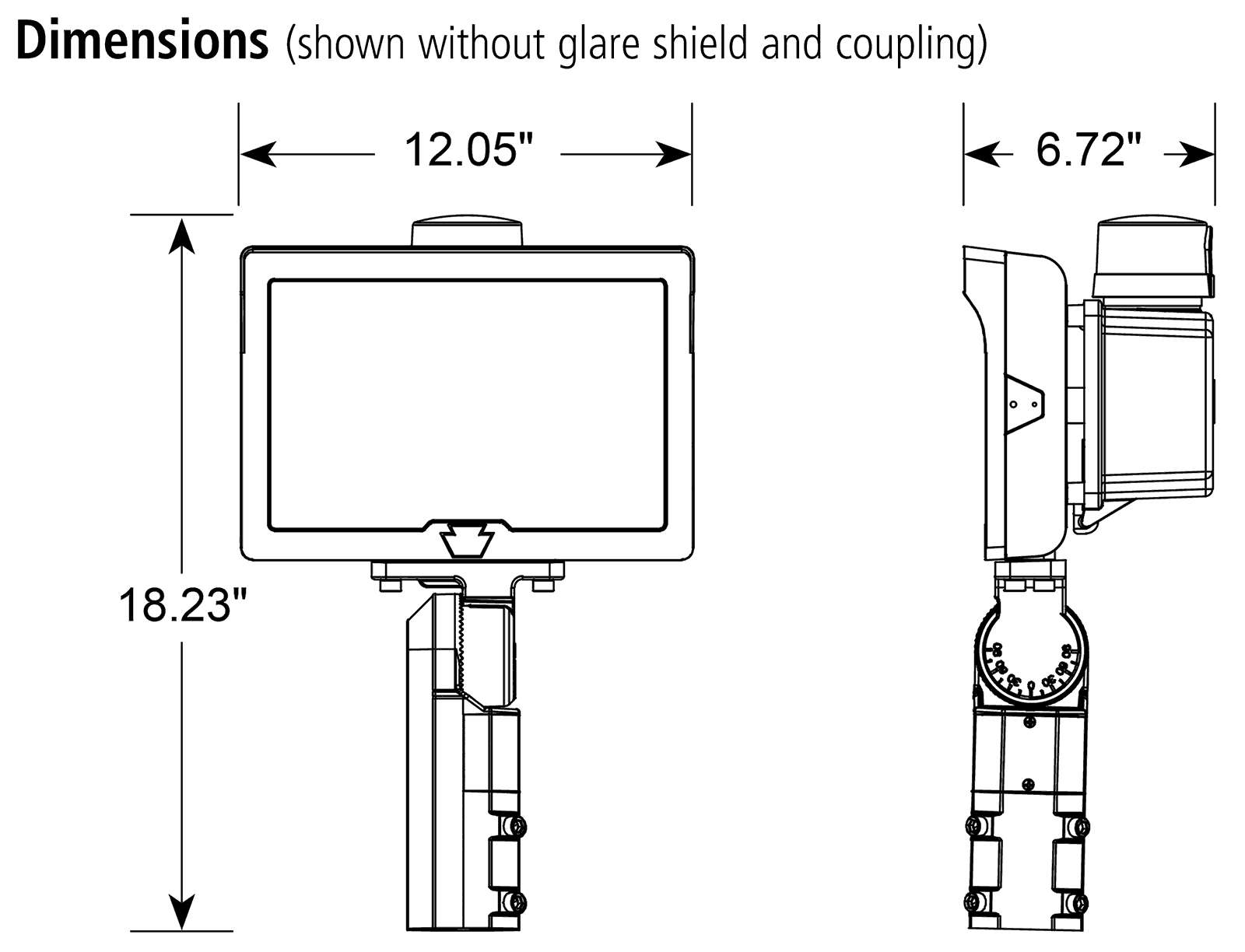

Dimensions (shown without glare shield and coupling)

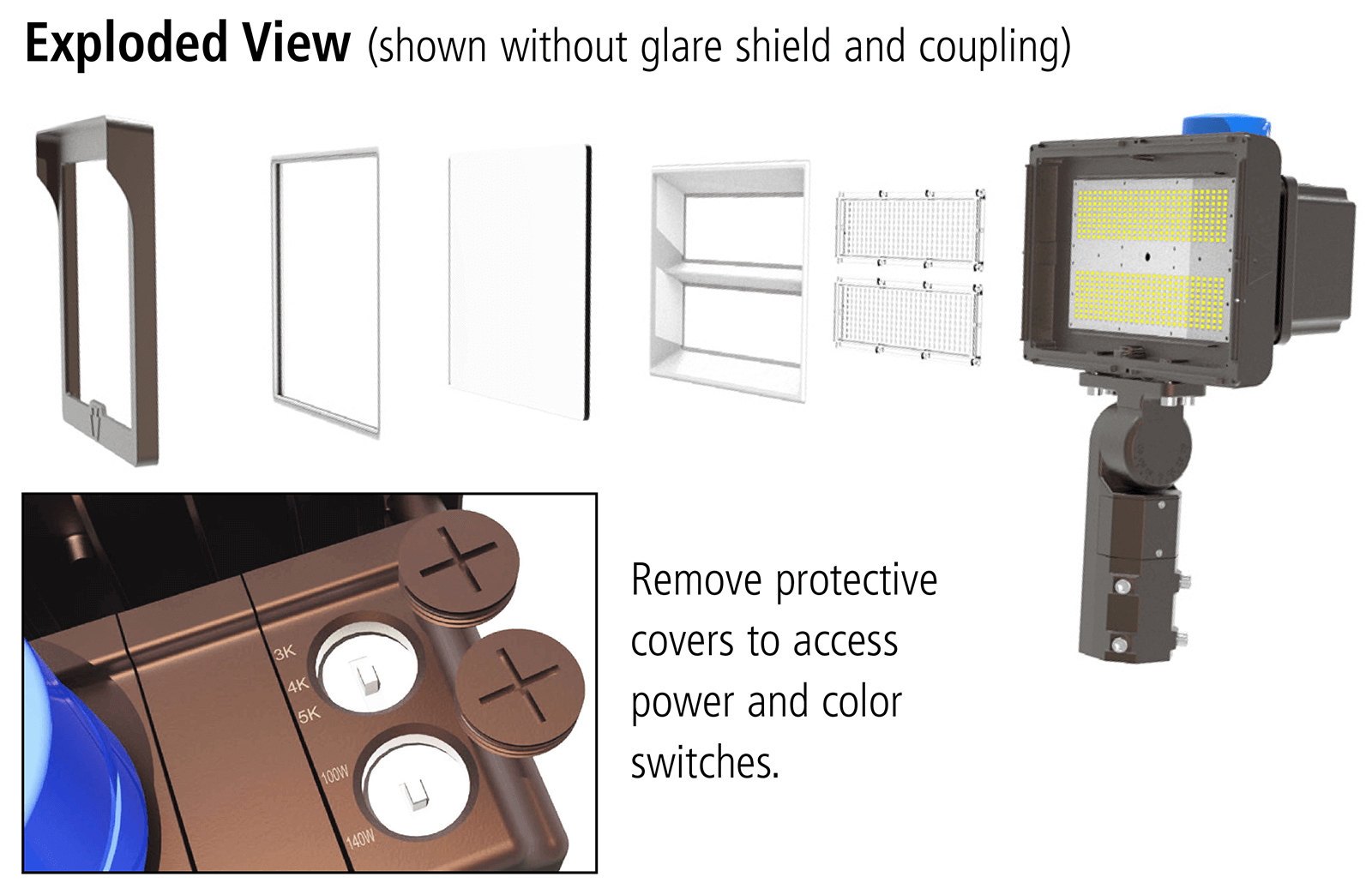

Exploded View (shown without glare shield and coupling)

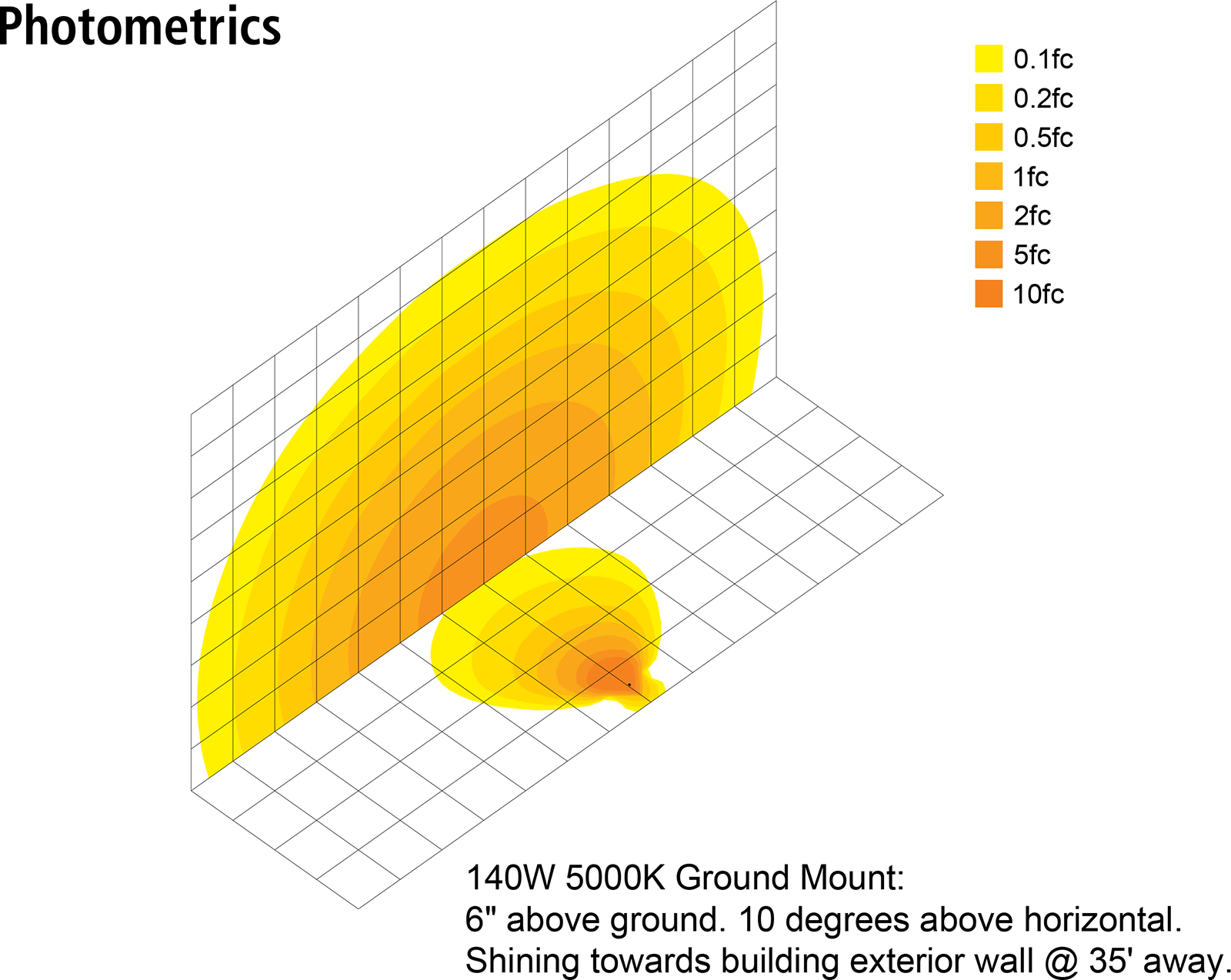

Photometrics

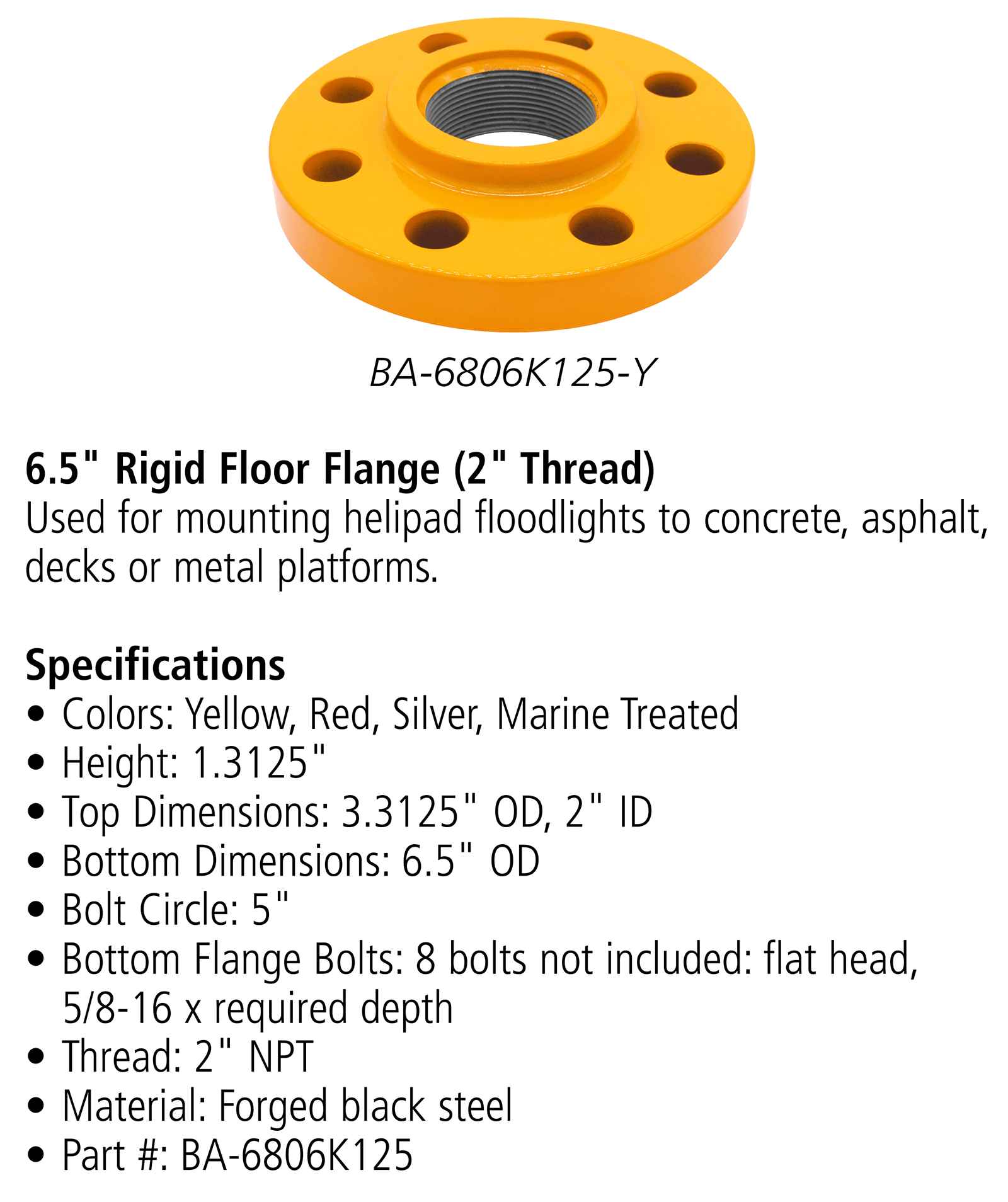

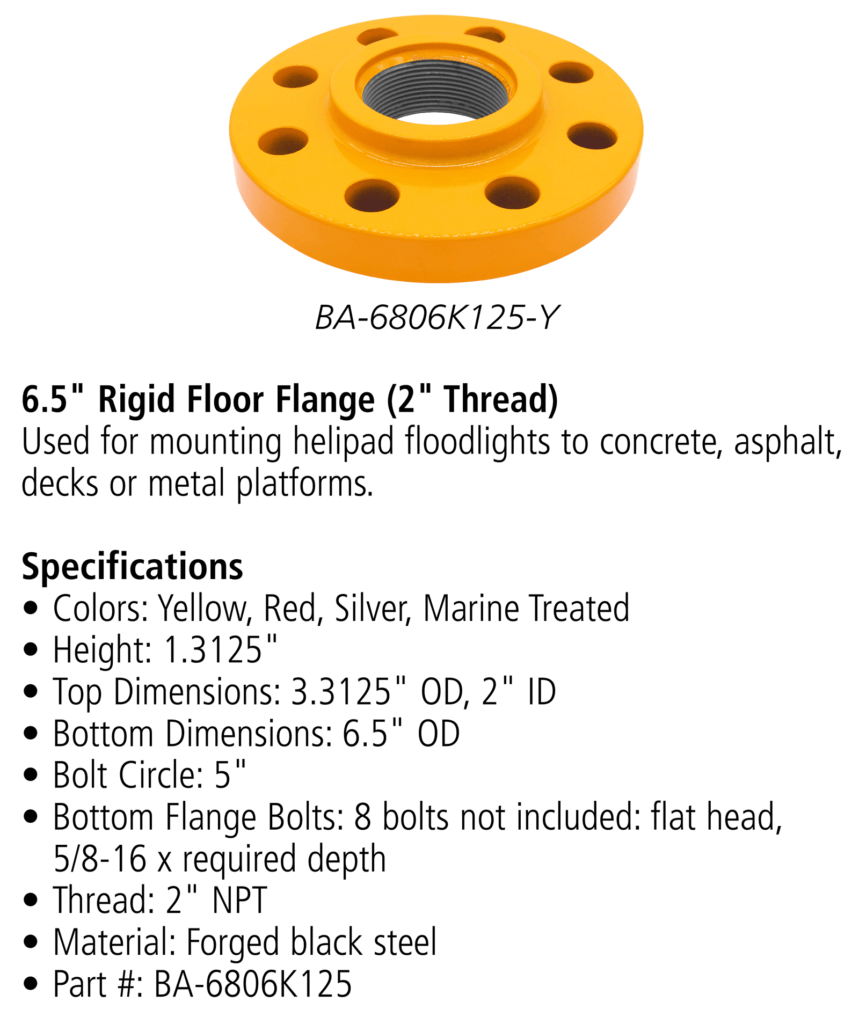

6.5" Rigid Floor Flange (2" Thread)

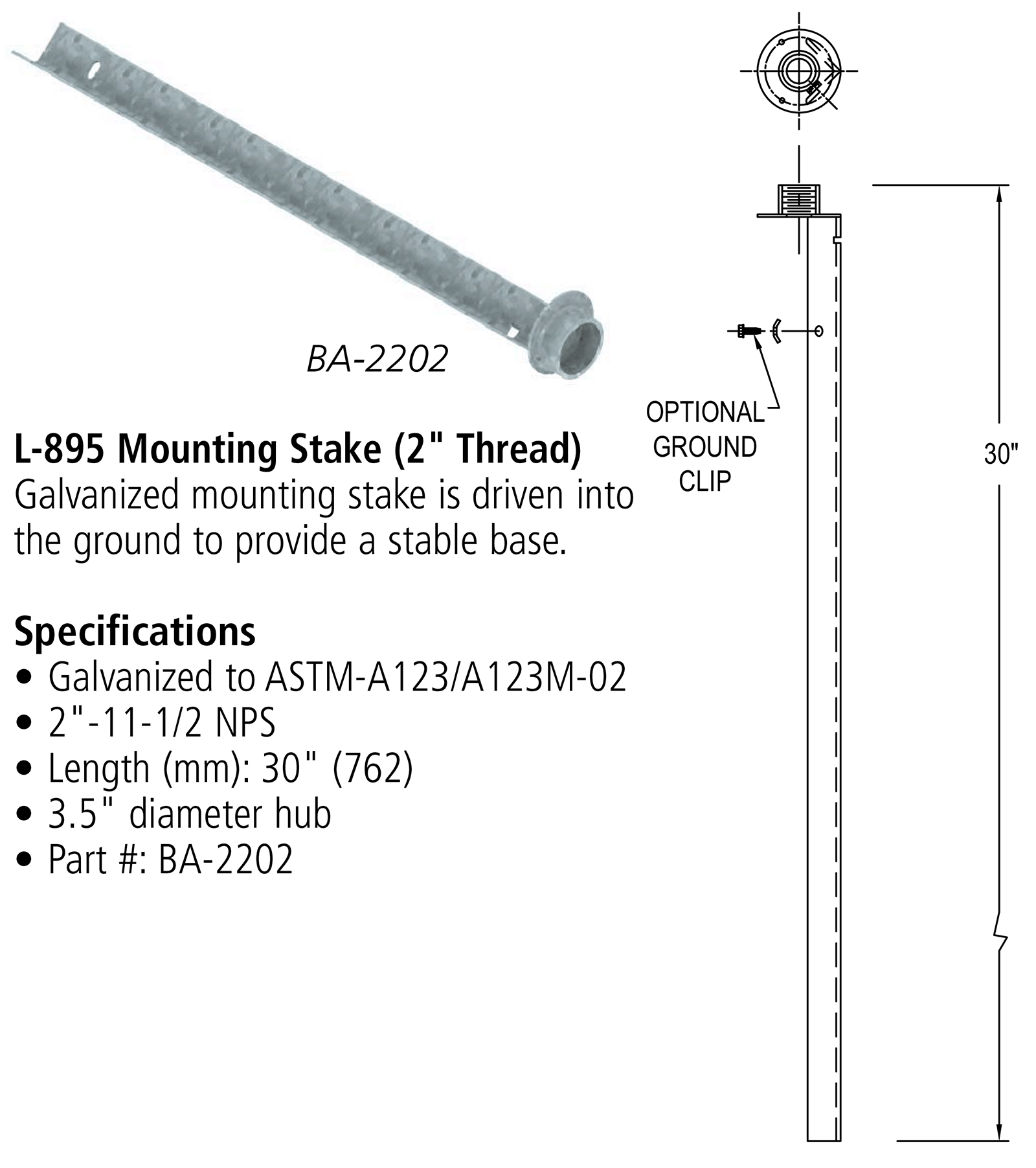

L-895 Mounting Stake (2" Thread)

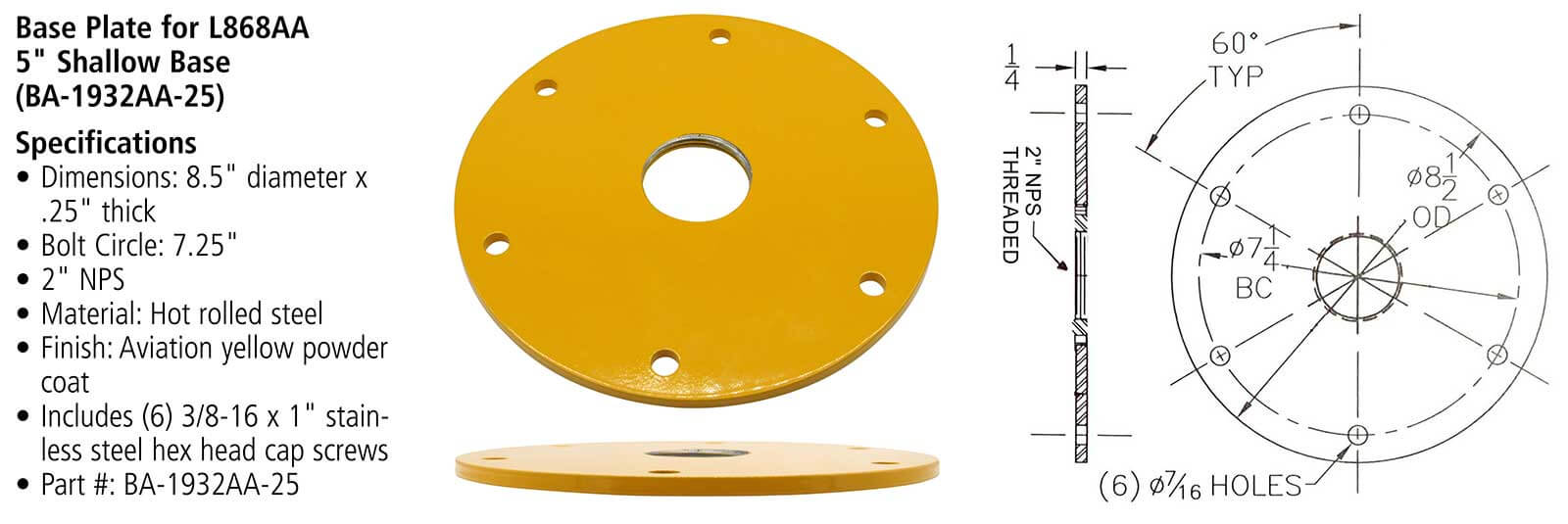

Base Plate for L868AA 5" Shallow Base (BA-1932AA-25)

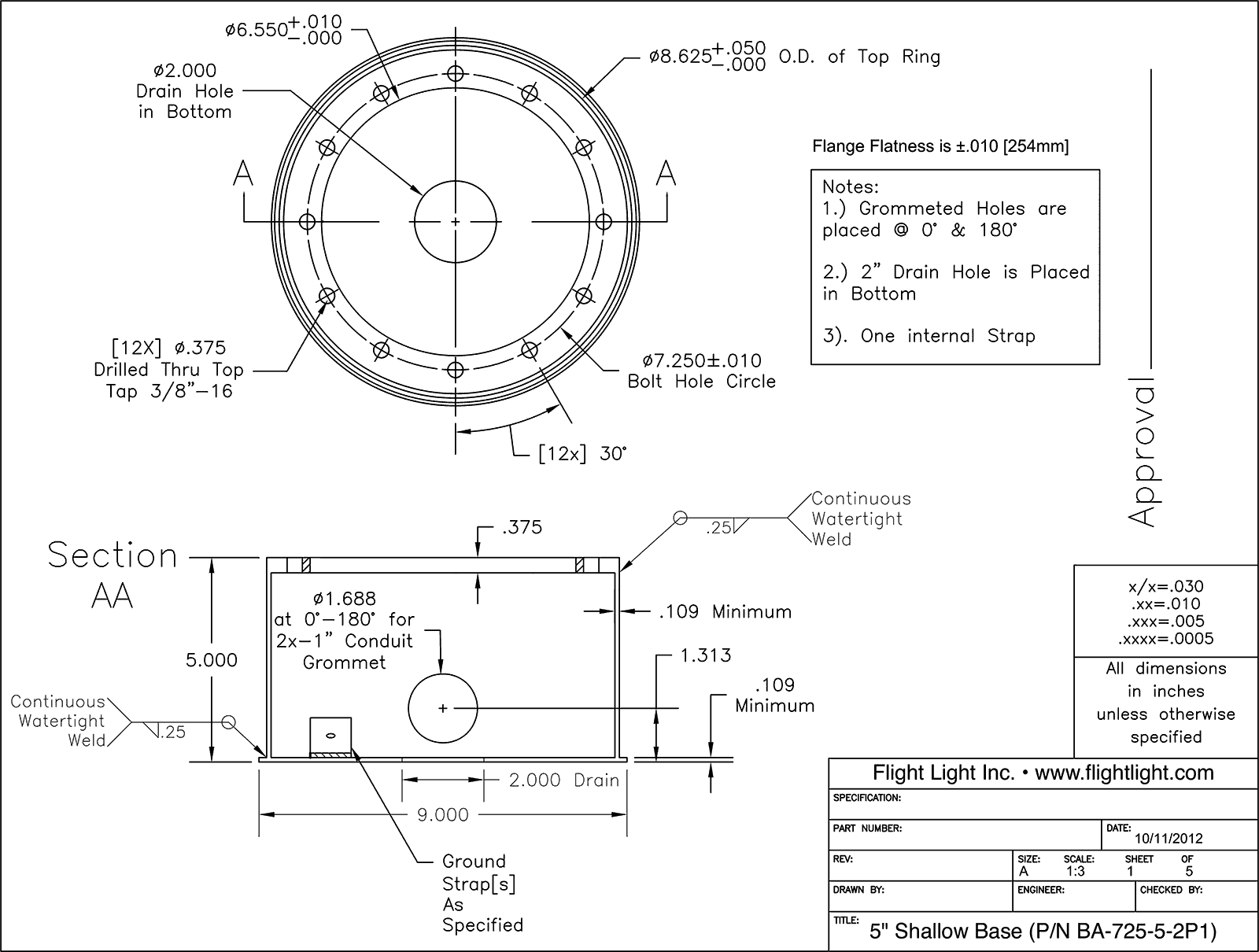

5" Shallow Base (P/N BA-725-5-2P1)
This product is available in our webstore – Shop Now
Applications
Our high power LED floodlight is specially designed for helipads, providing uniform surface lighting for landing and loading activities. The floodlight includes a 2″ anodized aluminum breakable coupling (75-59E) and may be mounted on a base plate, floor flange or stake, sold separately.
Features
• Field adjustable power (140/100W) & color (3000/4000/5000K)
• Die cast aluminum housing with included glare shield
• Precision-crafted optics lens, NEMA 7H x 6V beam spread
• Field adjustable tilt angle maximizes helipad illumination
• Heavy-duty slipfitter and trunnion mount options included
• UL and DLC 5.1 listed, IP65 rated
• Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions
• 3-pin twist lock photocell and shorting cap included with NEMA/ANSI C136.10 3-pin twist lock receptacle
• LED chip lifetime: L70 >100,000 hrs @ 77°F (25°C) ambient fixture temperature
• 0-10V dimming driver with 12V AUX power tap and 6kV surge protection
• Ambient operating temperature: -40°F to 122°F (-40°C to 50°C)
• Power factor: >.95
• THD: <20%
• Height: 21″; Weight: 16.1 lb. (includes glare shield & coupling)
• Warranty: 5 Years
