Heliport LED Floodlight (HL-FLED)
Downloads
Ordering Codes

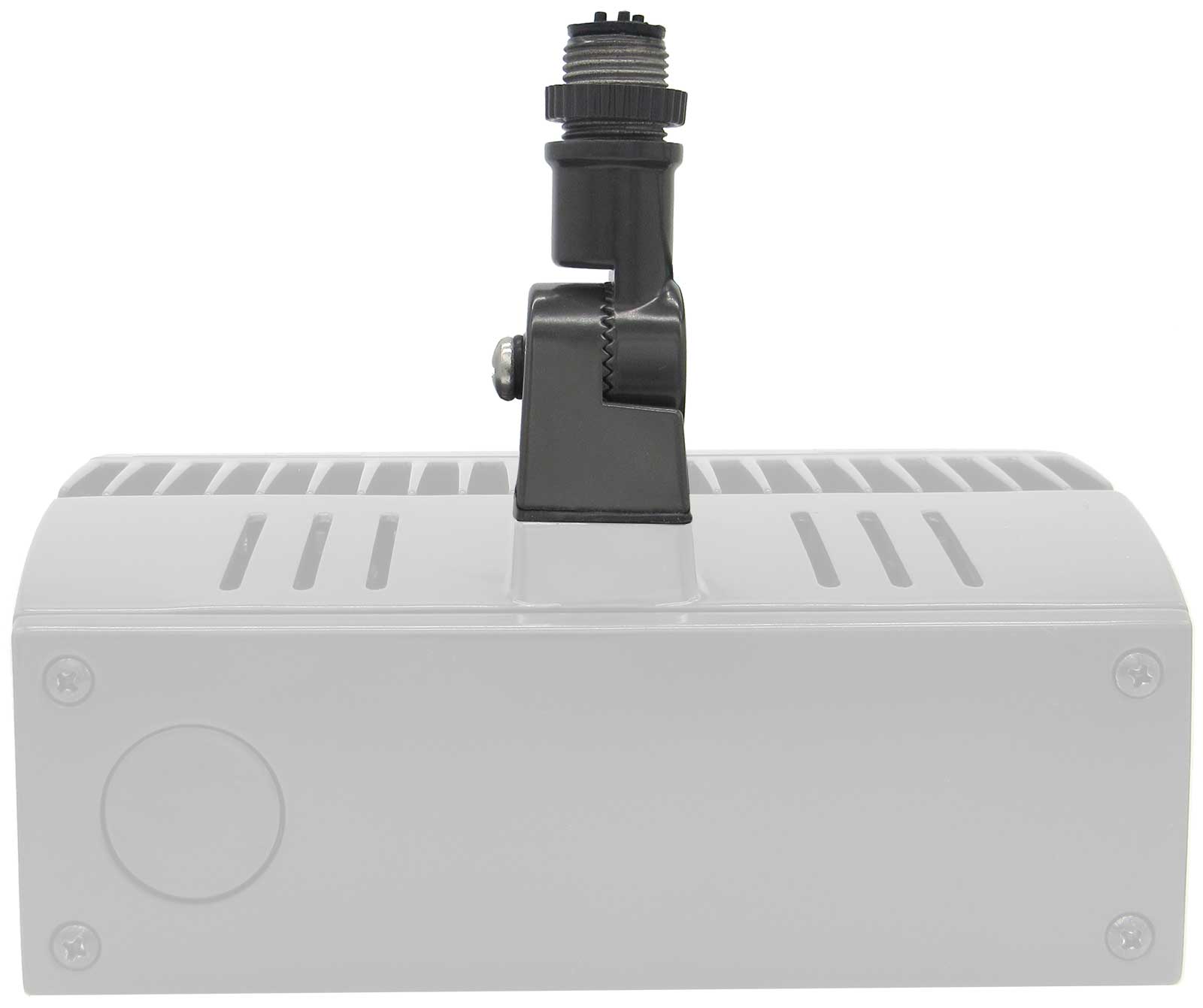

LA-FF18RMA: Black replacement knuckle mount

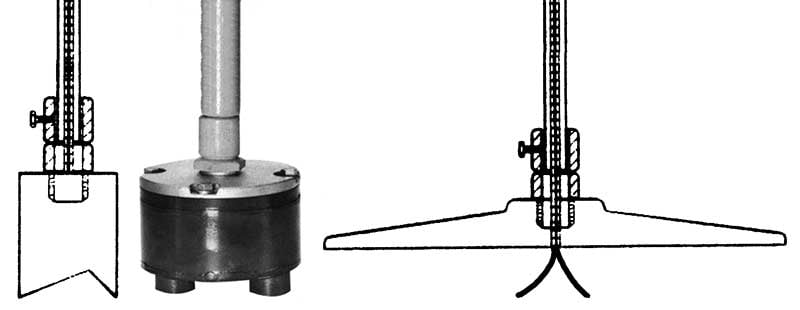

Stake Mounted: 30" Angle-Iron Mounting Stake - sold separately (left); J-Box Mounted: 30-7609 J-Box - sold separately (center); Base Mounted: 8.5" or 12" Base Plate - sold separately (right)

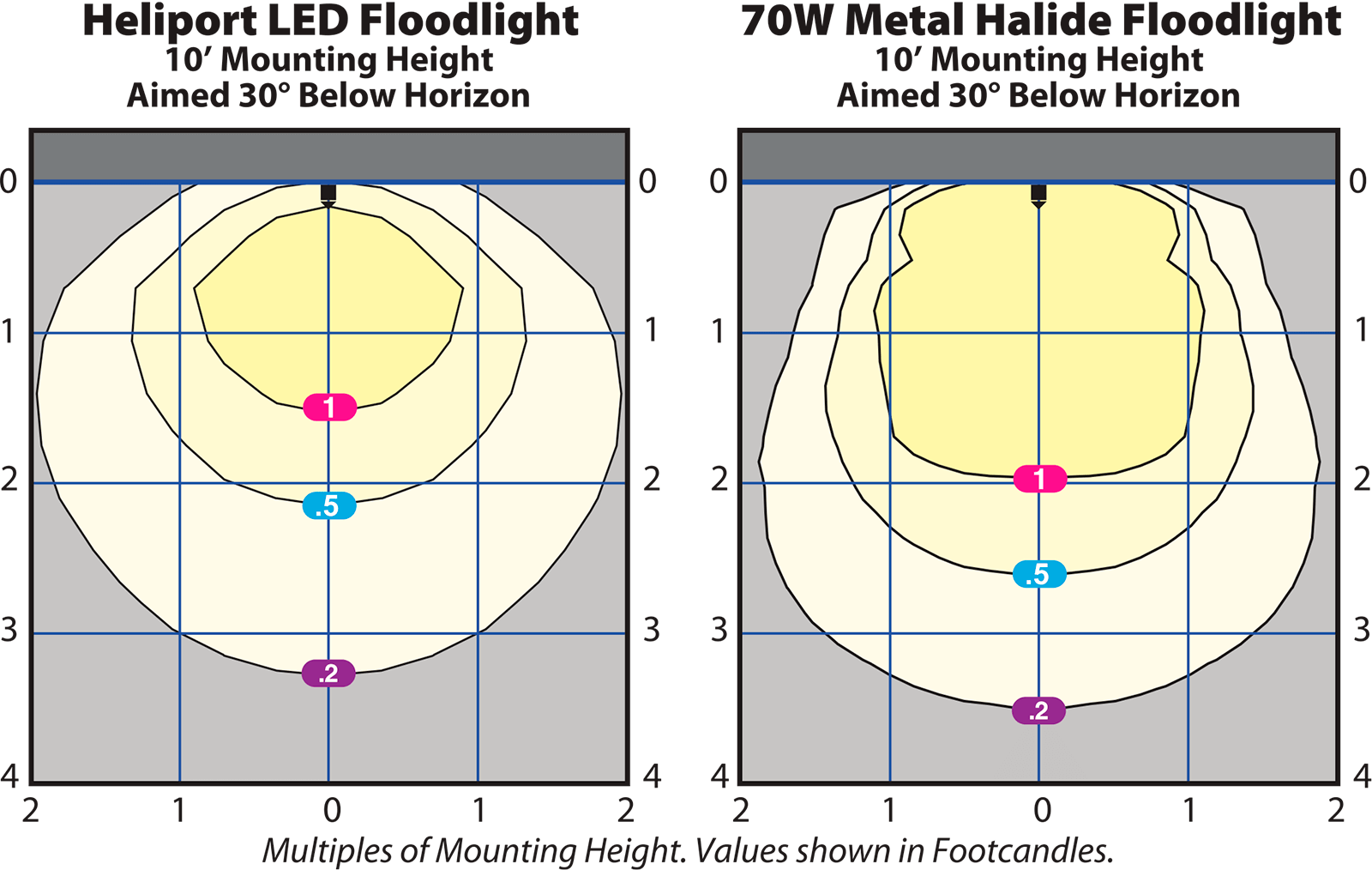

Photometrics
5" Shallow Base (P/N BA-725-5-2P1)
8.50" Base Plate, 7.25" BC (P/N BA-1935AA-25)

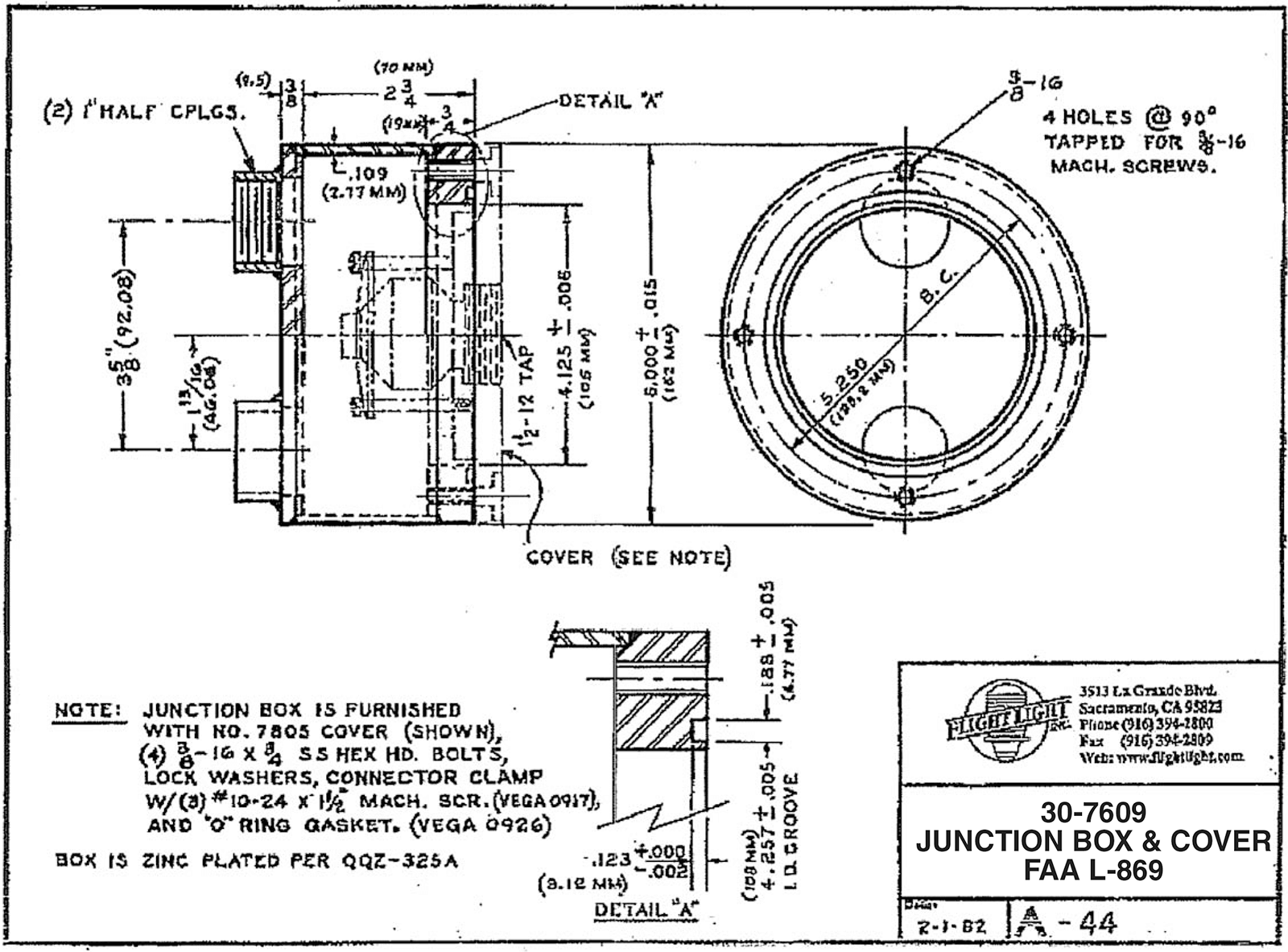

30-7609 Junction Box and Cover (FAA L-869)
This product is available in our webstore – Shop Now

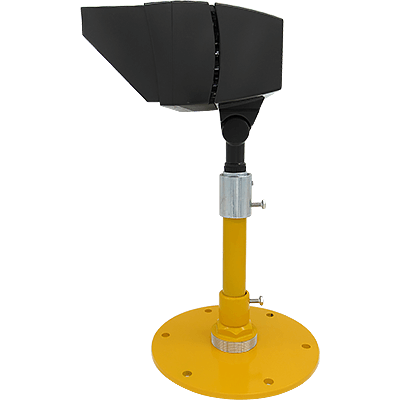

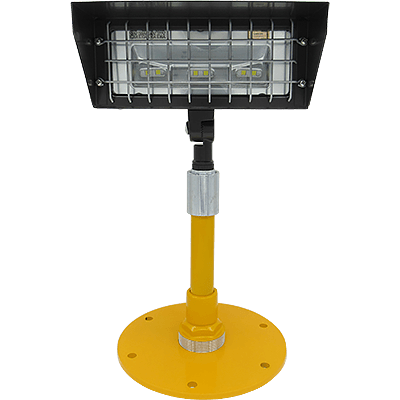

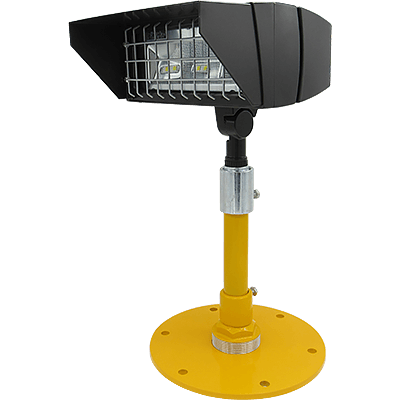

Heliport LED Floodlight
Our LED floodlight is specially designed for helipads, providing uniform surface lighting for landing and loading activities. The floodlight housing mounts on a 1″ EMT extension into a 1.5″ NF aluminum breakable coupling. An optional 2″ NPS breakable coupling is available. This fixture may be mounted on a base plate, junction box or stake, sold separately.
Ordering Codes

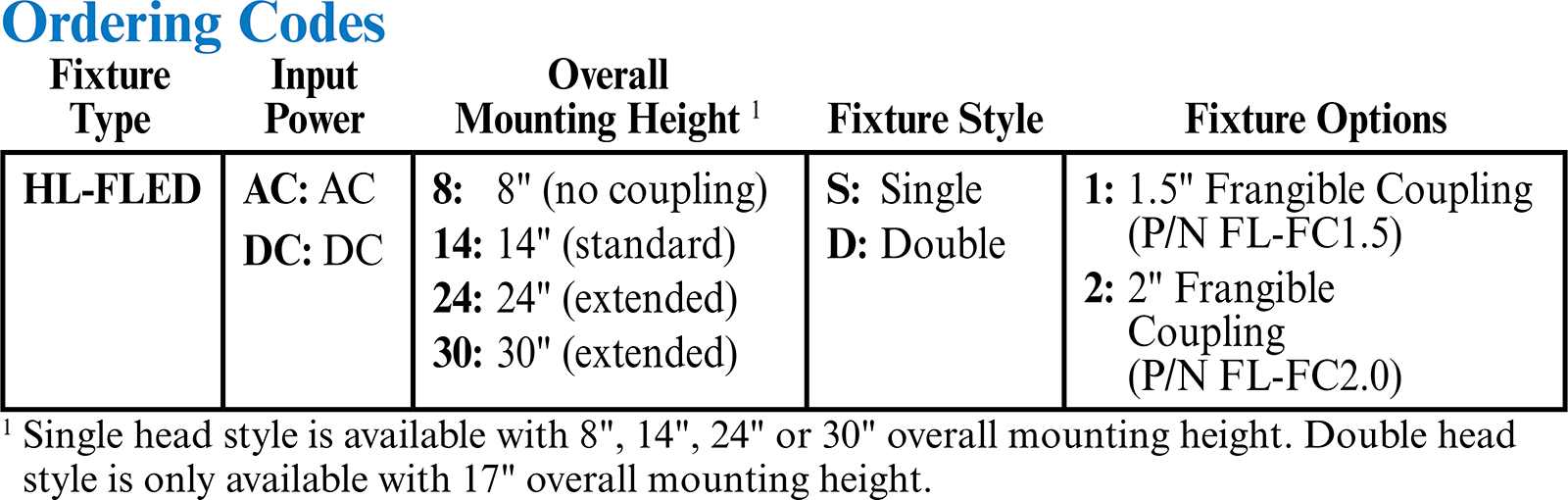

| Fixture Type | Input Power | Overall Mounting Height[1] | Fixture Style | Fixture Options |
|---|---|---|---|---|
| HL-FLED | AC: AC DC: DC |
8: 8″ (no coupling) 14: 14″ (standard) 24: 24″ (extended) 30: 30″ (extended) |

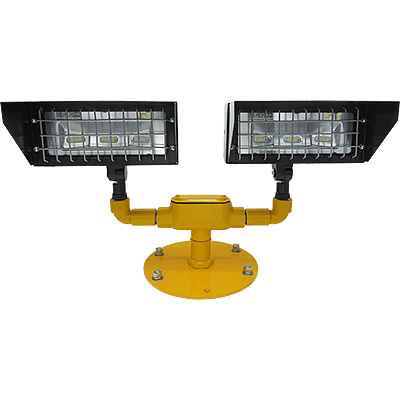

S: Single D: Double |
1: 1.5″ Frangible Coupling (P/N FL-FC1.5) 2: 2″ Frangible Coupling (P/N FL-FC2.0) |
| [1] Single head style is available with 8″, 14″, 24″ or 30″ overall mounting height. Double head style is only available with 17″ overall mounting height. | ||||
Features
• Multi-chip 18 watt, high-output, long-life LEDs.
• Floodlight hood eliminates glare to pilots.
• UL Listed: Suitable for wet locations – mounting within 4′ (1.2M) of the ground (AC model only).
• Bronze chip and fade resistant polyester powder coat finish.
• Precision die-cast aluminum housing, lens frame and mounting arm.
• Heavy-duty mounting arm with O-ring seal and stainless steel screw.
• Heatsink: Die-cast aluminum LED housing designed for maximum heat dissipation.
• Semi-specular anodized aluminum reflector.
• Metal guard to protect the lens.
• High-temperature silicone gaskets.
• Green Technology: Mercury, UV free, no VOCs used for finishing materials.
DC Model
• Low voltage DC for added safety.
• Ideal for solar, off-grid, remote-area lighting applications.
• Up to 85% more energy efficient than line voltage AC solutions.
• No energy loss from DC-AC inverter.
Specifications
• Light Source: 18W LED
• Input Power: AC = 22W, 100-277 VAC; DC = 24W, 10-30 VDC
• Life: 100,000 hours
• Lumens (Initial): 1624
• Lumens Per Watt: 73
• Color Temp.: 5100K
• Finish Color: Bronze
• Housing: Die-Cast Aluminum
• Lamp Dimensions: 7″H x 8.625″W x 5.125″D
• Lamp Weight: 4.8 lb.
• CA Title 24: Compliant
• Warranty: 5 Years
Photometrics Tool
Generate floodlight photometrics with this online tool.
Ordering Codes
LA-FF18RMA: Black replacement knuckle mount
Stake Mounted: 30" Angle-Iron Mounting Stake - sold separately (left); J-Box Mounted: 30-7609 J-Box - sold separately (center); Base Mounted: 8.5" or 12" Base Plate - sold separately (right)
Photometrics
5" Shallow Base (P/N BA-725-5-2P1)
8.50" Base Plate, 7.25" BC (P/N BA-1935AA-25)
30-7609 Junction Box and Cover (FAA L-869)
