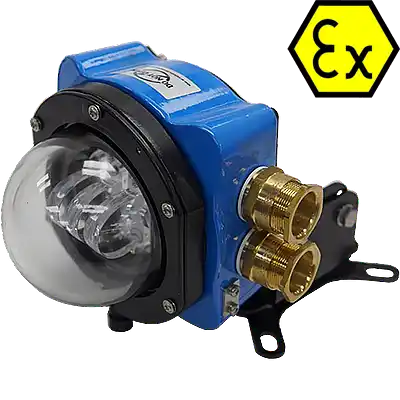

Q-Explosion Proof Helideck Floodlight
Certificates
• CAP437 Certificate
• ICAO Certificate
• IP67
• CE Certificate
• RoHS Certificate
• Ex Certificate
• IECEx Certificate
Applications
The Q-Explosion Proof Helideck Floodlight is a CAP437 compliant 5,000 cd floodlight for hazardous areas and is available in several configurations such as 100-240 VAC and 24 VDC.

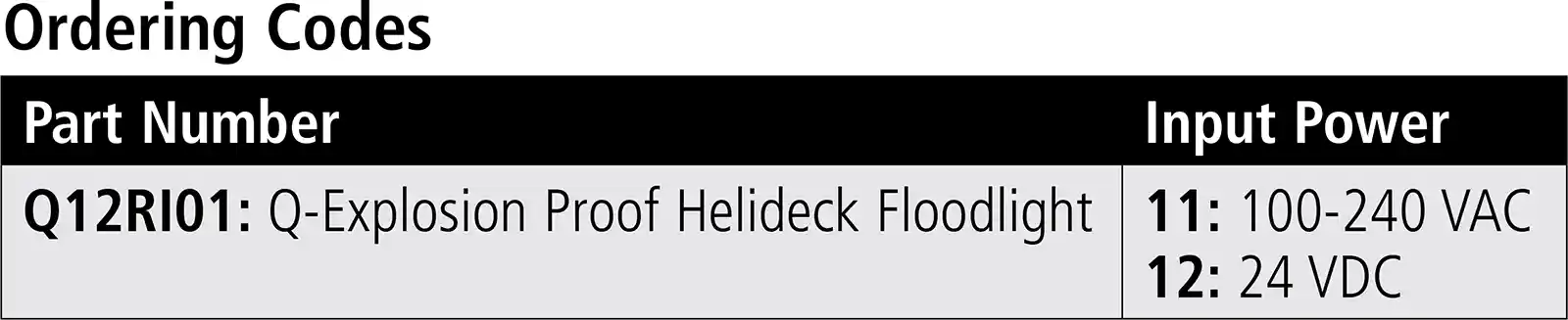

Ordering Codes
| Part Number | Input Power |
|---|---|
| Q12RI01: Q-Explosion Proof Helideck Floodlight | 11: 100-240 VAC 12: 24 VDC |
Technical Specifications
• Application: Helideck
• Hazardous Area: Zone 1 and 2
• Classification: Class 1 and 2
• Light Source: LED, steady burning
• Light Color: White (5700K)
• Light Intensity: 5,000 cd
• Vertical Beam Profile: as per CAP437/ICAO
• Color Chromaticity: as per CAP437/ICAO, 5700K
• Enclosure: Aluminum, powder coated (RAL 5015) / borosilicate glass
• Mounting: Rigid, 4 x M8
• Input Voltage: 1) 100-240 VAC, 50-60 Hz; 2) 24 VDC
• External Earthing: up to 4mm2 / AWG 12
• Ambient Temperature: -13° to +140° F (-25° to +60° C)
• In Compliance With: CAP437
• Cable Glands Included: 2 x M25x1.5
• Cable Stops Included: 1 x M25x1.5
• Cable Outer Dimension: 12 – 19mm
• Consumption: 6 Watt
• Life Expectancy: 100,000+ hours
• Cable Type: H07RN-F 3×2, 5mm2
• Warranty: 2 Years
• IP Index: IP 67
• Weight: 9.26 lb. (4.2 kg)

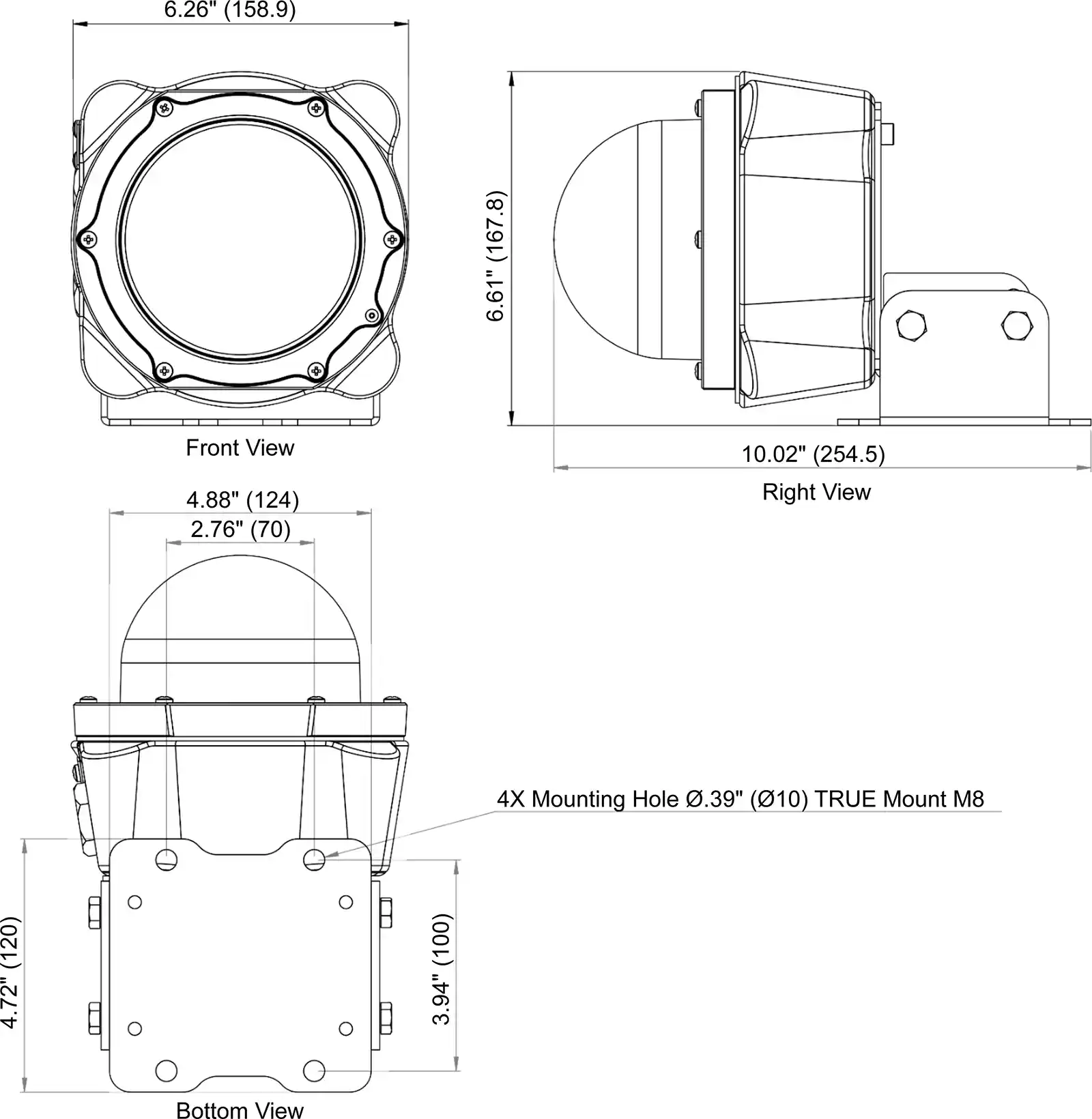

• Dimensions: 10.04″ x 6.26″ x 6.61″ (255x159x168mm) (LxWxH)
• Packaging Dimension: 9.84″ x 9.84″ x 9.84″ (250x250x250mm) (LxWxH)
Certification
Explosion Proof Floodlight
Atex Certificate: ITS18ATEX103970X
IECEX Certificate: IECEx ITS 18.0052X
Ex II 2 G Ex db op is IIC T6 Gb
Ex d IIC T6
Cable Gland (2 x Included)
Atex Certificate: SIRA13ATEX1068X, SIRA13ATEX4074X
IECEX Certificate: IECEx SIR 13.0023X, IECEx SIM 14.0006
Ex II 2G, II 1D Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da
Ex II 3G Ex nR IIC Gc I M2 Ex d I Mb, Ex e I Mb
Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex d I Mb, Ex e I Mb
Cable Stop (1 x Included)
Atex Certificate: SIRA13ATEX1265X
IECEX Certificate: IECEx SIR 13.0094X, IECEx SIM 15.0002X
Ex II 2G Ex d IIC Gb, Ex e IIC Gb, II 1D Ex ta IIIC Da
Ex IM2 Ex d I Mb, Ex e I Mb
Ex d I Mb, Ex e I Mb; Ex d IIC Gb,Ex e IIC Gb, Ex ta IIIC Da
