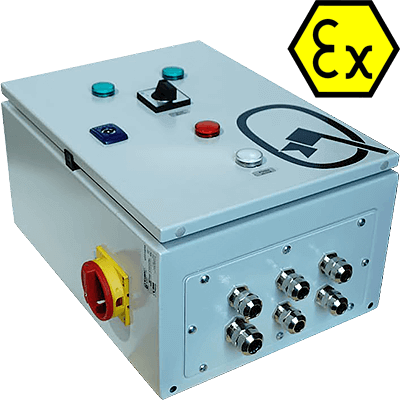

Q-Aircraft Warning Light Controller
Applications
Our custom made aircraft warning light controller can come in many different variants.

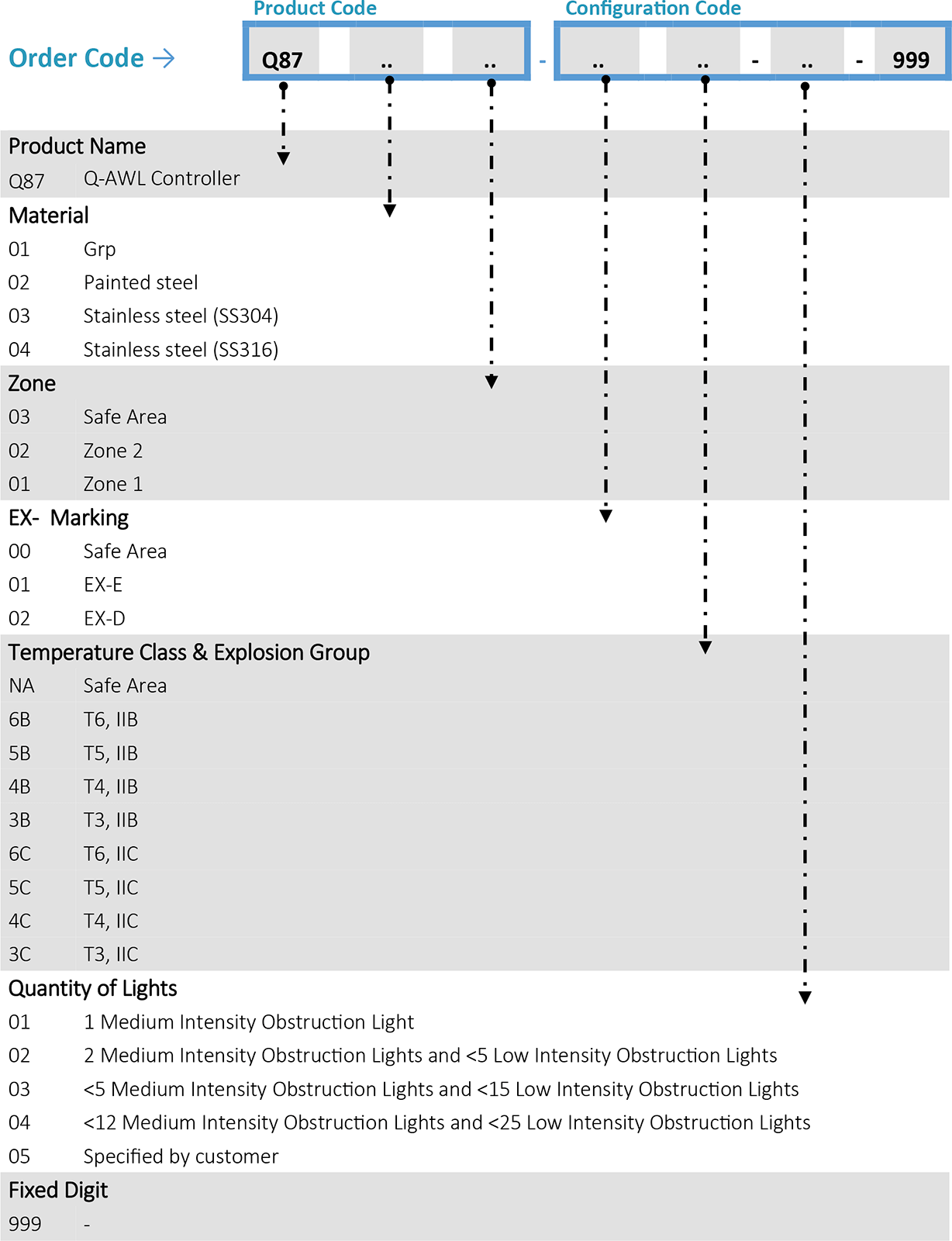

Ordering Codes
| Product Name | Material | Zone | EX- Marking | Temperature Class & Explosion Group | Quantity of Lights | Fixed Digit |
|---|---|---|---|---|---|---|
| Q87: Q-AWL Controller | 01: Grp 02: Painted steel 03: Stainless steel (SS304) 04: Stainless steel (SS316) |
03: Safe Area 02: Zone 2 01: Zone 1 |
00: Safe Area 01: EX-E 02: EX-D |
NA: Safe Area 6B: T6, IIB 5B: T5, IIB 4B: T4, IIB 3B: T3, IIB 6C: T6, IIC 5C: T5, IIC 4C: T4, IIC 3C: T3, IIC |
01: 1 Medium Intensity Obstruction Light 02: 2 Medium Intensity Obstruction Lights and <5 Low Intensity Obstruction Lights 03: <5 Medium Intensity Obstruction Lights and <15 Low Intensity Obstruction Lights 04: <12 Medium Intensity Obstruction Lights and <25 Low Intensity Obstruction Lights 05: Specified by customer |
999: – |
Technical Specifications
• Product Code: Q87WM0x
• Classification: Safe Area
• IP-Index: IP66
• Enclosure: Steel with powdercoat.
• Mounting: Wall mount
• Input Voltage: 100-240 Vac
• Cable: H07RN-F 3×1
• Output Voltage: As per type of light
Enclosure Specifications

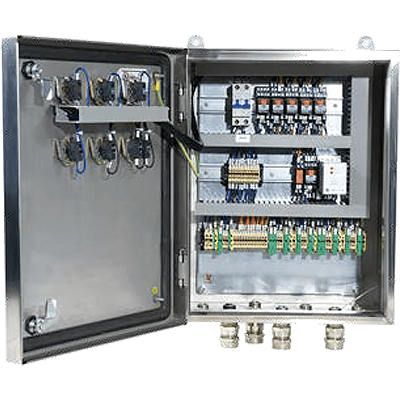

According to the installation environment, control board electrical circuits are enclosed in specific housing box:
• Usage: indoor or outdoor
• Material: grp, painted steel, stainless steel
• Protection: from IP55 to IP66
• Flash: Synced via GPS in light or via controller
Control Board Functions
• Photoelectric Switch: As per option
• Fault Management: Automatic by switchover
• Alarm Management: Remote transmission of alarms, generation of visual alarms
