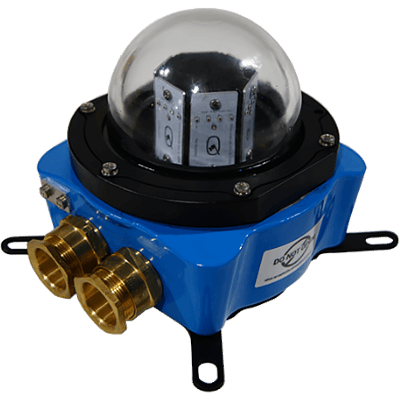

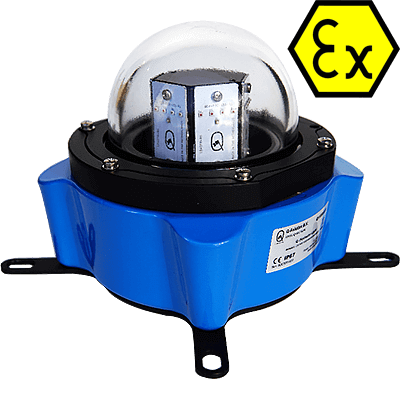

Q-Explosion Proof Perimeter Light

Certificates

• CAP437 Certificate
• ICAO Certificate
• IP67
• CE Certificate
• RoHS Certificate
• Ex Certificate
• IECEx Certificate

Applications

The Q-Explosion Proof Perimeter Light is a CAP437 compliant (50 cd) fixture for hazardous areas (up to zone 1) at offshore facilities. The fixture is available in several configurations such as 100-240 VAC and 24 VDC.

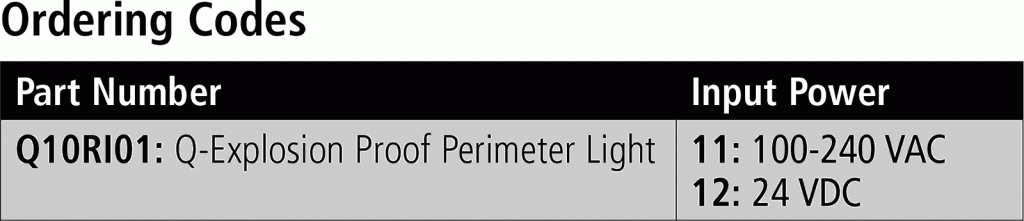

Ordering Codes

Technical Specifications

• Application: Helideck
• Hazardous Area: Zone 1 and 2
• Classification: Class 1 and 2
• Light Source: LED, steady burning
• Light Color: Green, 530nm
• Light Intensity: 50 cd
• Vertical Beam Profile: as per CAP437/ICAO
• Color Chromaticity: as per CAP437/ICAO
• Enclosure: Aluminum, powder coated
• Mounting: Rigid, 4x M8
• Input Voltage: 1) 100-240 VAC, 50-60 Hz; 2) 24 VDC
• External Earthing: up to 4mm²
• Ambient Temp: -13°F to +140°F (-25° to +60° C)
• In Compliance With: CAP437/ ICAO
• Cable Glands Included: 2 x M25x1.5
• Cable Stops Included: 1 x M25x1.5
• Cable Outer Dimension: 11.1 – 20.0mm
• Consumption: 24 Watt
• Life Expectancy: 100,000+ hours
• IP Index: IP 67
• Weight: 4.85 lb. (2.20 kg)

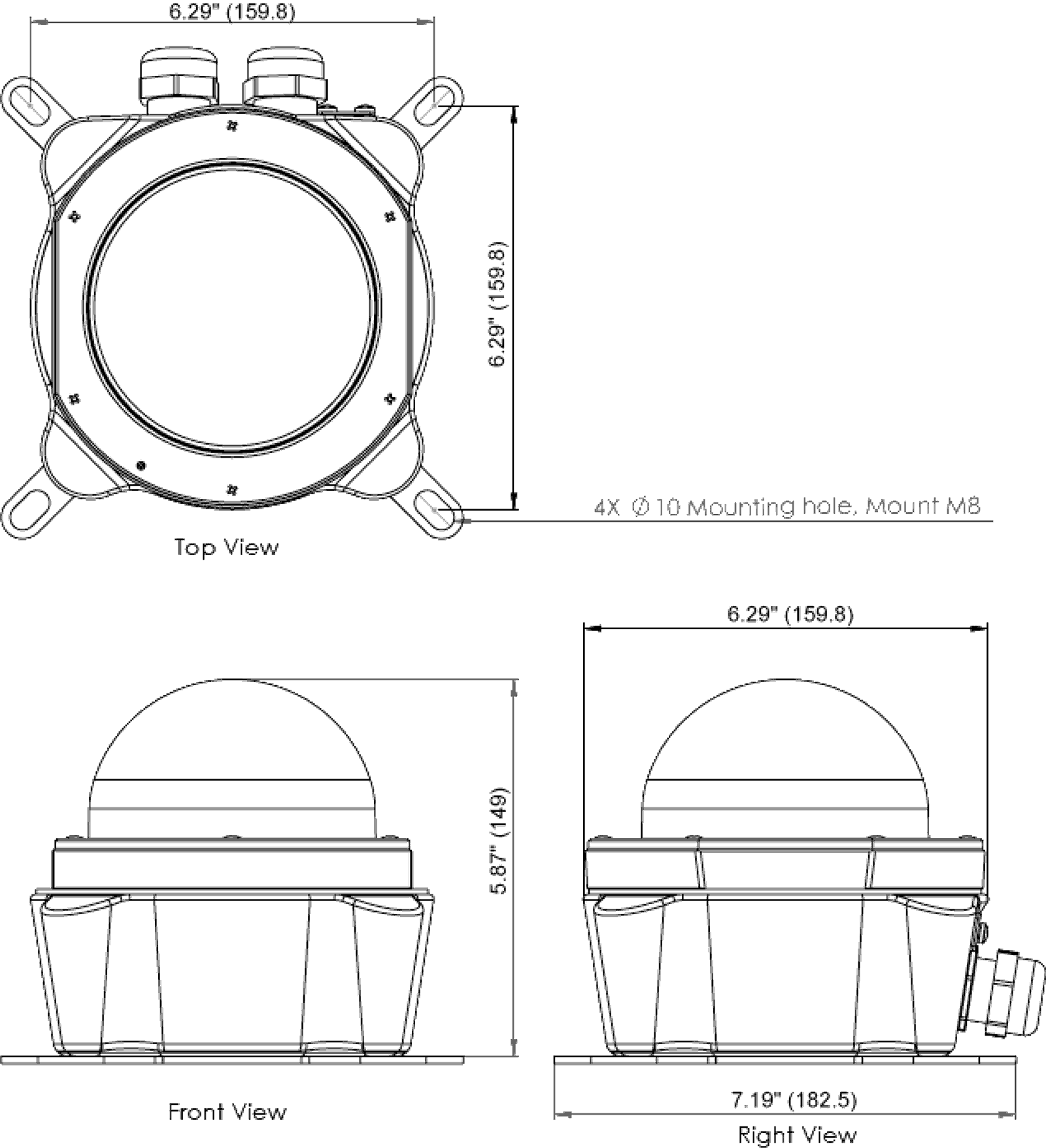

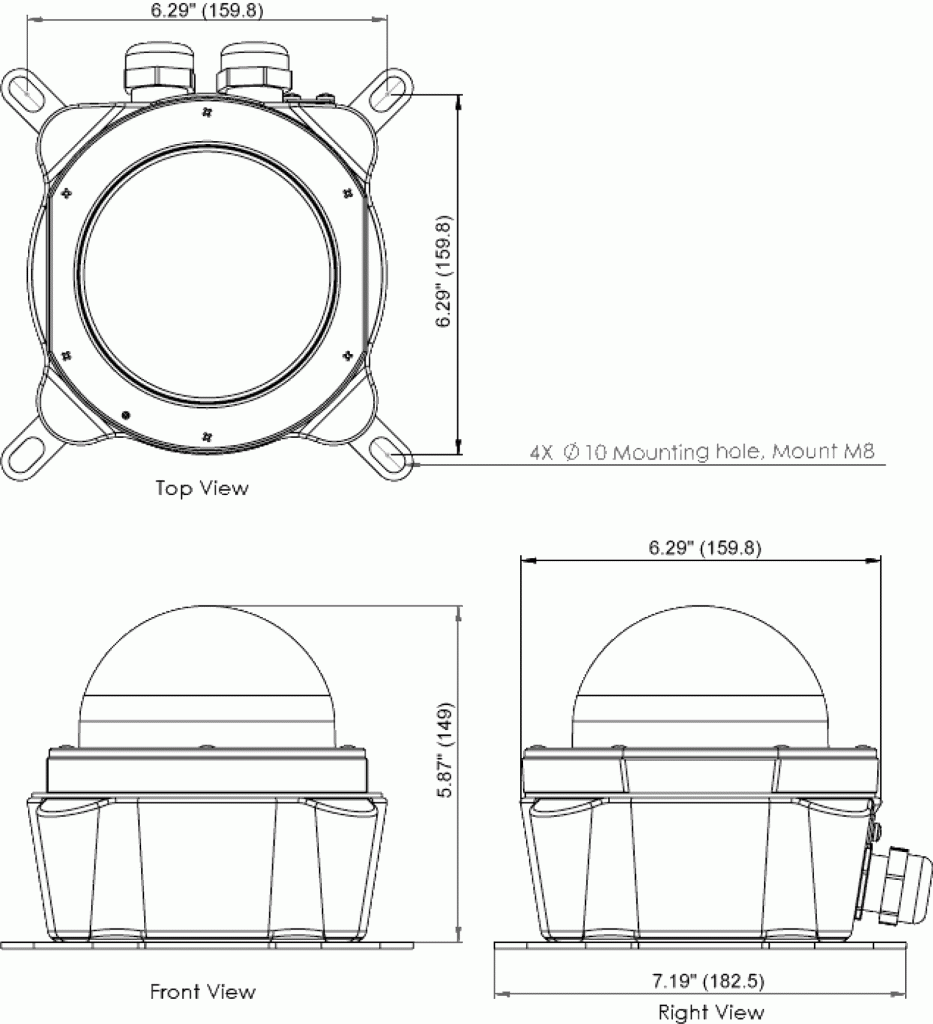

• Dimensions: 7.2″ x 7.2″ x 6.1″ (183x183x155mm) (LxWxH)
• Packaging Dimension: 7.87″ x 7.87″ x 7.87″ (200x200x200mm) (LxWxH)

Certification

Explosion Proof Perimeter Light
Atex Certificate: ITS18ATEX103970X
IECEX Certificate: IECEx ITS 18.0052X
Ex II 2 G Ex db op is IIC T6 Gb
Ex d IIC T6

Cable Gland (2 x included)
Atex Certificate: SIRA13ATEX1068X, SIRA13ATEX4074X
IECEX Certificate: IECEx SIR 13.0023X, IECEx SIM 14.0006
Ex II 2G, II 1D Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da
Ex II 3G Ex nR IIC Gc I M2 Ex d I Mb, Ex e I Mb
Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex d I Mb, Ex e I Mb

Cable Stop (1 x included)
Atex Certificate: SIRA13ATEX1265X
IECEX Certificate: IECEx SIR 13.0094X, IECEx SIM 15.0002X
Ex II 2G Ex d IIC Gb, Ex e IIC Gb, II 1D Ex ta IIIC Da
Ex IM2 Ex d I Mb, Ex e I Mb
Ex d I Mb, Ex e I Mb; Ex d IIC Gb,Ex e IIC Gb, Ex ta IIIC Da
