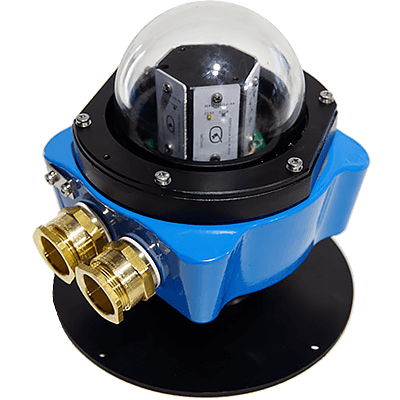

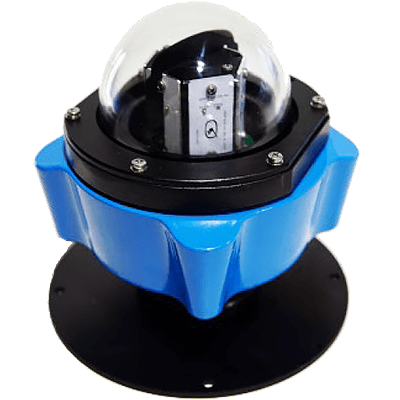

Q-Helipad Approach Light (FATO)

Certificates

• ICAO Certificate
• IP67
• CE Certificate
• RoHS Certificate

Applications

The Q-Helipad Approach Light (FATO) is an ICAO compliant 55 cd approach light for all helipad and heliport facilities. The Q-Helipad Approach Light is available in several configurations such as 100-240 VAC and 24 VDC.

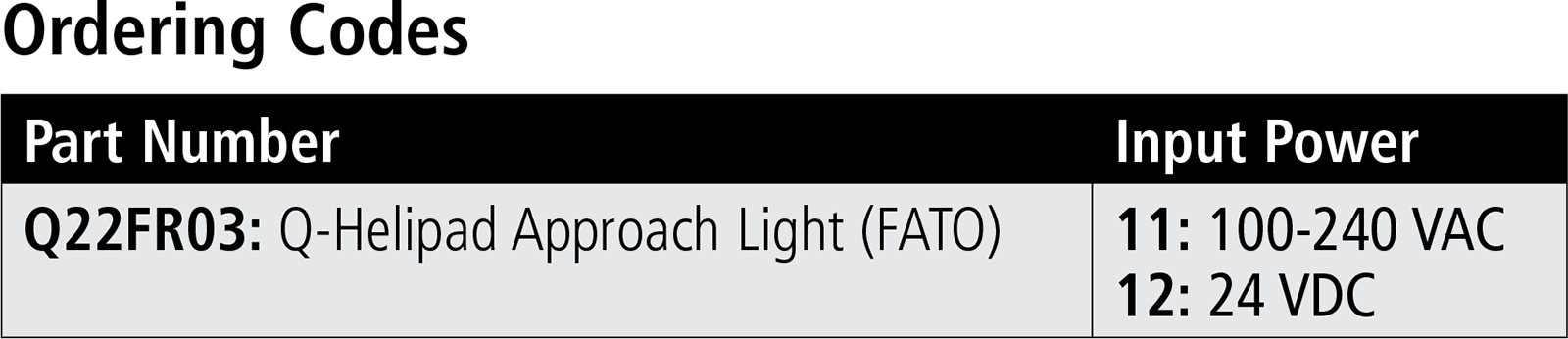

Ordering Codes

Technical Specifications

• Application: Helipad/Heliport
• Classification: Safe Area
• Light Source: LED, steady burning
• Light Color: White, 6000K
• Light Intensity: 55 cd
• Vertical Beam Profile: as per ICAO
• Color Chromaticity: as per ICAO, 6000K
• Enclosure: Aluminum, powder coated

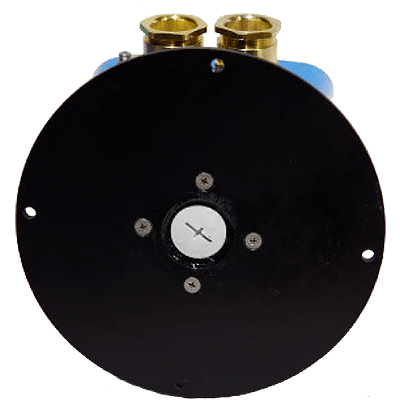

• Mounting: Frangible, 4 xM8
• Input Voltage: 1) 100-240 VAC, 50-60 Hz; 2) 24 VDC
• External Earthing: up to 4mm²
• Ambient Temp: -13°F to +149°F (-25°C to +65°C)
• In Compliance With: ICAO, Annex 14 vol 2
• Cable Glands Included: 2 x M25x1.5
• Cable Stops Included: 1 x M25x1.5
• Cable Outer Dimension: 11.1 – 20.0 mm
• Consumption: 6 Watt
• Life Expectancy: 100,000+ hours
• IP Index: IP 67
• Weight: 5.29 lb. (2.40 kg)

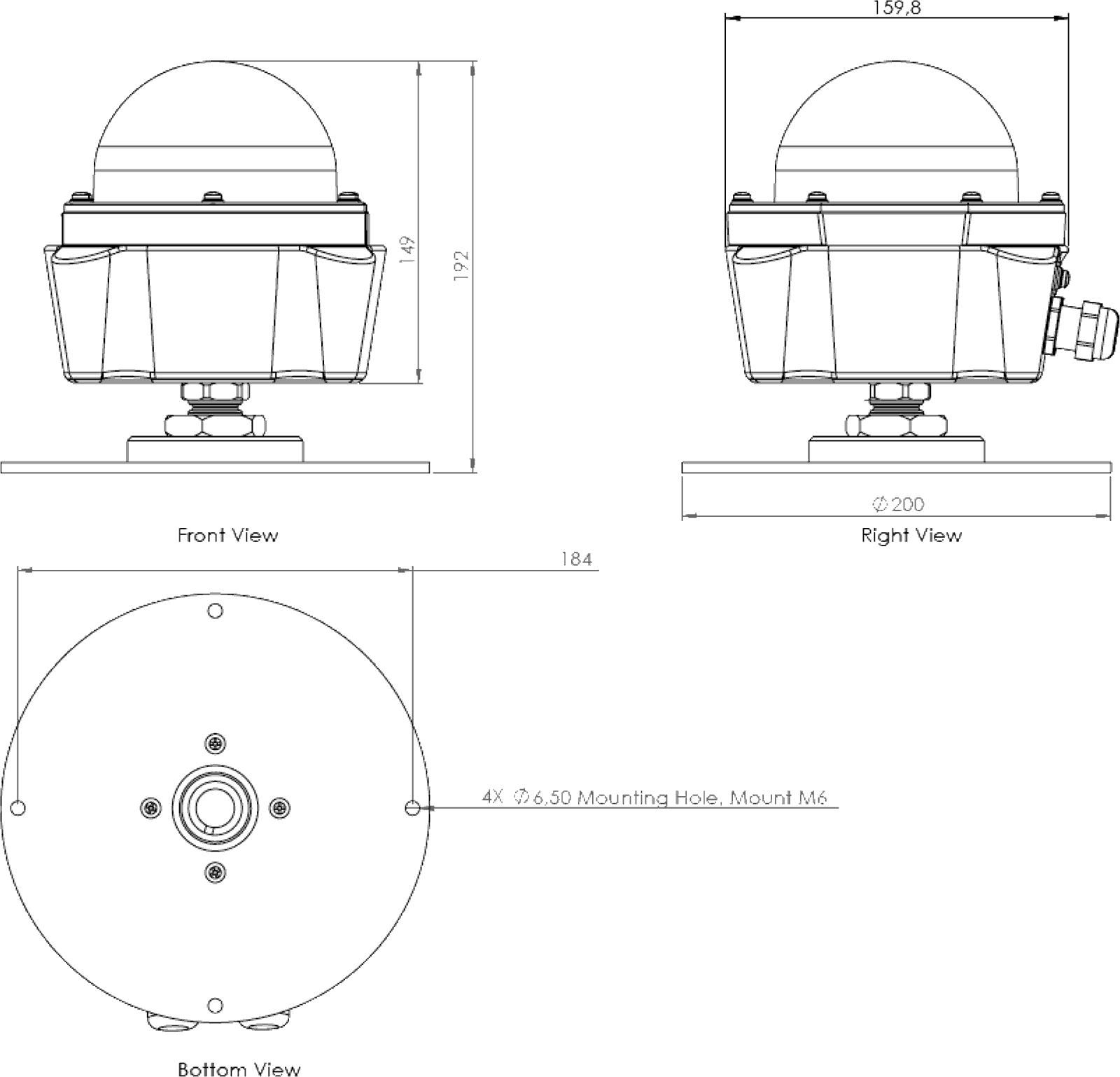

• Dimensions: 7.2″ x 7.2″ x 6.4″ (183x183x162mm) (LxWxH)
• Packaging Dimension: 7.87″ x 7.87″ x 7.87″ (200x200x200mm) (LxWxH)
