Avlite Accessories

Avlite Frangible Mounting Kits

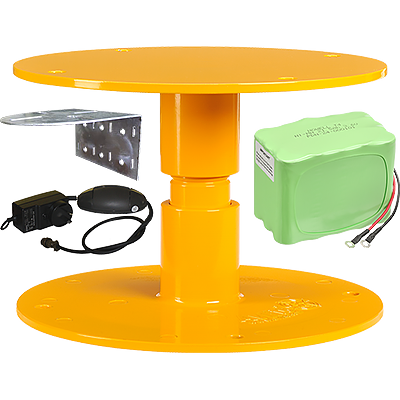

Avlite’s mounting accessories include mounting plates (for light bases), threaded frangible (breakaway) couplings (or columns), ground mounting stakes, nonslip tiles and related hardware.

AV-70

Frangible Concrete Mounting Kits

Product	Part Number	Components
Frangible Concrete Mounting Kit (5 Inch Frangible Column)	AV-MC-70-FCM-05	(2x) AV-MC-70-LP: Flat mounting plates AV-MC-70-FC-05: Frangible column (5 inch) AV-MC-17: Concrete wedge bolt kit AV-MC-63 Bolt Kit: (4x) M8x40SC bolts, washers, nuts
Frangible Concrete Mounting Kit (7 Inch Frangible Column)	AV-MC-70-FCM-07	(2x) AV-MC-70-LP: Flat mounting plates AV-MC-70-FC-07: Frangible column (7 inch) AV-MC-17: Concrete wedge bolt kit AV-MC-63 Bolt Kit: (4x) M8x40SC bolts, washers, nuts
Frangible Concrete Mounting Kit (12 Inch Frangible Column)	AV-MC-70-FCM-12	(2x) AV-MC-70-LP: Flat mounting plates AV-MC-70-FC-12: Frangible column (12 inch) AV-MC-17: Concrete wedge bolt kit AV-MC-63 Bolt Kit: (4x) M8x40SC bolts, washers, nuts

Frangible Stake Mounting Kits

Product	Part Number	Components
Frangible Stake Mounting Kit (5 Inch Column/12 Inch Stake)	AV-MC-70-FSM-05-12	AV-MC-8343: Flat mounting plate AV-MC-70-GS-12: Mounting stake (12 inch) AV-MC-70-FC-05: Frangible column (5 inch) AV-MC-63 Bolt Kit: (4x) M8x40SC bolts, washers, nuts
Frangible Stake Mounting Kit (5 Inch Column/30 Inch Stake)	AV-MC-70-FSM-05-30	AV-MC-8343: Flat mounting plate AV-MC-70-GS-30: Mounting stake (30 inch) AV-MC-70-FC-05: Frangible column (5 inch) AV-MC-63 Bolt Kit: (4x) M8x40SC bolts, washers, nuts
Frangible Stake Mounting Kit (7 Inch Column/12 Inch Stake)	AV-MC-70-FSM-07-12	AV-MC-8343: Flat mounting plate AV-MC-70-GS-12: Mounting stake (12 inch) AV-MC-70-FC-07: Frangible column (7 inch) AV-MC-63 Bolt Kit: (4x) M8x40SC bolts, washers, nuts
Frangible Stake Mounting Kit (7 Inch Column/30 nch Stake)	AV-MC-70-FSM-07-30	AV-MC-8343: Flat mounting plate AV-MC-70-GS-30: Mounting stake (30 inch) AV-MC-70-FC-07: Frangible column (7 inch) AV-MC-63 Bolt Kit: (4x) M8x40SC bolts, washers, nuts

Frangible Tile Mounting Kits (Note: Tile sold separately)

Product	Part Number	Components
Frangible Tile Mounting Kit (5 Inch Column)	AV-MC-70-FTM-05	(2x) AV-MC-70-LP: Flat mounting plates AV-MC-70-FC-05: Frangible column (5 inch) AV-MC-63 Bolt Kit: (4x) M8x40SC bolts, washers, nuts
Frangible Tile Mounting Kit (7 Inch Column)	AV-MC-70-FTM-07	(2x) AV-MC-70-LP: Flat mounting plates AV-MC-70-FC-07: Frangible column (7 inch) AV-MC-63 Bolt Kit: (4x) M8x40SC bolts, washers, nuts
Frangible Tile Mounting Kit (12 Inch Column)	AV-MC-70-FTM-12	(2x) AV-MC-70-LP: Flat mounting plates AV-MC-70-FC-12: Frangible column (12 inch) AV-MC-63 Bolt Kit: (4x) M8x40SC bolts, washers, nuts
Mounting Tile	AV-MC-Tile	11 lb non-skid rubber tile

AV-426

Frangible Concrete Mounting Kits

Product	Part Number	Components
Frangible Concrete Mounting Kit	AV-MC-426-FCM	AV-MC-426-LP: Flat mounting plate AV-MC-902: Threaded floor flange (2 inch) AV-MC-59-E: Threaded frangible column AV-MC-63 Bolt Kit: (4x) M8x40SC bolts, washers, nuts

Frangible Stake Mounting Kit

Product	Part Number	Components
Frangible Stake Mounting Kit	AV-MC-426-FSM	AV-MC-426-LP: Flat mounting plate AV-MC-59-E: Threaded frangible coupling (2 in) AV-MC-426-GS: Mounting stake (30 inch) AV-MC-63 Bolt Kit: (4x) M8x40SC bolts, washers, nuts

Accessories

Tool Kits (Suitable for AV-70 and AV-426)

Product	Part Number	Components

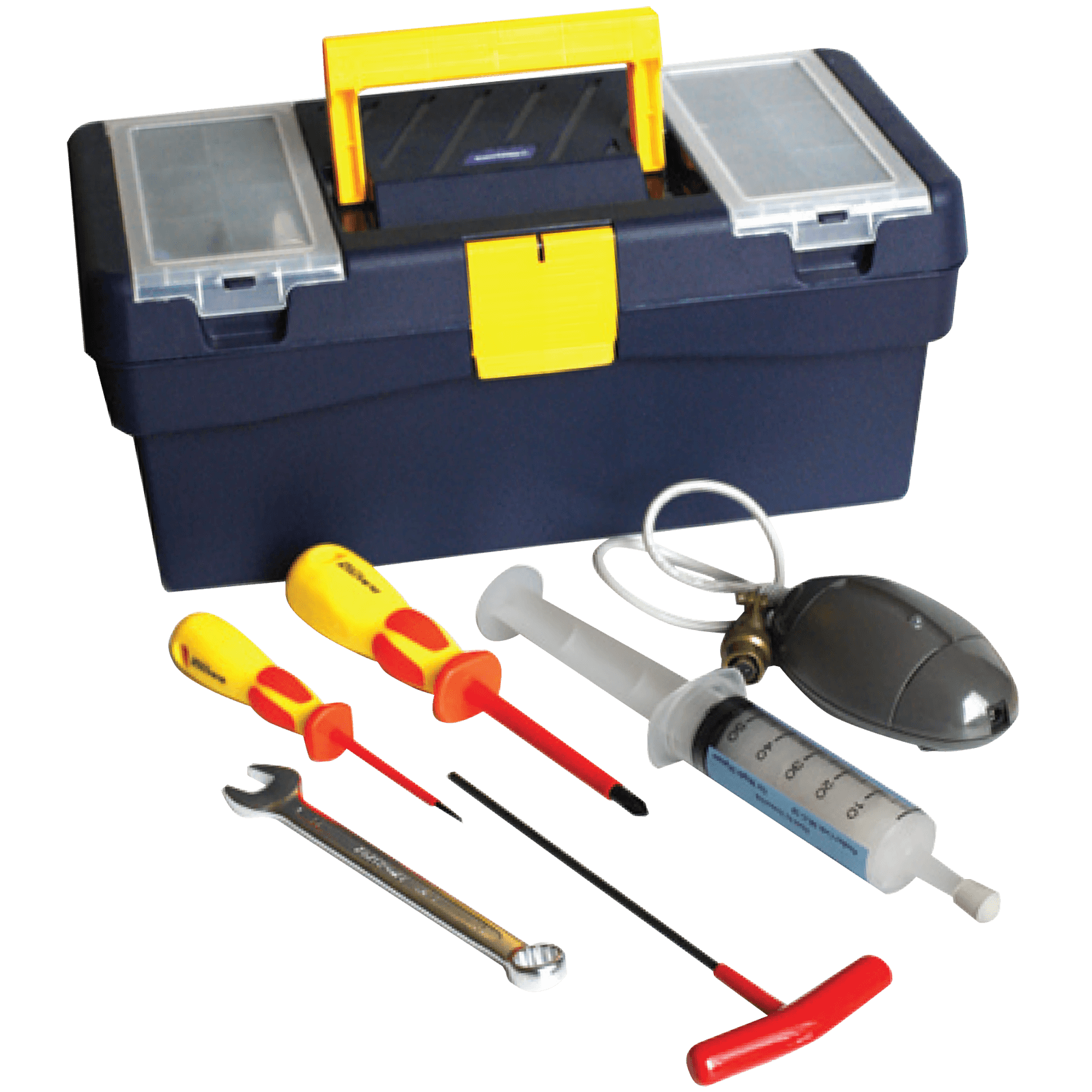

Standard Tool Kit	AV-T-11	(1) Polycarbonate Tool Box (1) Small Flat Bladed Screwdriver (1) Phillips Head Screwdriver (1) 3mm Allen Key T-Bar (1) 5mm Allen Key T-Bar (1) 13mm Combination Wrench (1) Flash Adjustment Tool (1) 5/8 Inch Socket (1) 50gm Marine Grease Tube (1) NiMH Battery Charger (1) SLA Battery Charger Spare Parts Include: (2) 20mm Bungs, (5) Vents, (5) Battery Gaskets for AV-70-RF, (5) O-rings for AV-426 Range, (20) Battery Cover Screws

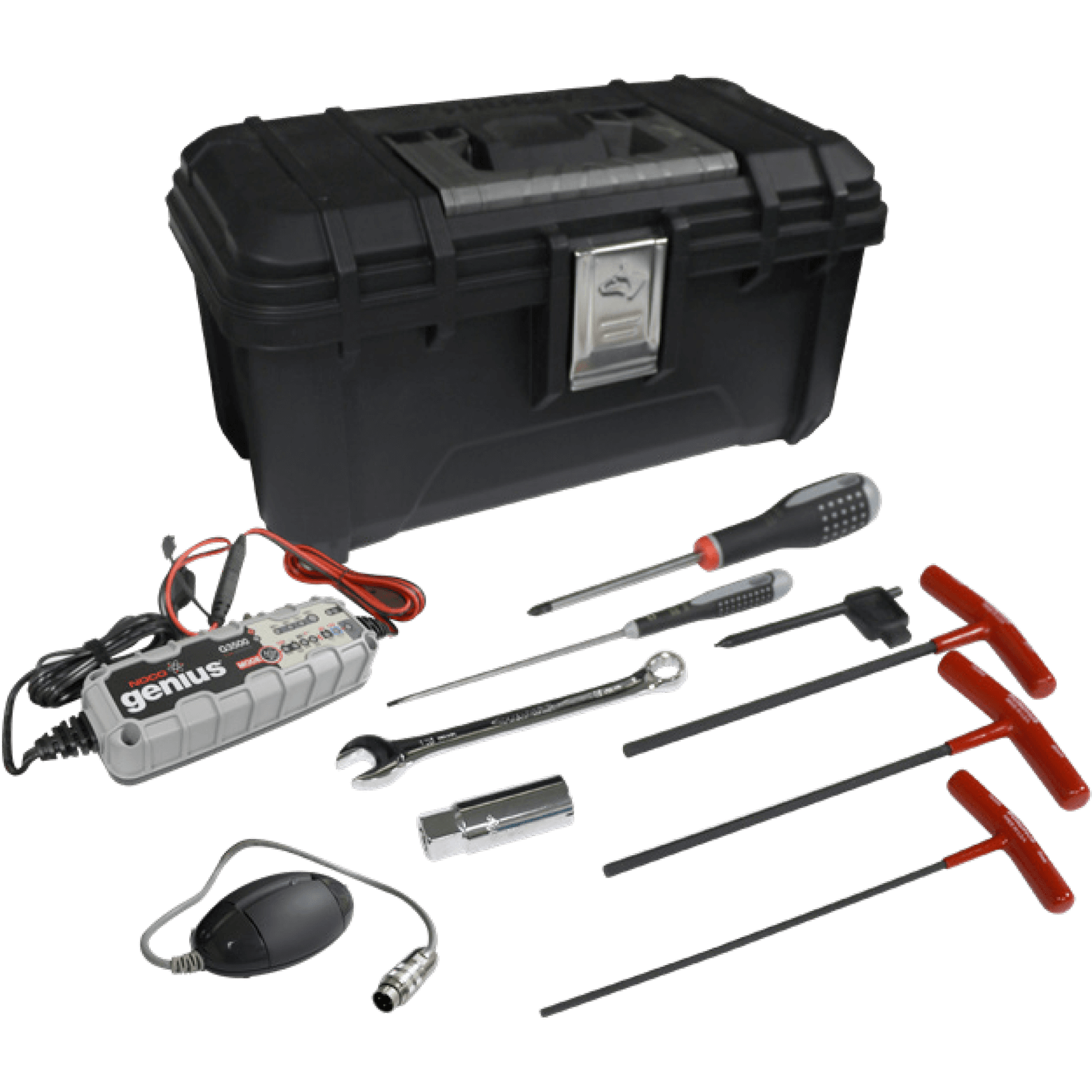

Tool Kit with Battery Chargers & Spare Parts	AV-T-12	(1) Polycarbonate Tool Box (1) Small Flat Bladed Screwdriver (1) Medium Phillips Head Screwdriver (1) 5mm Allen Key T-Bar (1) 6mm Allen Key T-Bar (1) 13mm Allen Key T-Bar (1) 13mm Combination Spanner (1) Flash Adjustment Access Tool (1) 5/8 Inch Long Series Socket (1) 50gm Marine Grease Tube (1) Battery Charger to suit AV-70 Range (1) Battery Charger to suit AV-426-RF Range Spare Parts Include: (2) 20mm Bungs, (5) Vents, (5) Battery Gaskets for AV-70 Standard, (5) Battery Gaskets for AV-70-RF, (5) O-rings for AV-426-RF Range, (20) Battery Cover Screws

Avlite Obstruction Light Bracket Kits

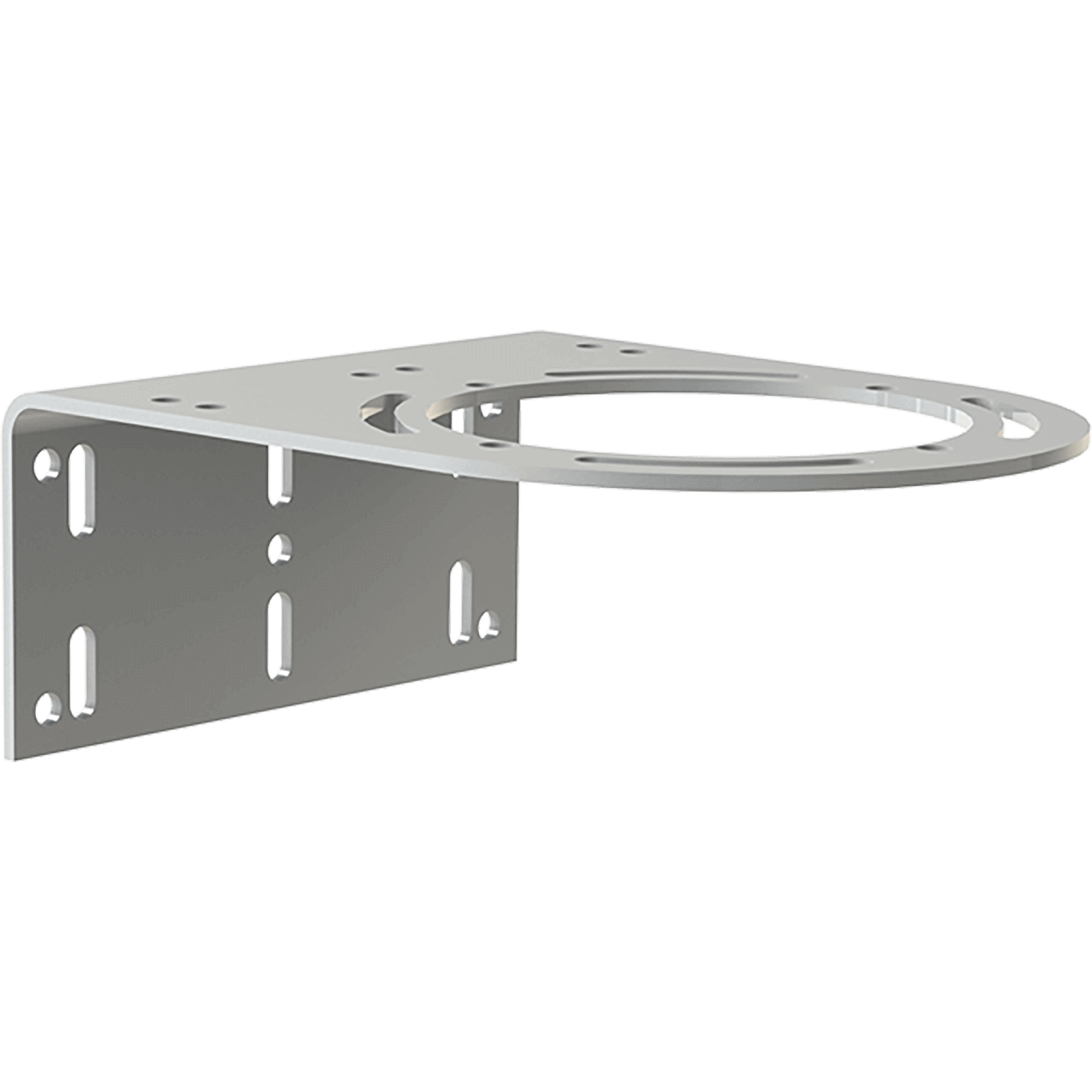

AV-MC-42 Universal Right Angle Bracket for CMI Lights

Technical Specifications
Physical Characteristics
Body Material	Heavy duty aluminum
Available Colors	Yellow, red or white
Mounting	200mm bolt pattern
Length (inches/mm)	10 / 254
Width (inches/mm)	10 / 254
Height (inches/mm)	6 / 152
Weight (lbs/kg)	5.15 / 2.37
Warranty & Application
Warranty	1 year
Compatible Fixtures	AV-OL-60, AV-OL-70, AV-OL-75, AV-OL-310, AV-OL-MI, AV-OL-CMI

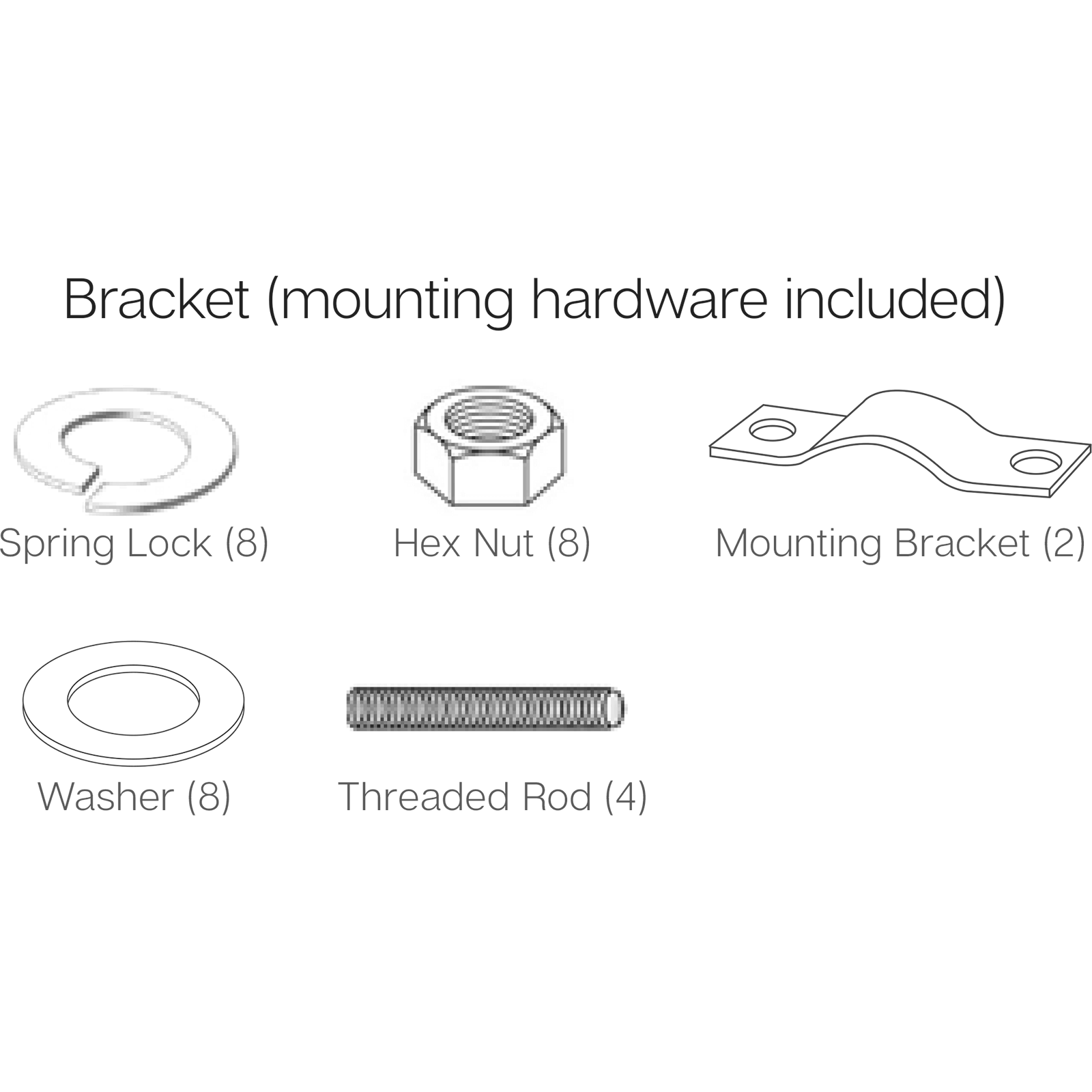

Replacement Parts & Accessories
Part Number	Description
AV-MC-42

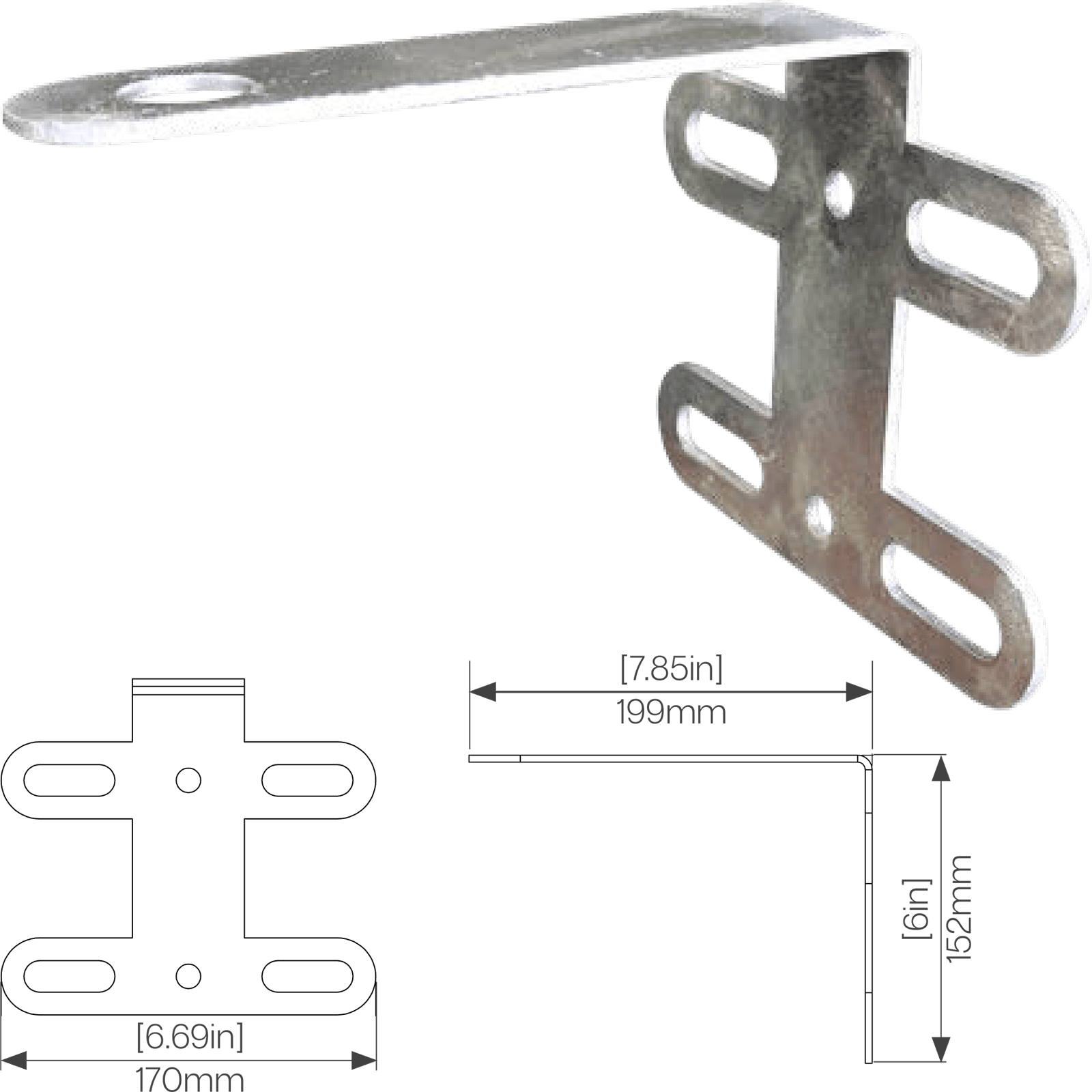

AV-MC-43 Universal Right Angle Bracket for LIOL Single & Dual Fixtures

Technical Specifications
Physical Characteristics
Body Material	Heavy duty aluminum
Available Colors	Yellow, red or white
Mounting	3/4 inch pipe thread
Length (inches/mm)	7.85 / 199
Width (inches/mm)	6.69 / 170
Height (inches/mm)	6.00 / 152
Weight (lbs/kg)	1.45 / 0.66
Warranty & Application
Warranty	1 year
Compatible Fixtures	AV-OL Series LIOL Single and Dual Fixtures

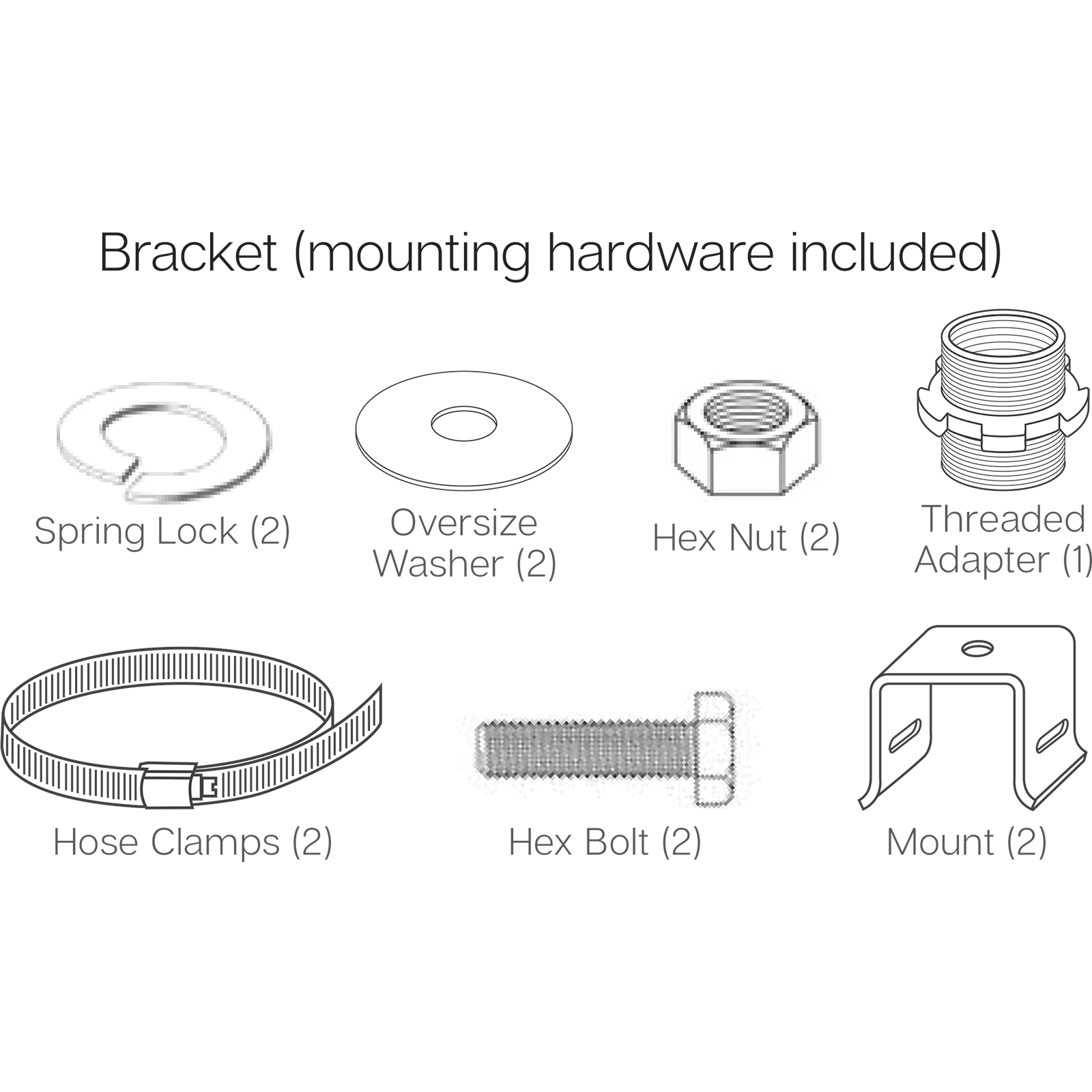

Replacement Parts & Accessories
Part Number	Description
AV-MC-43

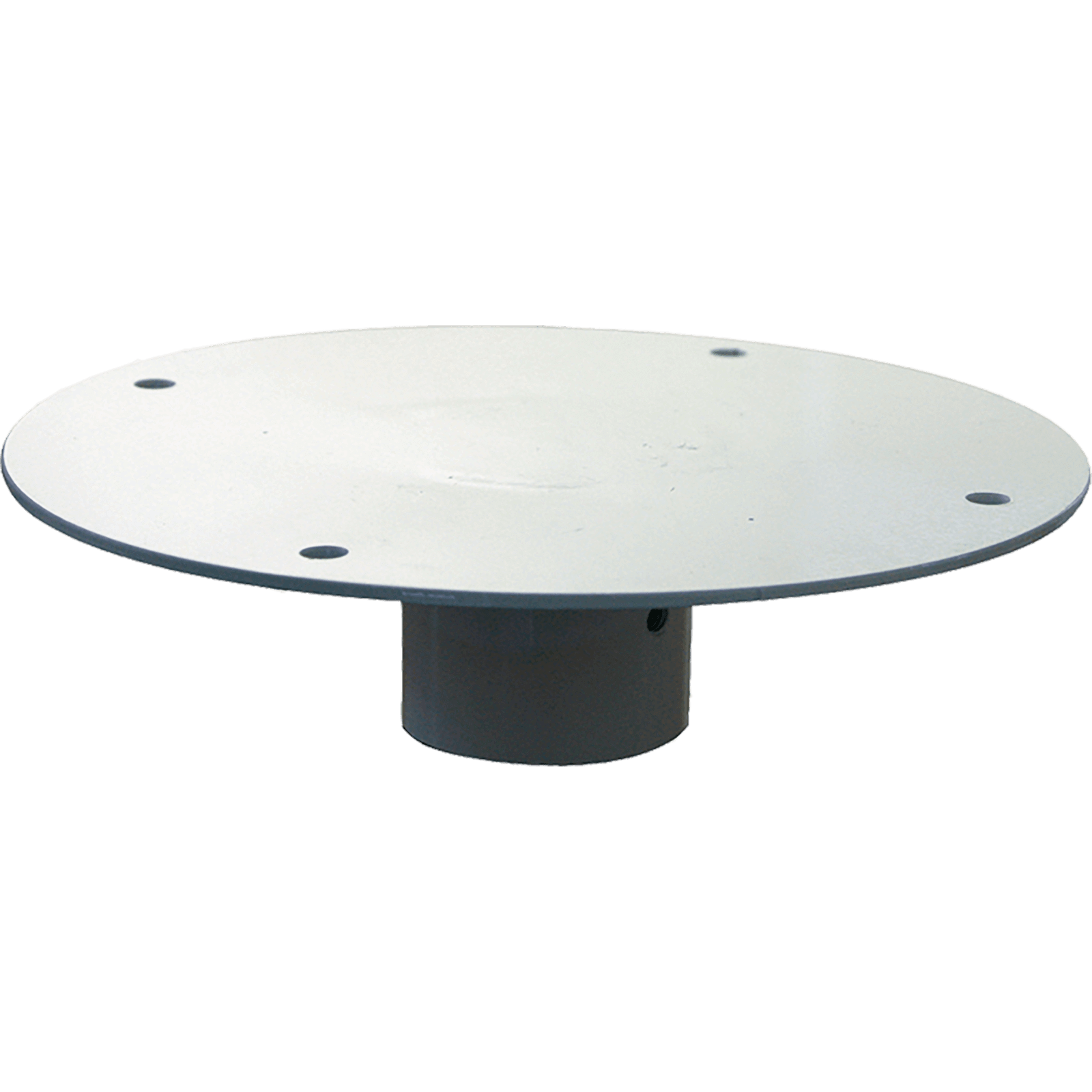

AV-MC-01 Flat Mounting Plate for Solar, Self-Contained Lanterns

Technical Specifications
Physical Characteristics
Body Material	7-stage powder coated heavy duty aluminum
Available Colors	Yellow, red or white
Mounting	2 inches ID
Diameter (inches/mm)	9 / 229
Height (inches/mm)	2.5 / 64
Weight (lbs/kg)	1.2 / 0.54
Warranty & Application
Warranty	1 year
Compatible Fixtures	AV-OL-60, AV-OL-70, AV-OL-75, AV-OL-310, AV-OL-MI, AV-OL-CMI

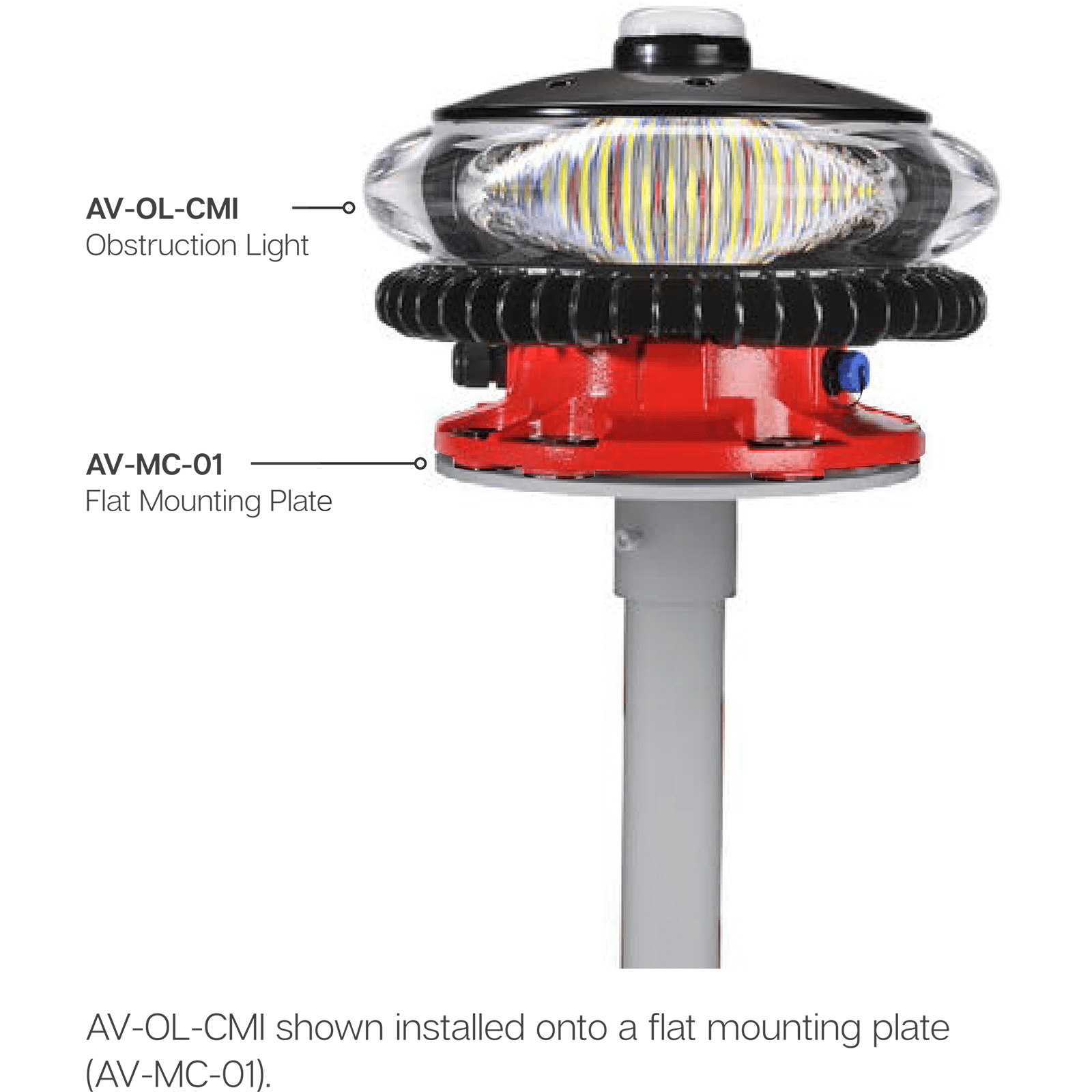

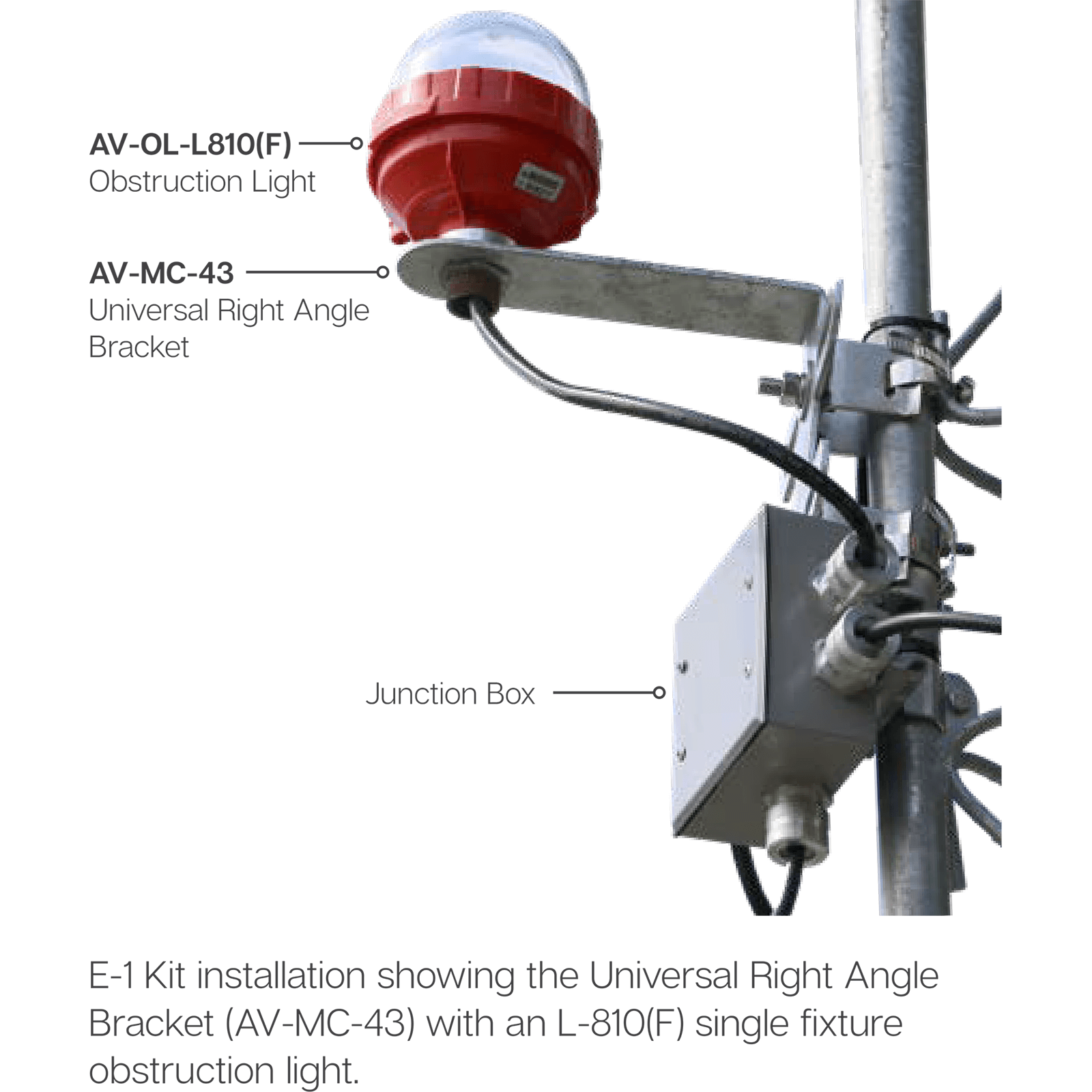

Installation Examples

Avlite Battery Range

Avlite’s Battery range is designed to meet the strictest safety standards for all aviation applications. Our range includes solutions that complement our airfield, heliport and obstruction lighting products.

Part Code	Description	Accessory for

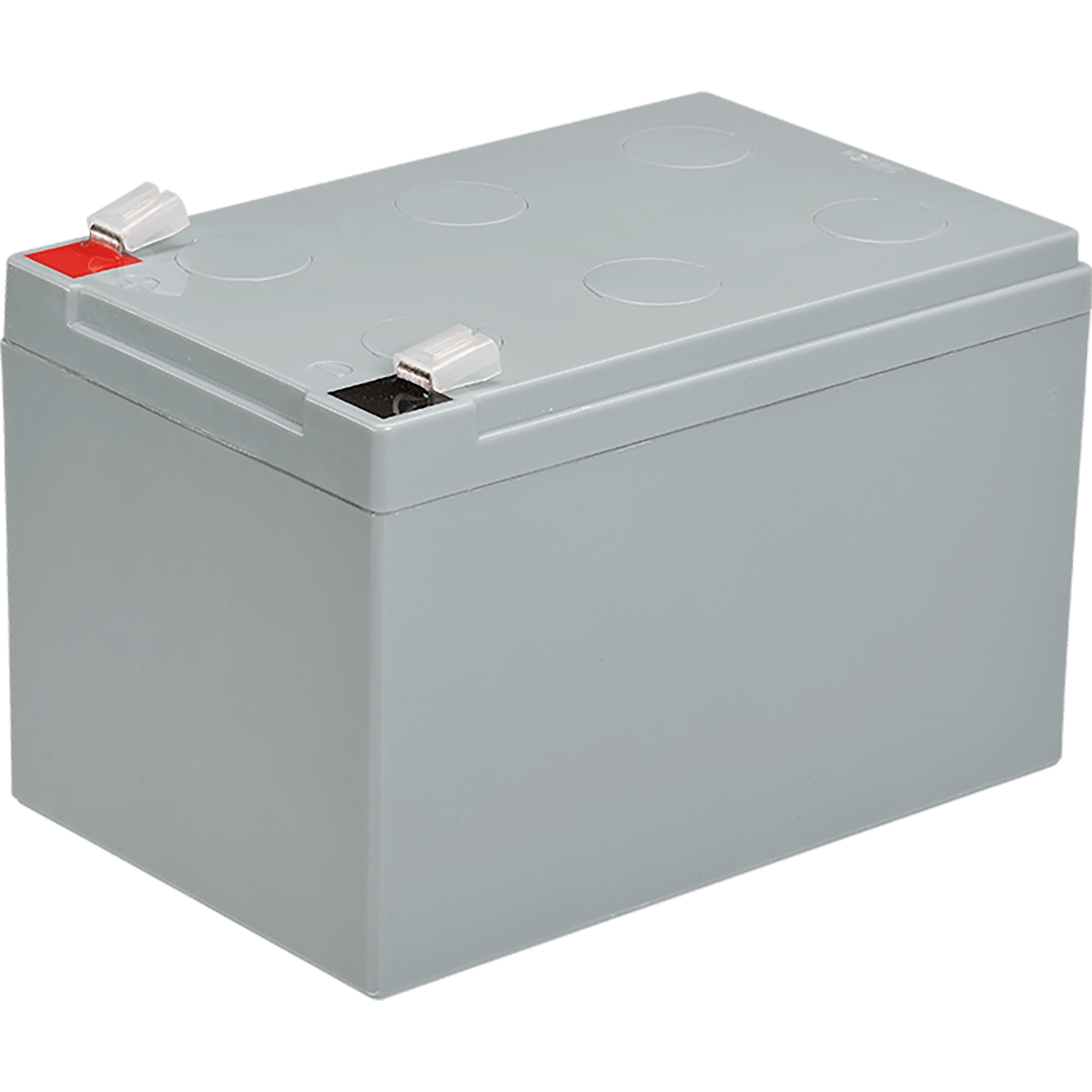

AV-ACC-BT-01	Gel Sealed Lead Acid, 12AH, 12V	AV-426-S2C0 AV-OL-310-S2C0

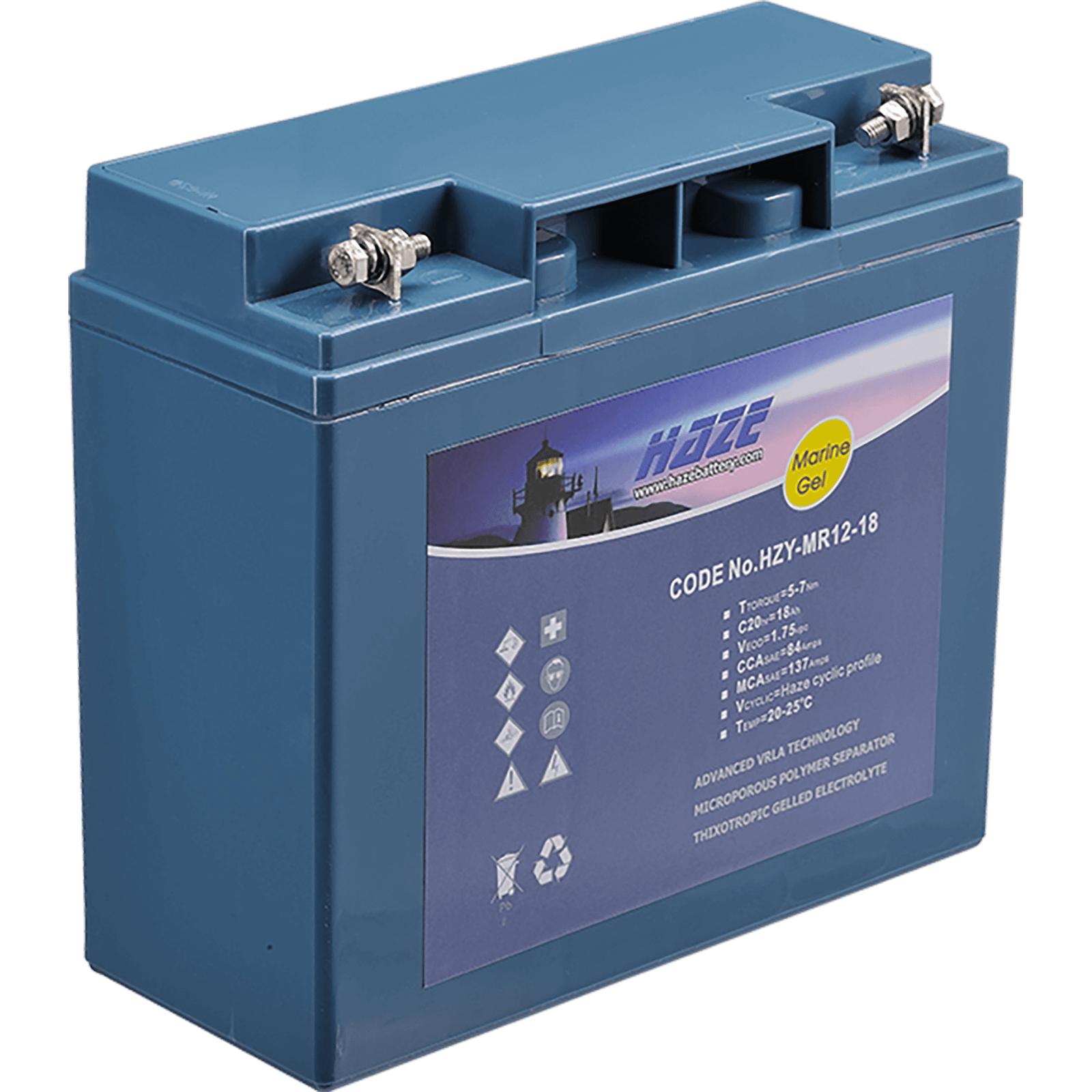

AV-ACC-BT-02	Gel Sealed Lead Acid, 18AH, 12V	AV-HL-FL-PV AV-SIGN-SOL

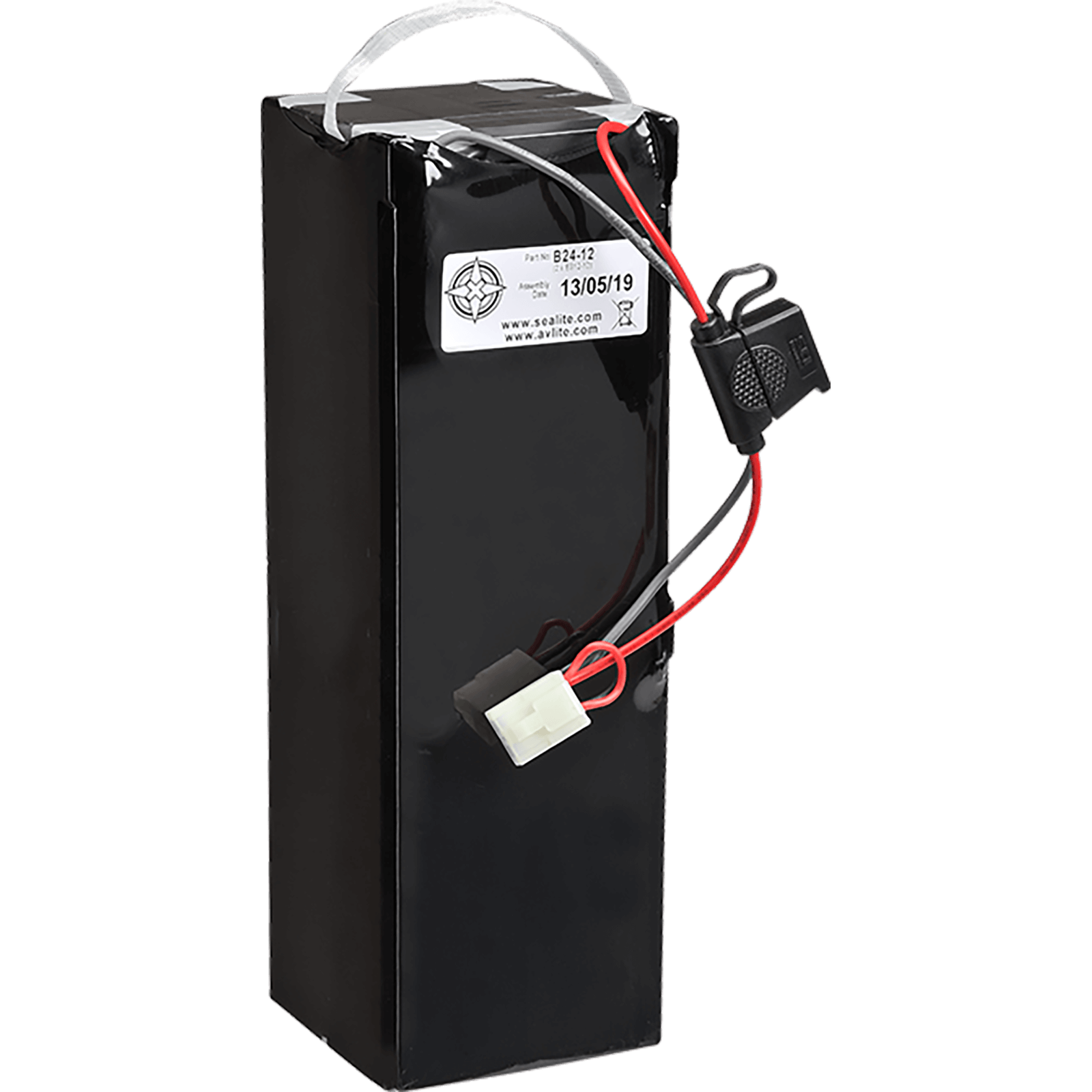

AV-ACC-BT-03	Gel Sealed Lead Acid, 24AH, 12V	AV-426-S2C1, S2C2 AV-OL-310-S2C1, S2C2

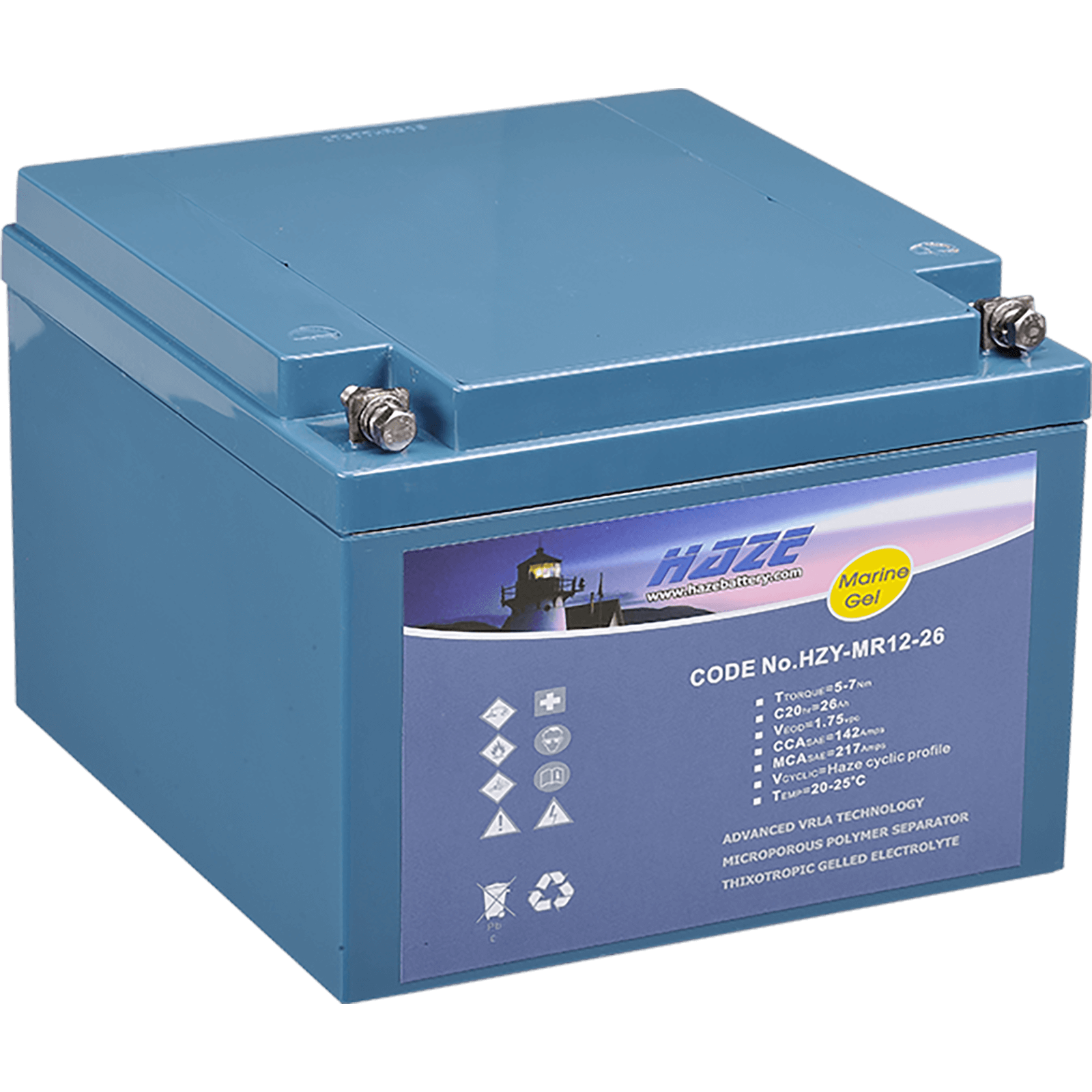

AV-ACC-BT-04	Gel Sealed Lead Acid, 26AH, 12V	AV-CT1 AV-UPS

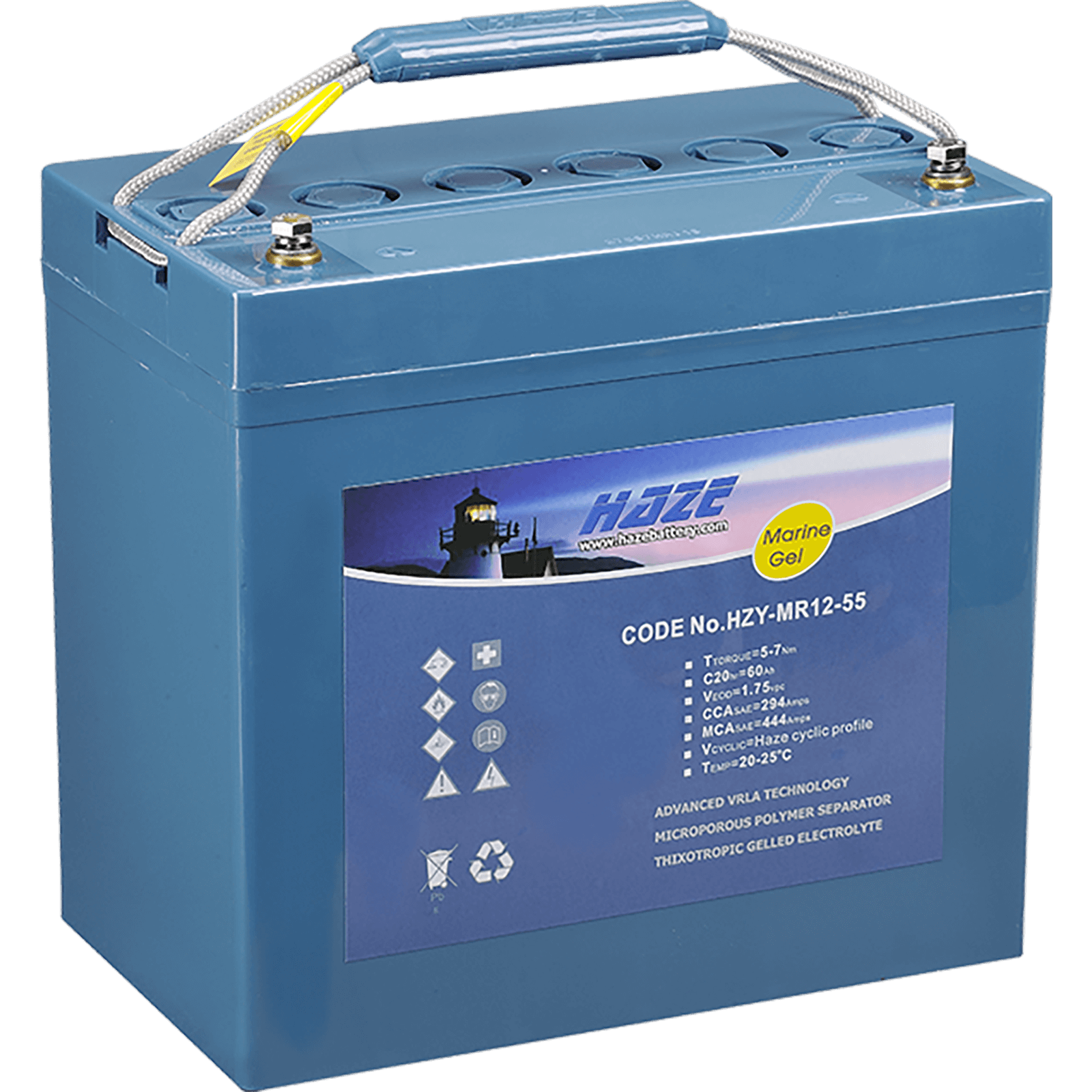

AV-ACC-BT-05	Gel Sealed Lead Acid, 55AH, 12V	AV-IWI AV-PALC AV-UPS AV-PS

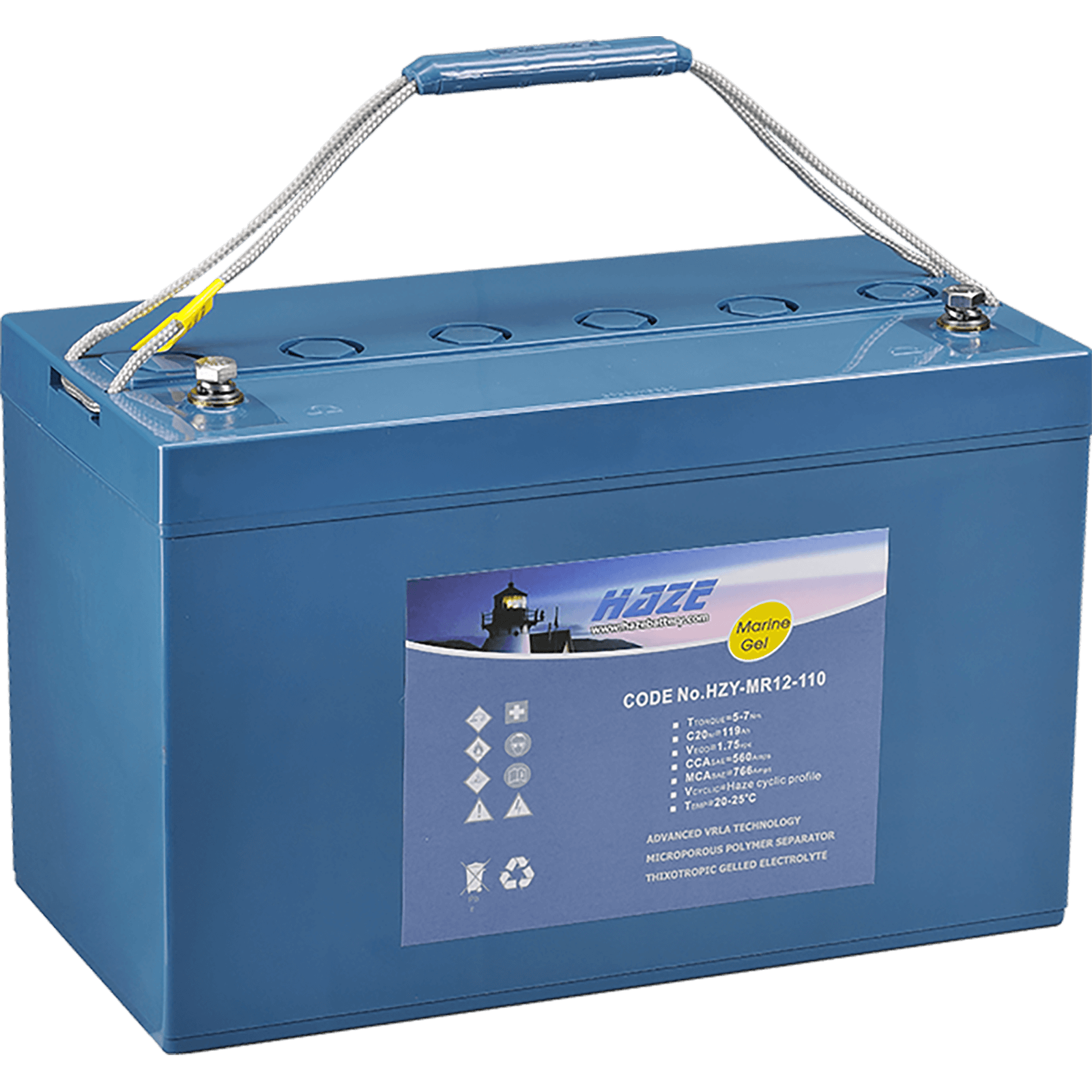

AV-ACC-BT-06	Gel Sealed Lead Acid, 110AH, 12V	AV-CT2 AV-UPS
AV-ACC-BT-07	Nickel Metal Hydride, 2.4AH, 3.6V	AV-15
AV-ACC-BT-08	Nickel Metal Hydride, 4.3AH, 3.6V	AV-ALS-RC

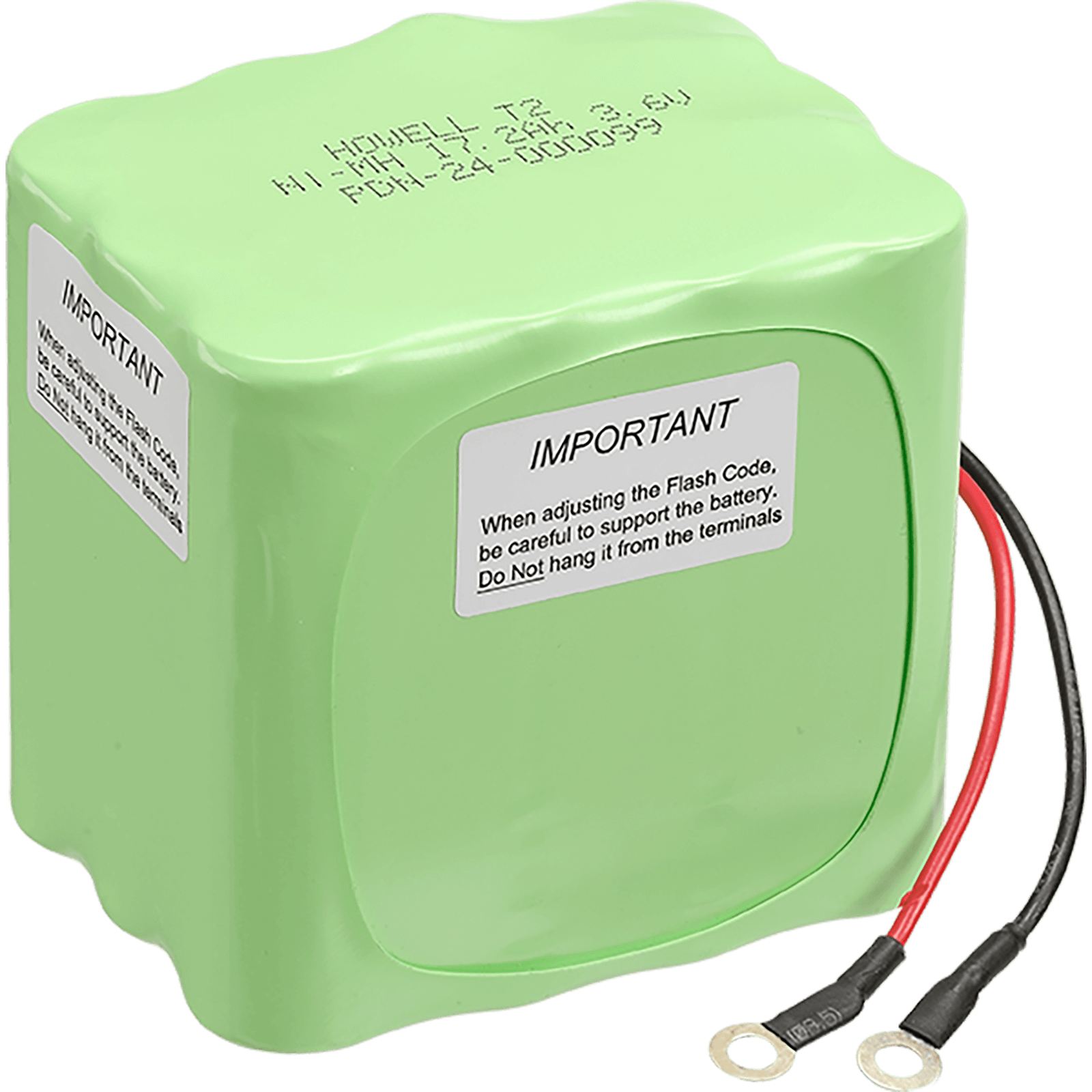

AV-ACC-BT-09	Nickel Metal Hydride, 8.6AH, 3.6V	AV-60 AV-70 AV-OL-60 AV-OL-70
AV-ACC-BT-10	Nickel Metal Hydride, 17.2AH, 3.6V	AV-70-16AH AV-OL-70-16AH

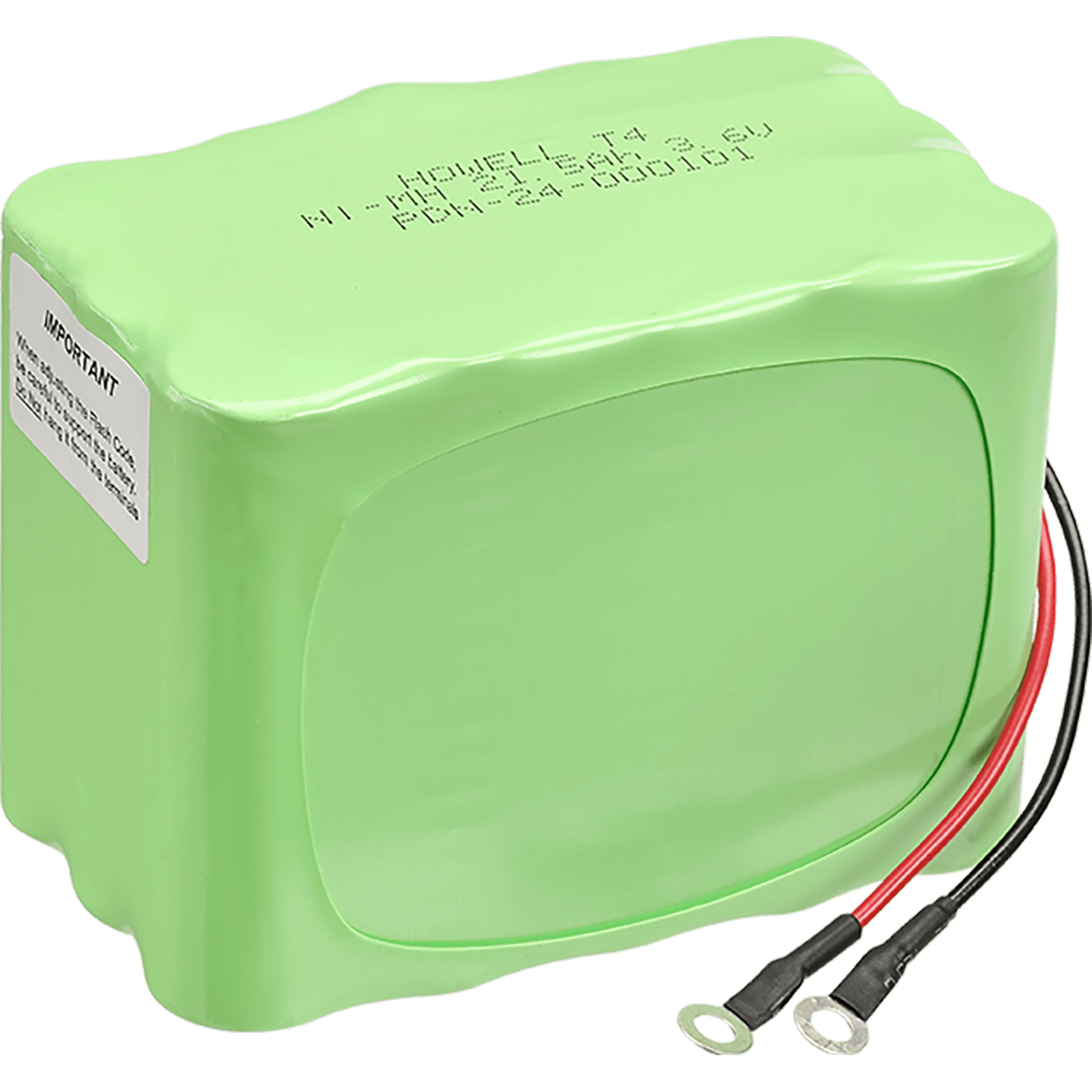

AV-ACC-BT-11	Nickel Metal Hydride, 21.5AH, 3.6V	AV-OL-75

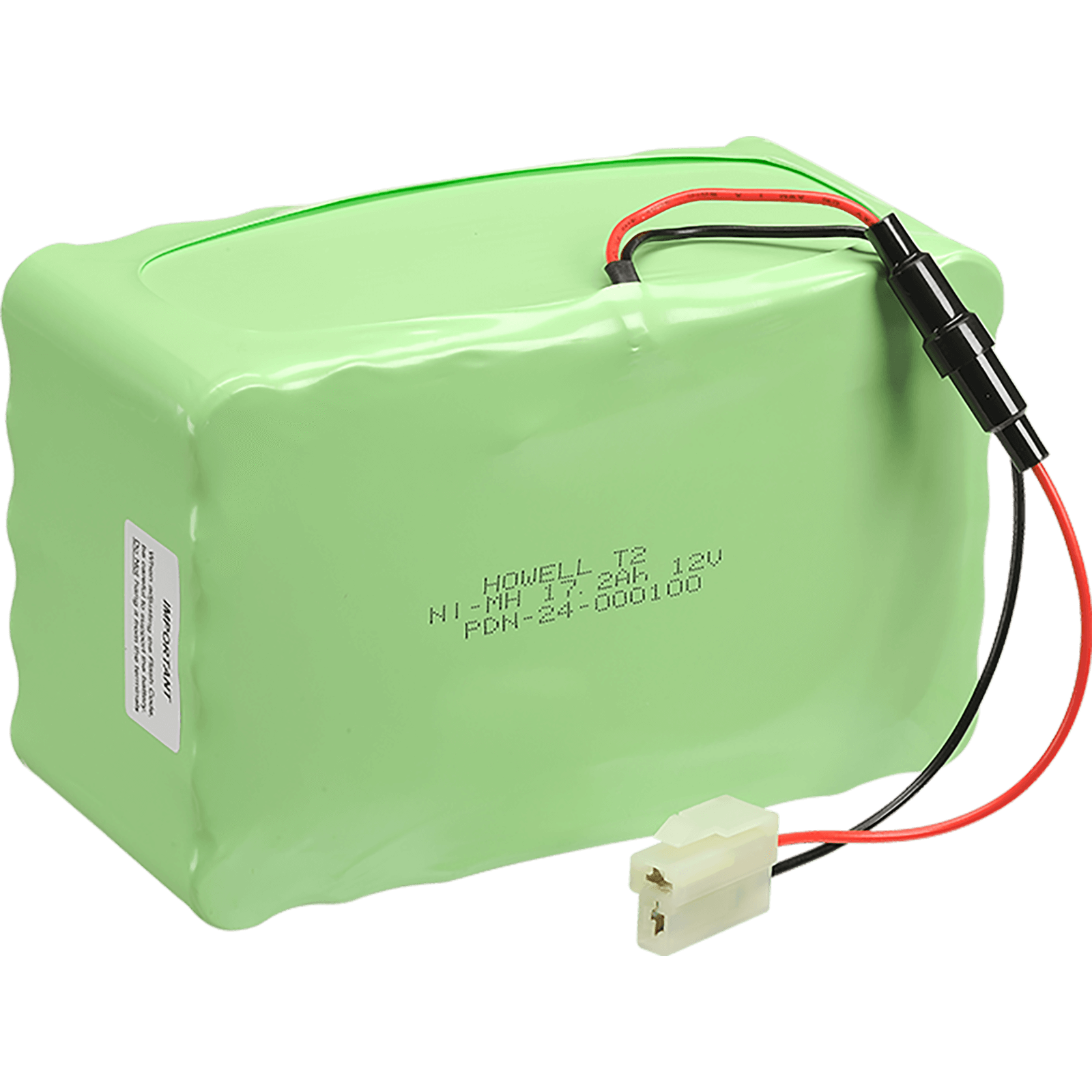

AV-ACC-BT-12	Nickel Metal Hydride, 17.2AH, 12V	AV-HL-SOL

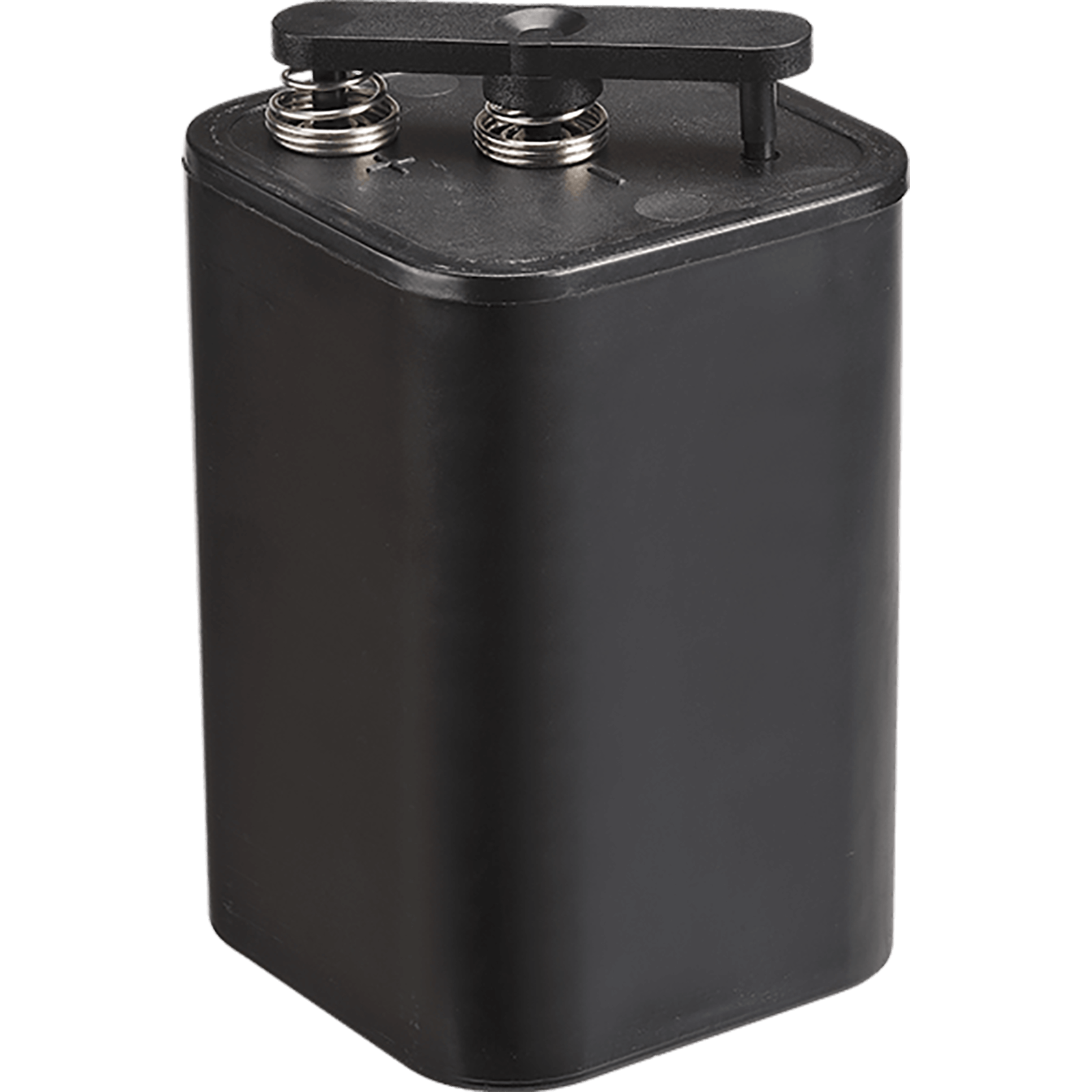

AV-ACC-BT-13	Air Alkaline, 45AH, 6V	AV-HP-EMSKIT

Avlite Charger Range

Avlite’s Charger range is designed to complement our existing airfield, heliport and obstruction lighting products.

Part Code	Description	Accessory for	Includes

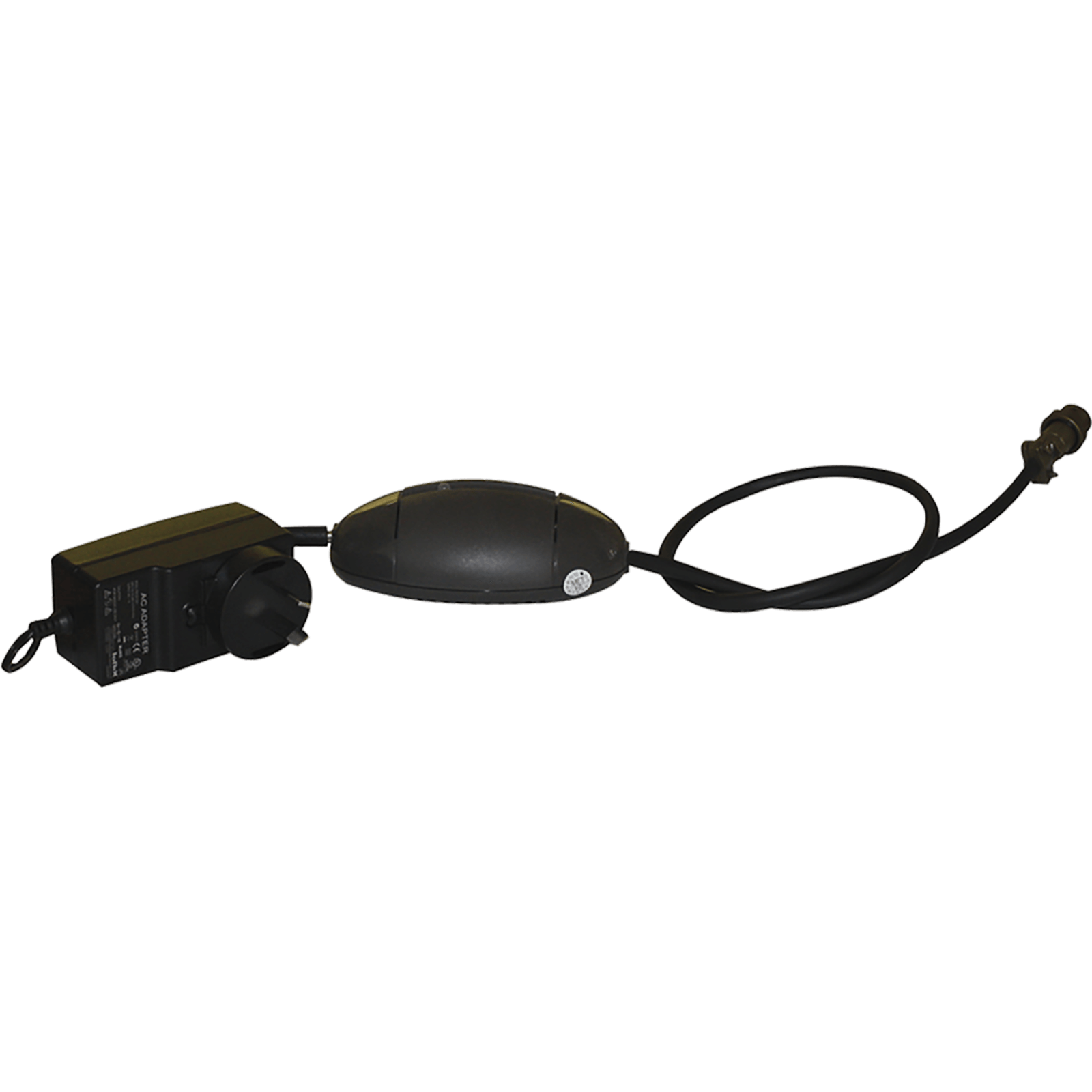

AV-ACC-CH-AU-01 -UK-01 -US-01 -EU-01	Smart charger to suit wireless RF handheld controller	AV-ALS	AU, UK, US and EU specific plug
AV-ACC-CH-AU-02 -UK-02 -US-02 -EU-02	Smart charger to suit 12V SLA battery	AV-426 AV-OL-310	AU, UK, US and EU specific plug

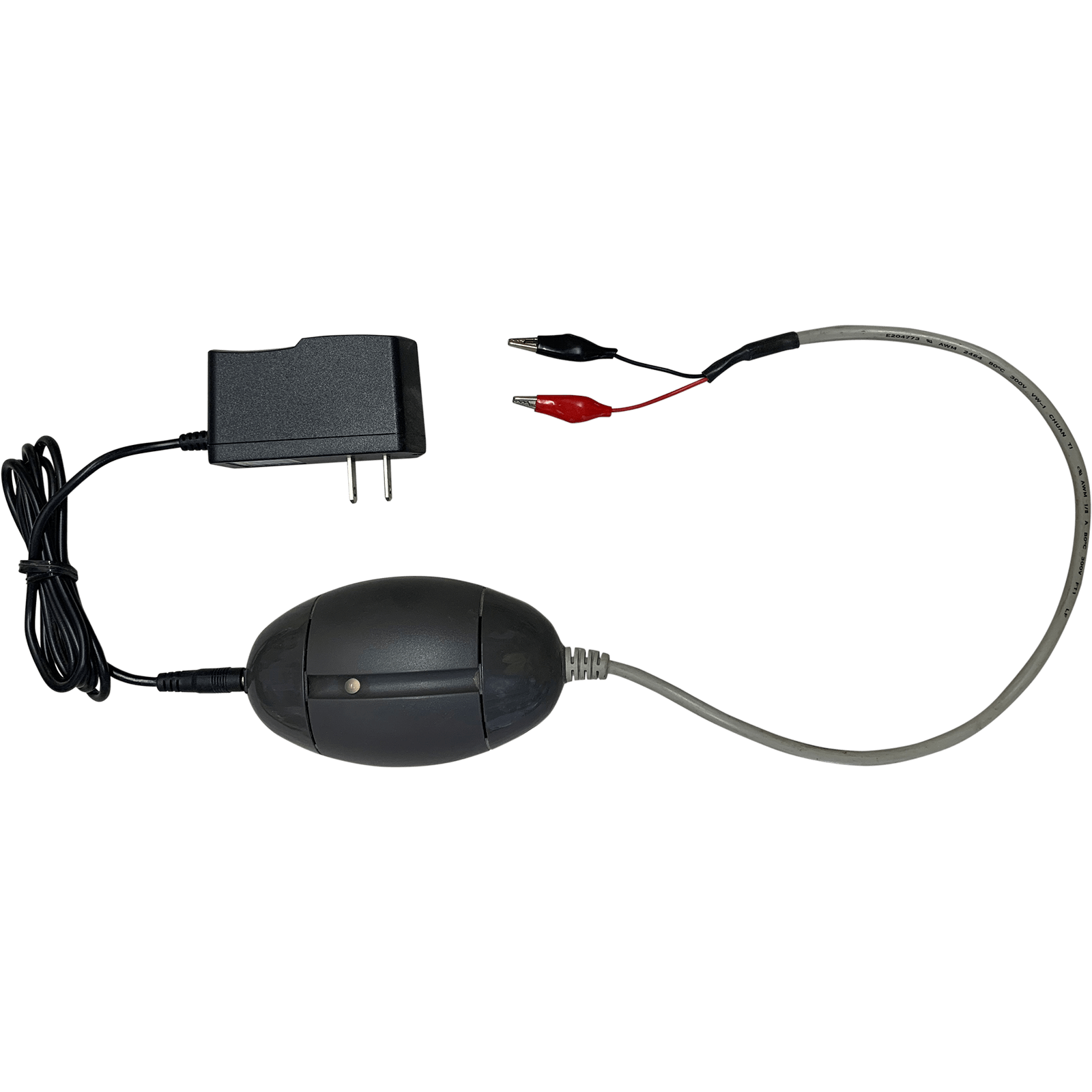

AV-ACC-CH-AU-03 -UK-03 -US-03 -EU-03	Smart charger to suit 3.6V NiMH battery	AV-60 AV-70 AV-OL-75	AU, UK, US and EU specific plug
AV-ACC-CH-AU-04 -UK-04 -US-04 -EU-04	Smart charger to suit 12V NiMH battery	AV-HL-SOL	AU, UK, US and EU specific plug
