AV-OL-70 & AV-OL-70-16AH Red Solar Obstruction Light | Avlite
Downloads
This product is available in our webstore – Shop Now
Compliance
• FAA AC150/5370-2F for construction and barricade installations
Applications
• Temporary obstruction lighting
• Barricade lighting
Features
• Cost effective
– Integrated solar/battery system
• Easy install
– User-replaceable battery
– Fast & easy to deploy – no programming
• Reliable
– IP68 waterproof rating
– Tough UV-stabilized LEXAN® polycarbonate lens and light base
– Automatic night activation
• High performance
– Dual internal high-performance solar modules angled to maximize solar collection
• Optional add ons
– GPS Flash Sync

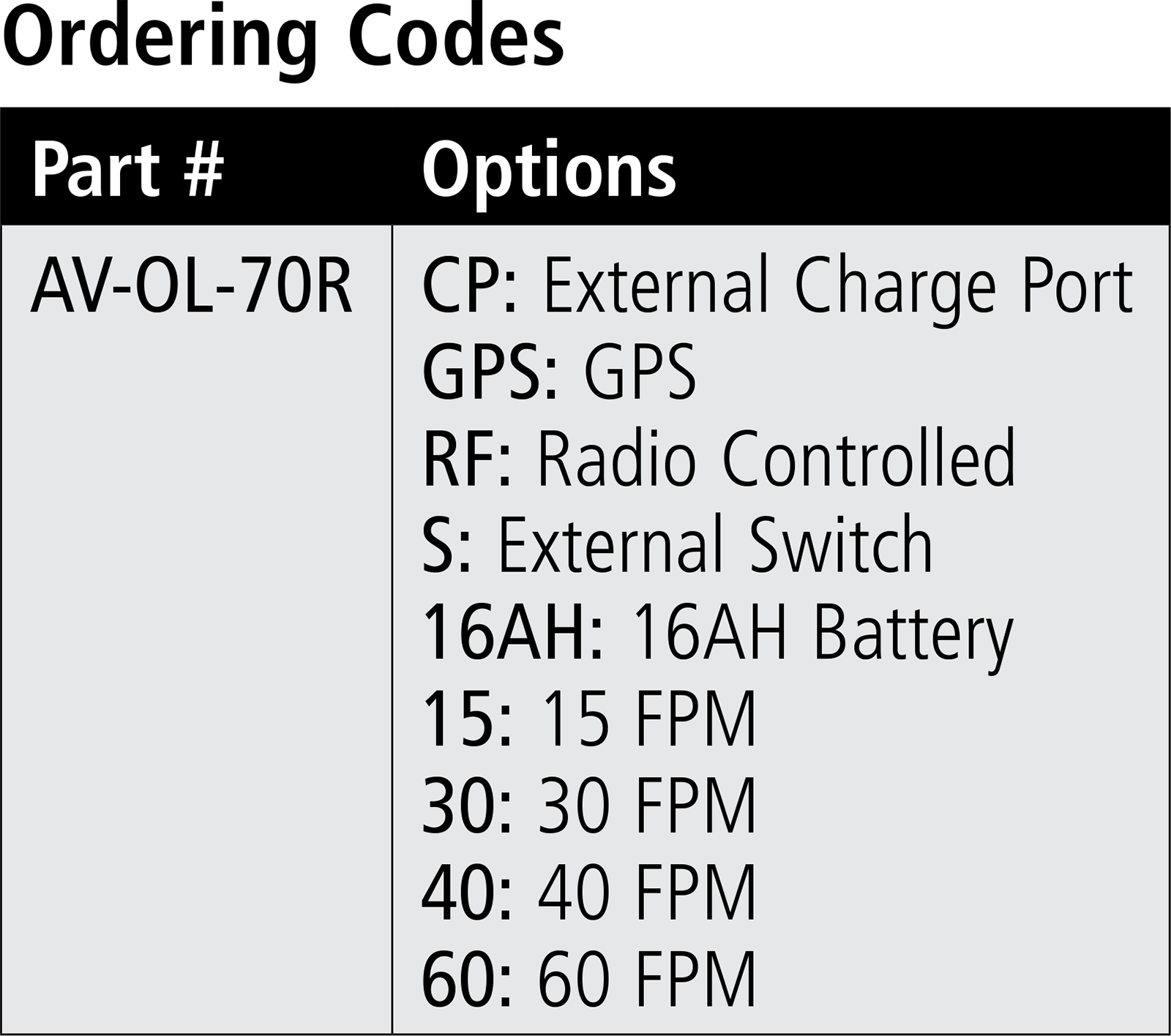

Ordering Codes
| Part Number | Options |
|---|---|
| AV-OL-70R |
CP: External Charge Port GPS: GPS RF: Radio Controlled S: External Switch 16AH: 16AH Battery 15: 15 FPM 30: 30 FPM 40: 40 FPM 60: 60 FPM |

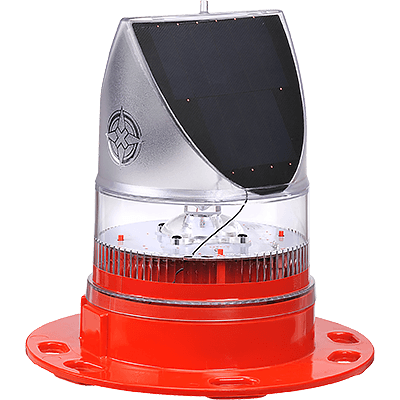

The AV-OL-70 is a field proven, low maintenance, self-contained solar LED light that is suitable for a variety of applications including general hazard, caution, barricade and low-intensity obstruction lighting.
Manufactured using the latest in LED technology, the popular AV-OL-70 model boasts user-adjustable intensity and flash code settings that can be easily modified in the field as required. Once activated, the light is ready for immediate operation and requires no operator intervention after installation.
Utilizing the two built-in, high performance solar modules to charge the battery during daylight hours, and the internal photo diode to detect ambient light, the AV-OL-70 achieves true self sufficient dusk-till-dawn operation in a small form factor environmentally sealed package that can be installed in minutes.
AV-OL-70-16AH
The AV-OL-70-16AH comes with a 16Ah battery for challenging solar environments.
Optional ON/OFF Switch
This model can be fitted with an optional external ON/OFF switch for manual operation.
