AV-70 & AV-70-16AH Solar Aviation Light | Avlite
Downloads
This product is available in our webstore – Shop Now
Compliance
• FAA L861T, Barricade AC 150/5370-2F
• ICAO Annex 14, Volume 1, ‘Aerodrome Design and Operations’
Applications
• ICAO and FAA Compliant.
• Runway threshold/end.
• Runway edge light.
• Taxiway edge light.
Features
• Cost Effective
– Solar powered.
– No running costs.
– Low ongoing maintenance costs.
• Easy Install
– No trenching of cables.
– No mains power.
• Reliable
– No bulbs blown – ever.
– Latest LED technology.
– No moving parts.
• High Performance
– Integrate into an Avlite runway lighting system.
– Dusk-to-dawn or on demand operation.
• Optional Add Ons
– Infrared output.
– Radio control.
– Mounting solutions.

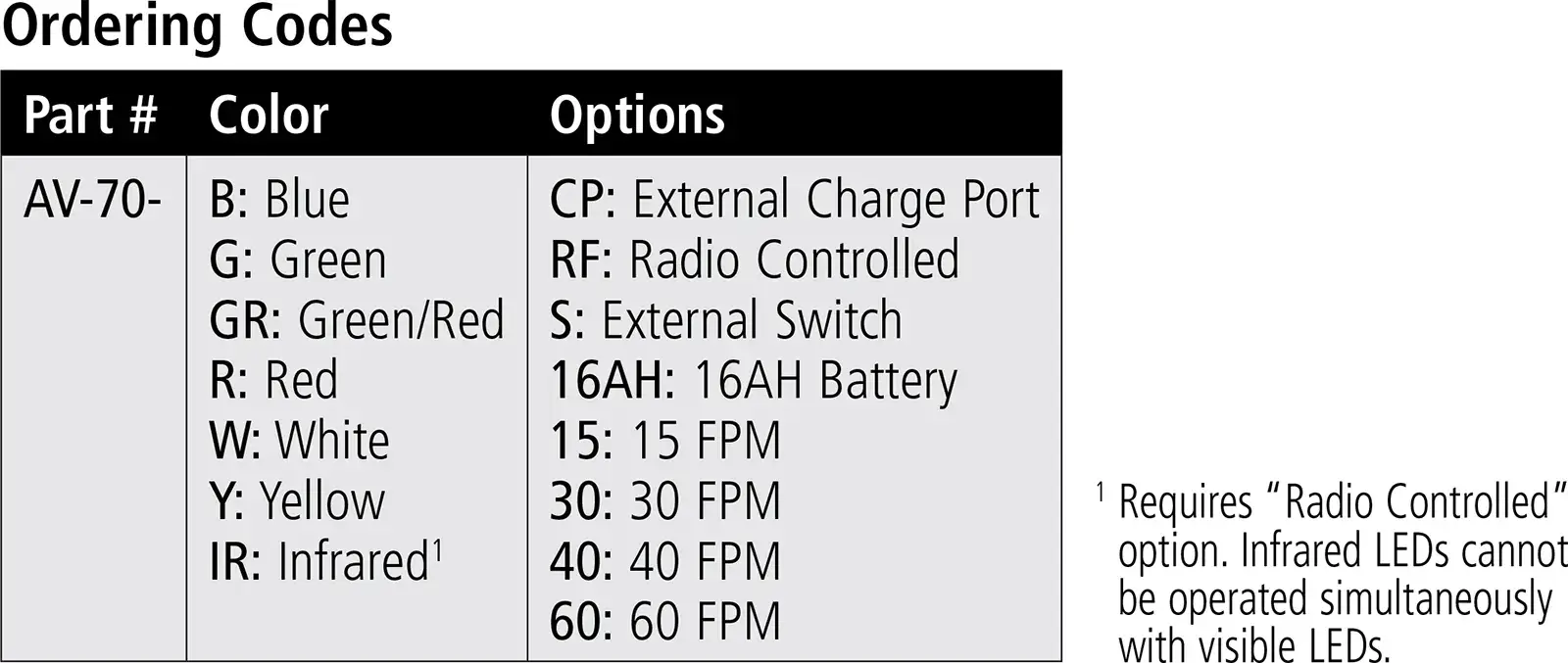

Ordering Codes
| Part # | Color | Options |
|---|---|---|
| AV-70- |
B: Blue G: Green GR: Green/Red R: Red W: White Y: Yellow IR: Infrared[1] |
CP: External Charge Port RF: Radio Controlled S: External Switch 16AH: 16AH Battery 15: 15 FPM 30: 30 FPM 40: 40 FPM 60: 60 FPM |
| [1] Requires “Radio Controlled” option. Infrared LEDs cannot be operated simultaneously with visible LEDs. | ||

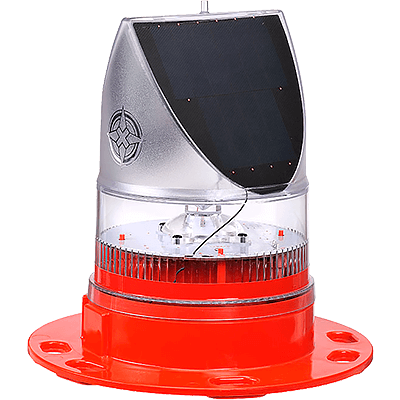

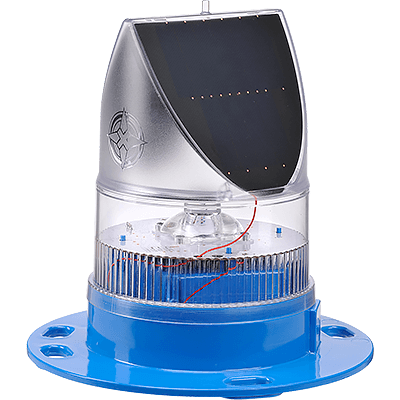

The solar powered AV-70 is a field-proven aviation light that offers enormous benefits over traditional battery and hard-wired aviation lights, including low maintenance and no underground wiring.

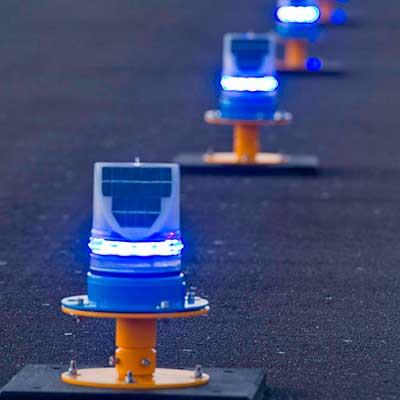

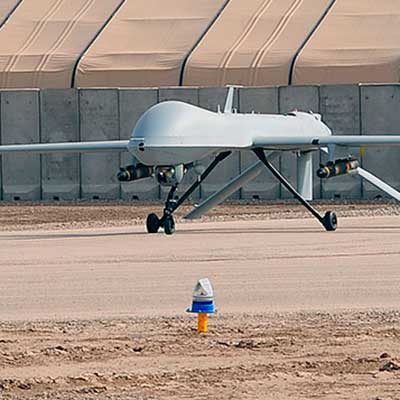

These completely self-contained LED lights are designed to suit a range of aviation and general applications, including emergency airstrip, caution, taxiway, and threshold lighting.

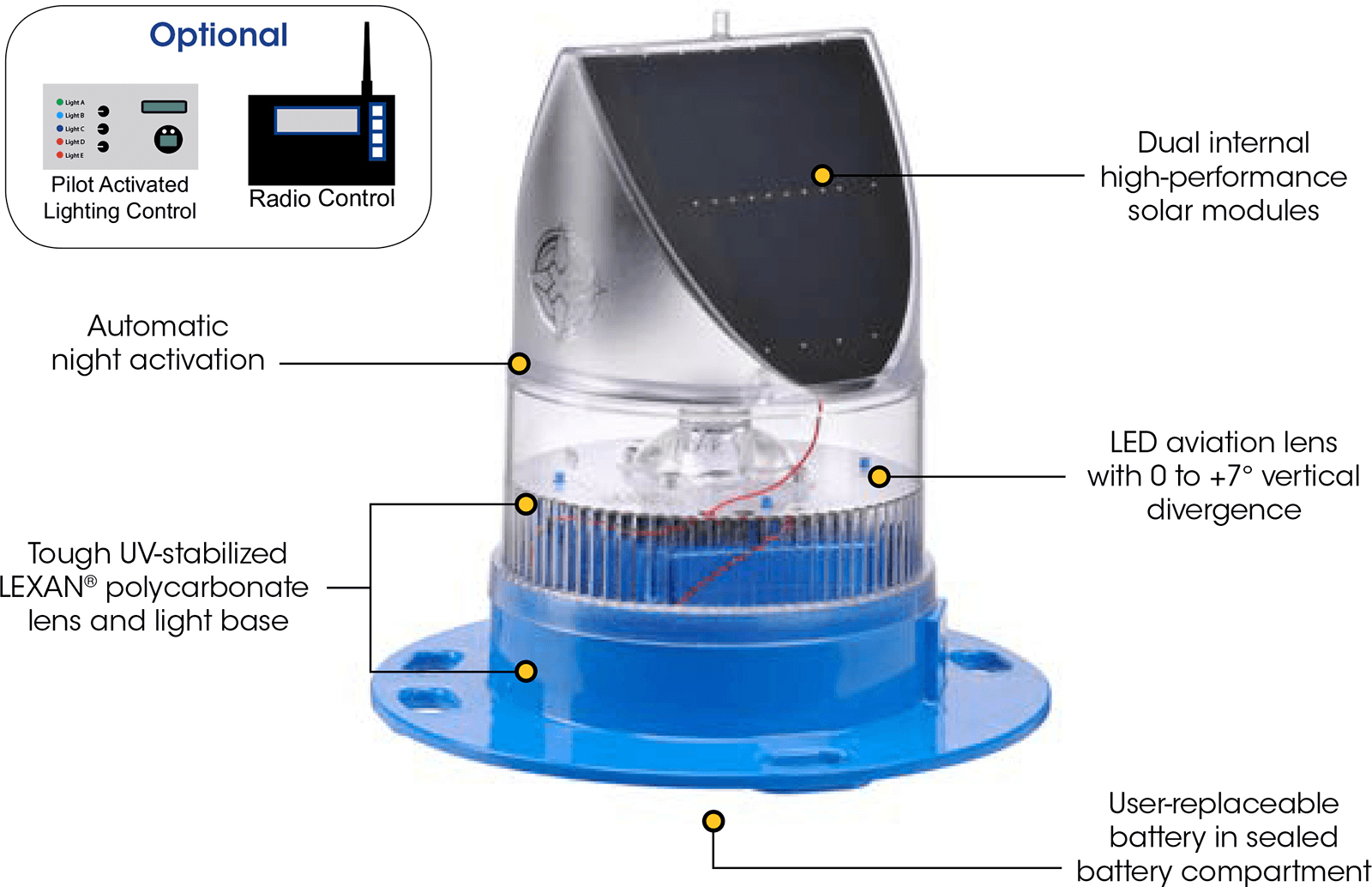

The unit has two high-performance solar modules mounted within the lens, that maximize solar collection and provide reliable operation in a range of environmental conditions.
The focal plane of the light is designed to provide a vertical divergence of between 0 to +7°, and the user-replaceable battery ensures a service life of up to 12 years.

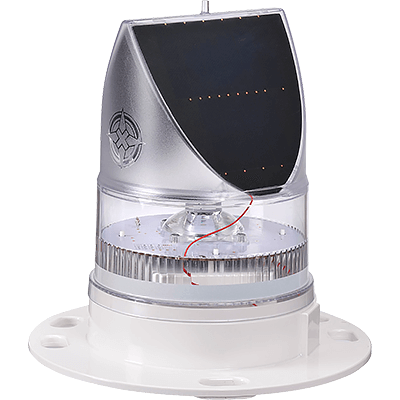

AV-70
The AV-70 is made from tough, durable UV stabilized LEXAN® polycarbonate, and incorporates an internal photodiode for automatic night activation once the ambient light threshold drops sufficiently.

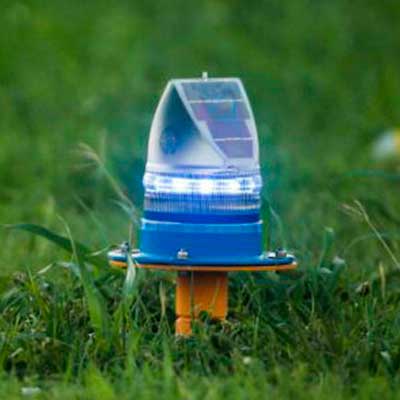

Completely self-contained and able to be installed in minutes, the AV-70 is the preferred choice for marking of remote airfields.
AV-70-16AH
The AV-70-16AH is a high intensity version of the AV-70 and is ideal for use in high sunlight areas.
Optional Radio Control
The AV-70-RF is a radio-controlled version of the AV-70, which can be used in conjunction with a PALC or simple handheld controller. Users can wirelessly control ON/OFF functions, adjust light intensities or switch between visual and IR (tactical) operational modes if fitted.
