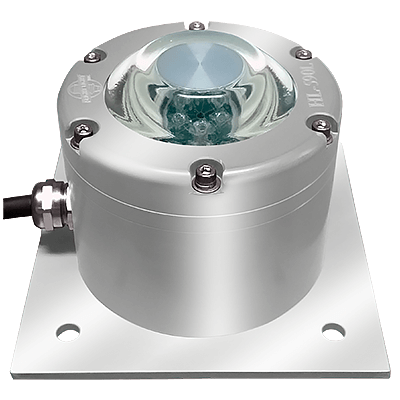

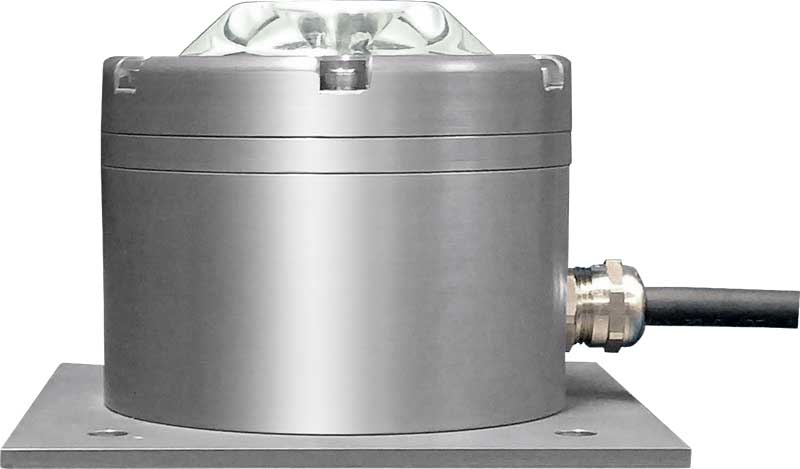

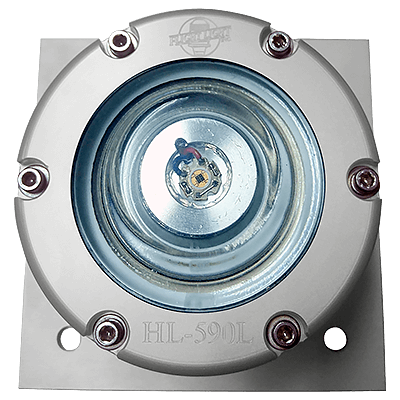

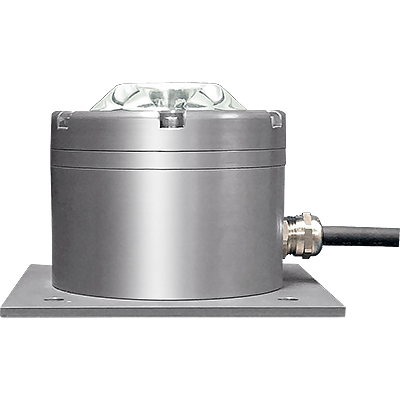

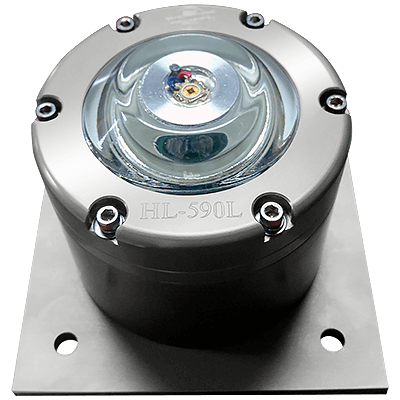

HL-590L Stainless Steel LED Helideck/Helipad Surface Mount Perimeter Light (Spare Parts Only)
Downloads
Legacy Product: Spare Parts Only
The HL-580L Stainless Steel Water Resistant LED Helideck/Helipad Surface Mount Perimeter Light has replaced this product.
Compliances
• FAA AC 150/5390-2D Heliport Design Guide
• Exceeds FAA AC 150/5390-2D Appendix G Specifications
• Transport Canada TP14371, AGA 7.16
• Buy American Act Compliant
Applications
Our HL-590L surface mount stainless steel perimeter light helps mark the helipad Final Approach and Takeoff (FATO) area for metal helidecks and pavement heliports.
Ideal for offshore applications.
Why Our HL-590L is Better
Superior Design and Construction
• Low profile, 4.175″ [10.6 cm], reduces the chances of being damaged.
• Corrosive resistant stainless steel construction stands up to salt, chemicals, and weather.
• Exposed to nitric acid passivation to maximize the essential corrosion resistance.
• Sturdy stainless steel construction, 10 lb. [4.5 kg], stands up to heavy use.
• Factory sealed, moisture proof light cavity maximizes LED life.
Easy Installation and Maintenance

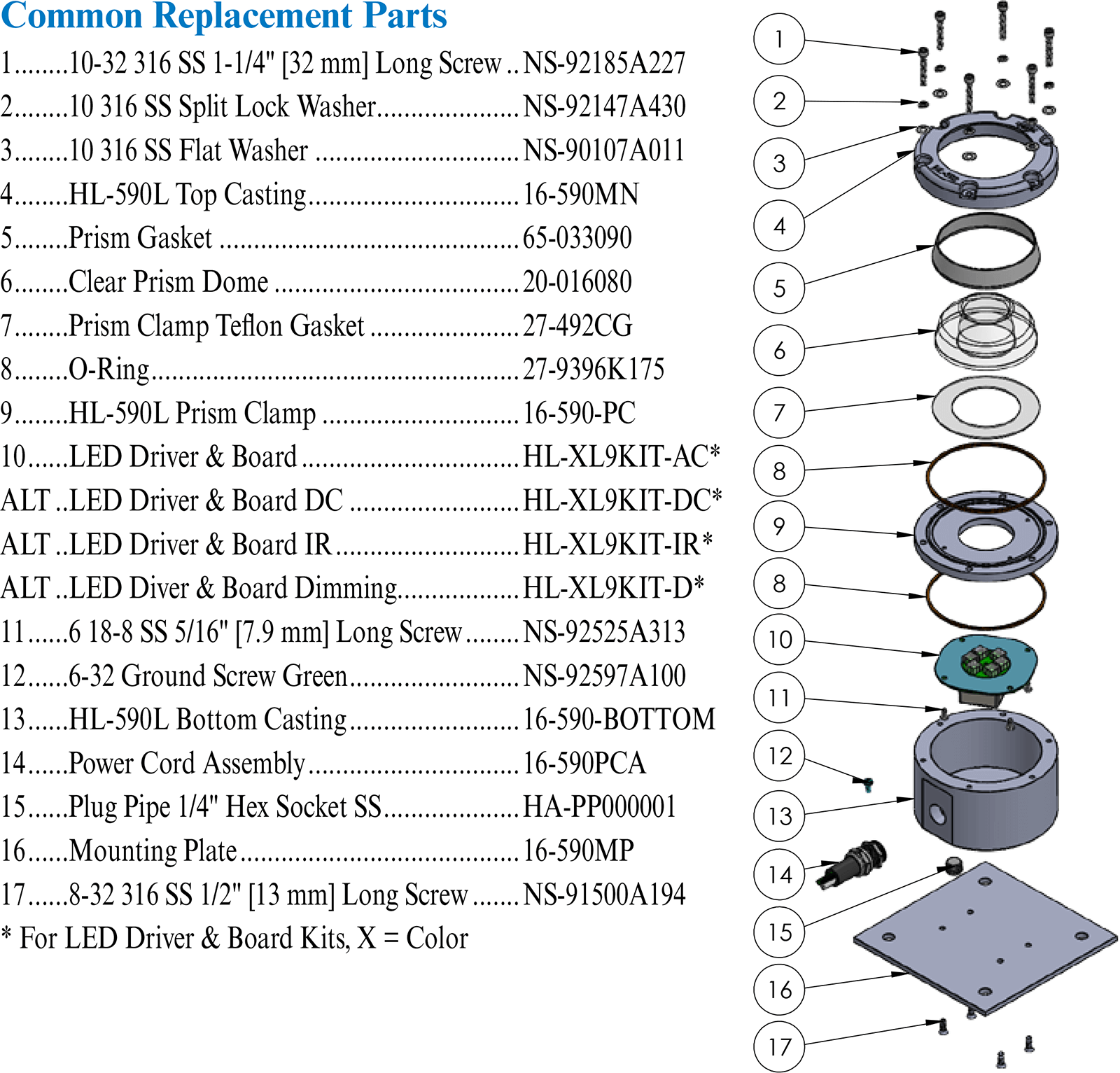

• Lens and/or LED can be replaced while fixture remains installed – does not require adhesives or sealants.
• Low maintenance LED light source has 50,000 hour lifetime (50X longer than halogen).
• Integrated mounting plate allows simple 4-bolt installation.
Optical Performance

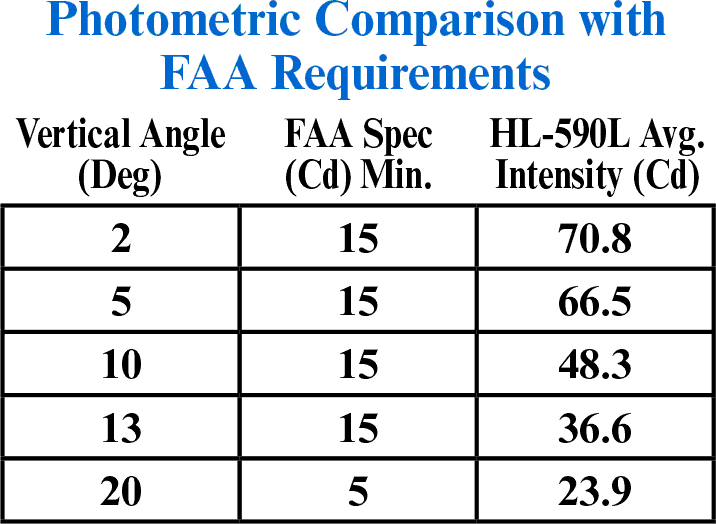

• Optical performance exceeds FAA AC 150/5390-2D Appendix G specifications.
• 3-Step Dimming Controller to minimize nighttime glare available.
• Monochromatic output of LEDs is more conspicuous than halogen.

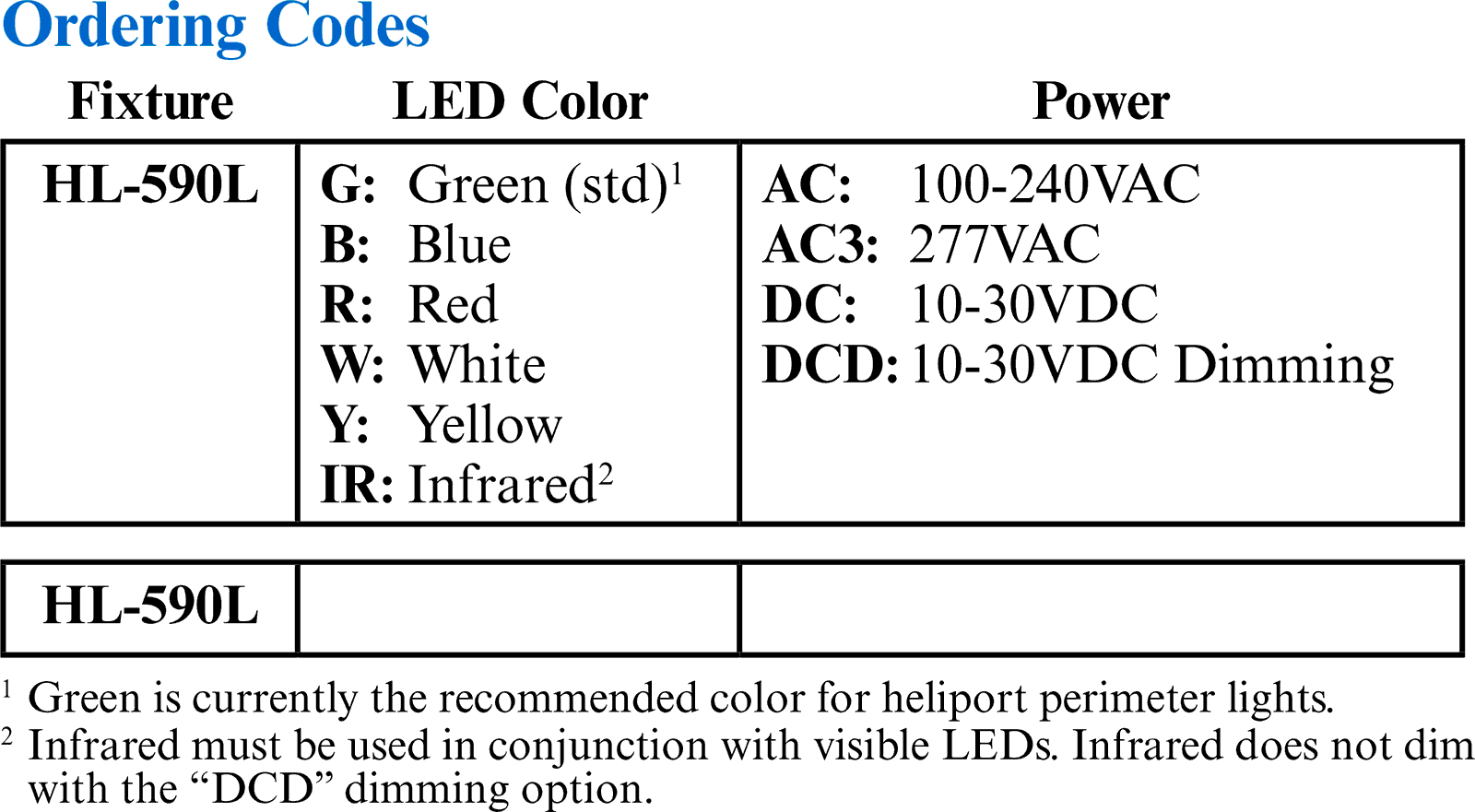

Ordering Codes
| Fixture | LED Color | Power |
|---|---|---|
| HL-590L | G: Green (std)[1] B: Blue R: Red W: White Y: Yellow IR: Infrared[2] |
AC: 100-240VAC AC3: 277VAC DC: 10-30VDC DCD: 10-30VDC Dimming |
| [1] Green is currently the recommended color for heliport perimeter lights. [2] Infrared must be used in conjunction with visible LEDs. Infrared does not dim with the “DCD” dimming option. |
||
Specifications
• Construction: 304 stainless steel with nitric acid passivation.
• 316 stainless steel hardware.

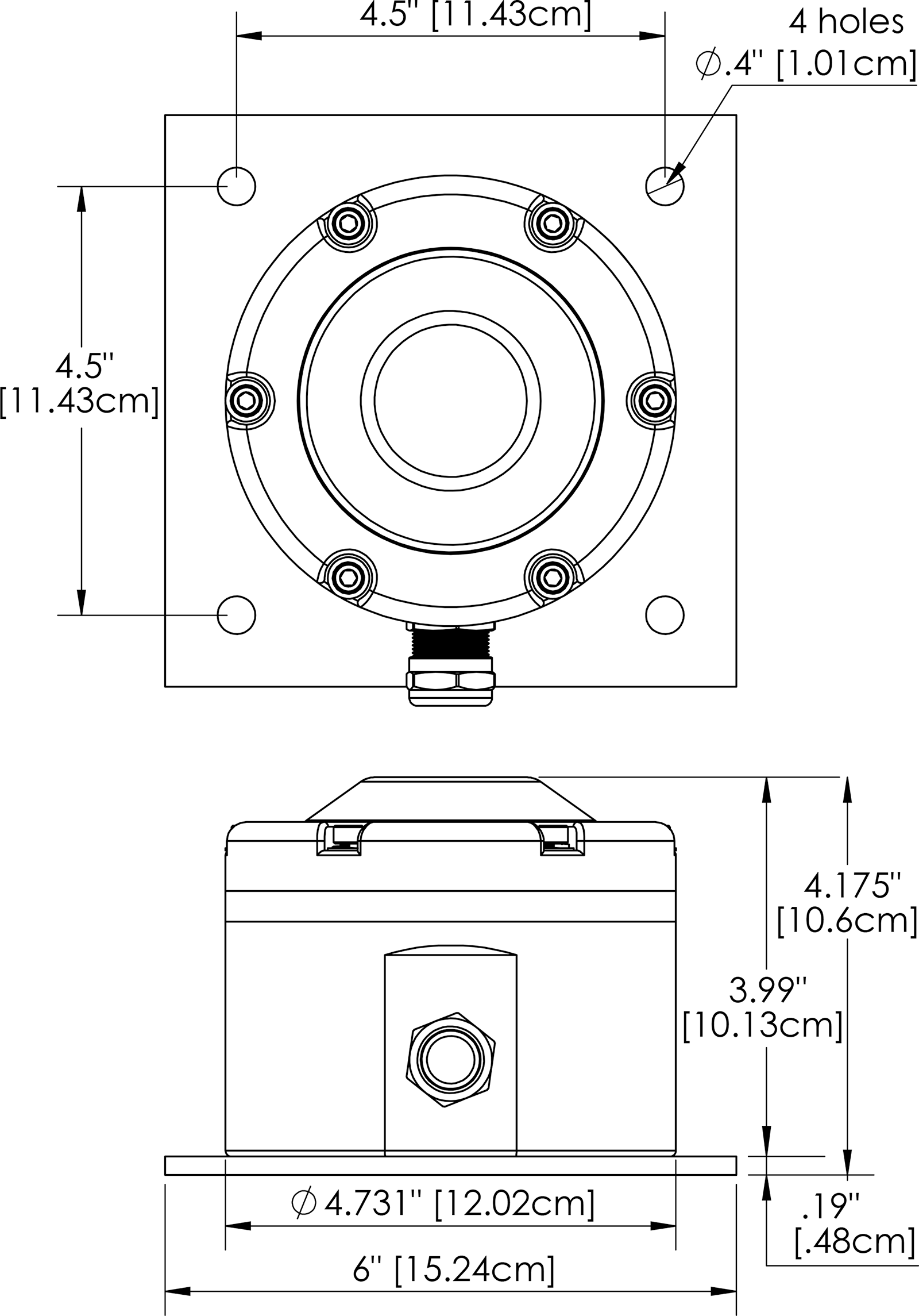

• Height: 4.175″ [10.6 cm]
• Mounting plate: 6″ x 6″ x .19″ [15.2 x 15.2 x .48 cm]
• Weight: 10 lb. [4.5 kg]
• Power consumption: AC input = 7.2VA; DC input = 4W; IR AC input = 10.8VA; IR DC input = 7.2W
• Available in 10-30VDC, 100-240VAC, or 277VAC versions.
• Fixture grounding: internal.
• Includes 48″ [122 cm] of UL SO Cable 16AWG.
• Installation requires four 3/8″ [9.5 mm] bolts (not provided).
• Temperature range: -4°F/+131°F (-20°C/+55°C).
• Carton size: 0.3 cu. ft. (0.01 cu. meters); 8″ x 8″ x 8″ (20.32 x 20.32 x 20.32cm)

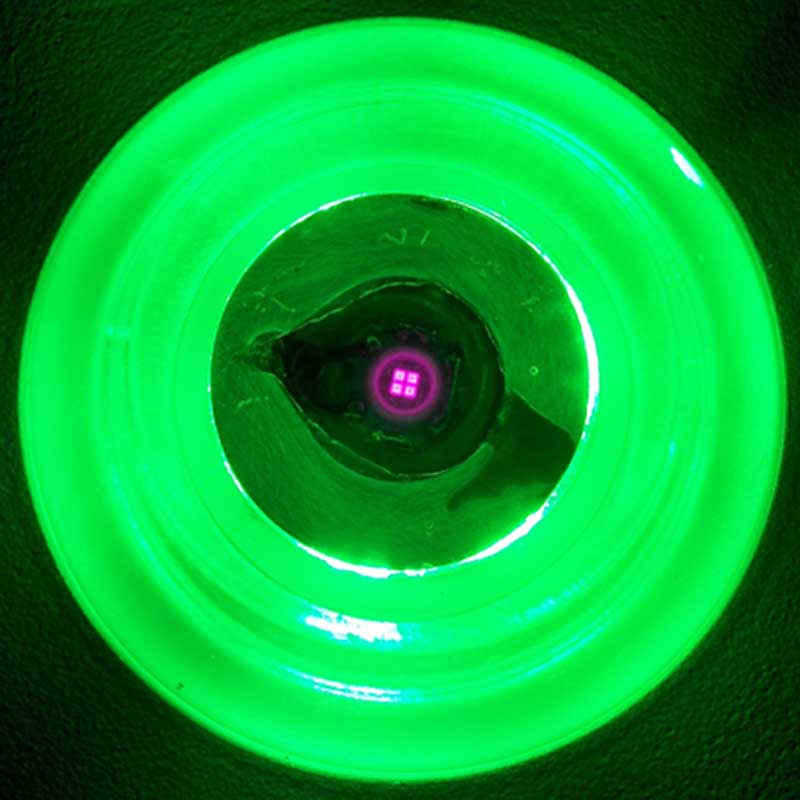

Visible/Infrared LED Option
• Night Vision Goggle (NVG) compatible.
• Infrared Output:
– Exceeds SAE Aerospace recommendations for Landing/Taxi Lights.
– Usable beam width: 55° to 125° vertical, 360° horizontal.
– Output wavelength: 850nm.
– Infrared does not dim with the “DCD” dimming option.
• Visible Output:
– Usable beam width: 30° vertical, 360° horizontal.
– Output wavelength: 530nm.
How to Specify the HL-590L LED Helideck Surface Mount Perimeter Light
The fixture shall be model HL-590L-(LED color)-(voltage) as marked by Flight Light Inc.
Construction:
• The fixture height shall not exceed 4.175″ [10.6 cm].
• The fixture shall be omnidirectional.
• The fixture shall be 304 stainless steel with nitric acid passivation.
• Hardware shall be 316 stainless steel.
• The fixture shall have a modular design comprised of 3 major parts: Mounting Plate, Bottom Casting and Top Casting. The Bottom and Top Casting are sealed by means of a Prism Clamp and O-ring.
• The Mounting Plate shall be square 6″ x 6″ [15.2 x 15.2 cm] and .19″ [.48 cm] thick.
• Fixture shall be ground mounted.
• The fixture shall include 48″ [122 cm] of UL SO Cable 16AWG.
LED/Light Cavity:
• LED and lens shall be field replaceable.
• LED lifetime expectancy: 50,000 hours.
• Power consumption shall not exceed 7.2VA for AC lights, 4W for DC lights, 10.8VA for IR AC lights and 7.2W for IR DC lights.
• Infrared output wavelength: 850nm
• Infrared output usable beam width: 55° to 125° vertical, 360° horizontal
• Visible output wavelength: 530nm
• Visible output beam width: 30° vertical, 360° horizontal
Compliances:
• Buy American Act Compliant
• FAA AC 150/5390-2D Heliport Design Guide
• Optical performance exceeds FAA AC 150/5390-2D Appendix G Specifications
• Transport Canada TP14371, AGA 7.16
Options (to be specified per each project):
• Infrared (must be used in conjunction with visible LEDs)
• Dimming (only available with the Flight Light controller)
