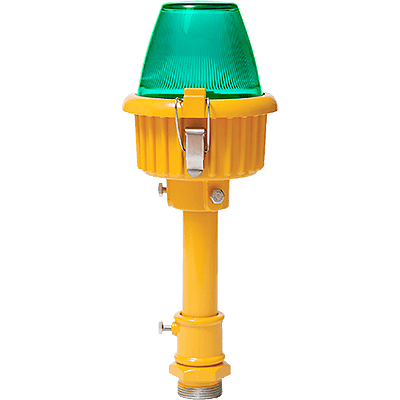

LED Heliport Perimeter Light
Applications
Medium intensity constant voltage elevated perimeter light helps mark helipad touchdown and lift-off area (TLOF).
Features
• Colored glass lens for easy daytime recognition.
• Double sealing system creates watertight head assembly.
• Rugged solid state components.
• Durable powder coat finish lasts longer.
• Reduces power consumption.
• Long-life LEDs.
• Cord set sealed to prevent insect entry.

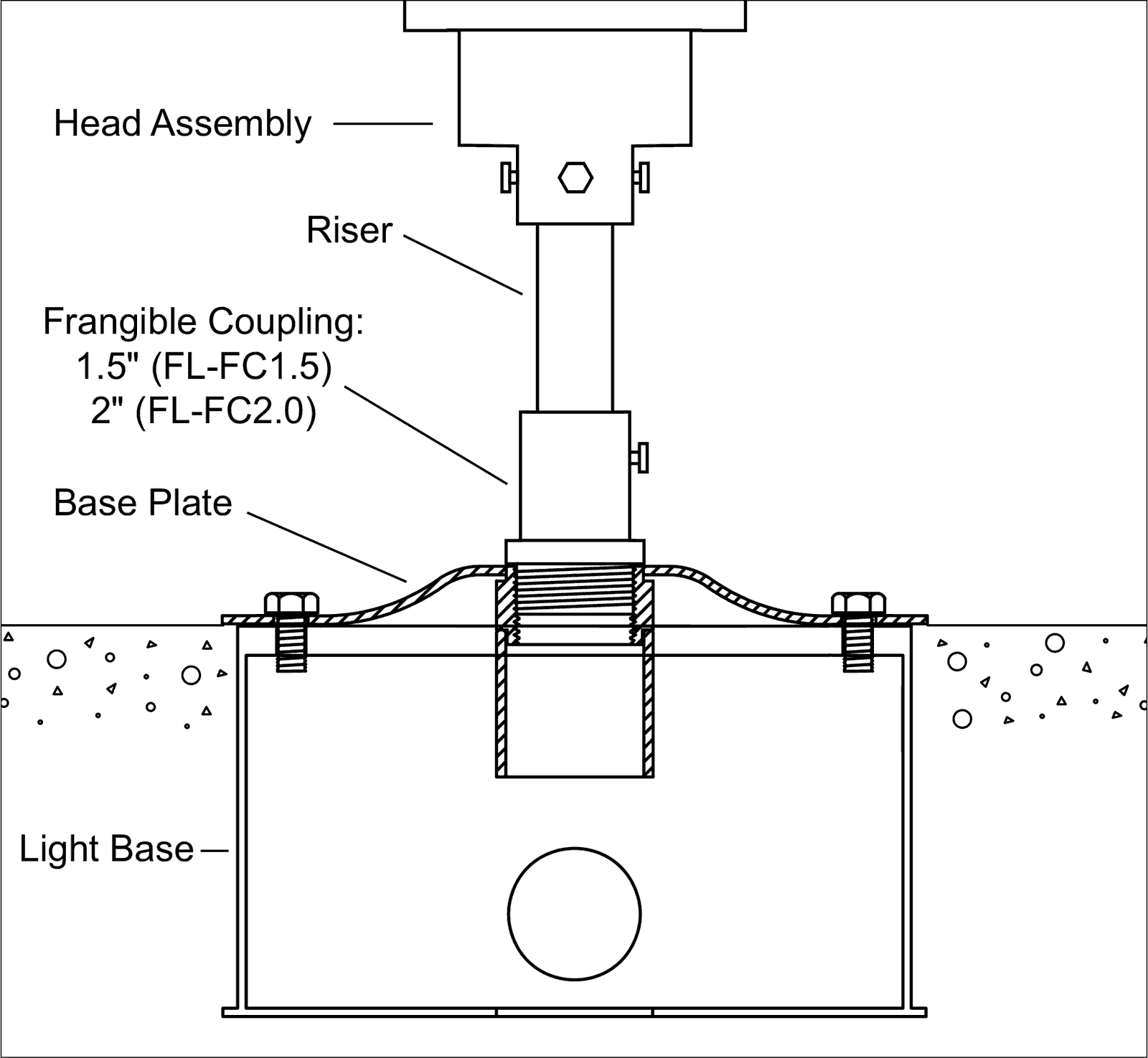

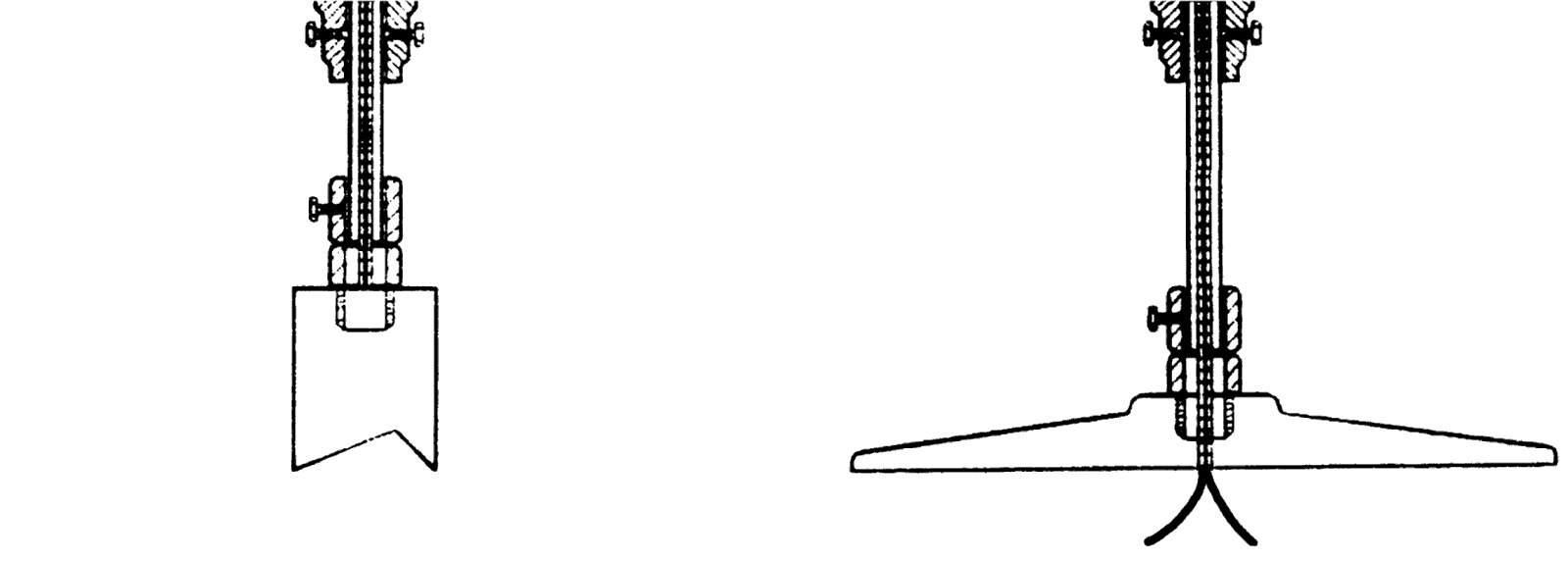

• Threaded 1.5″ frangible coupling or optional 2″ thread matches existing baseplates/stakes.

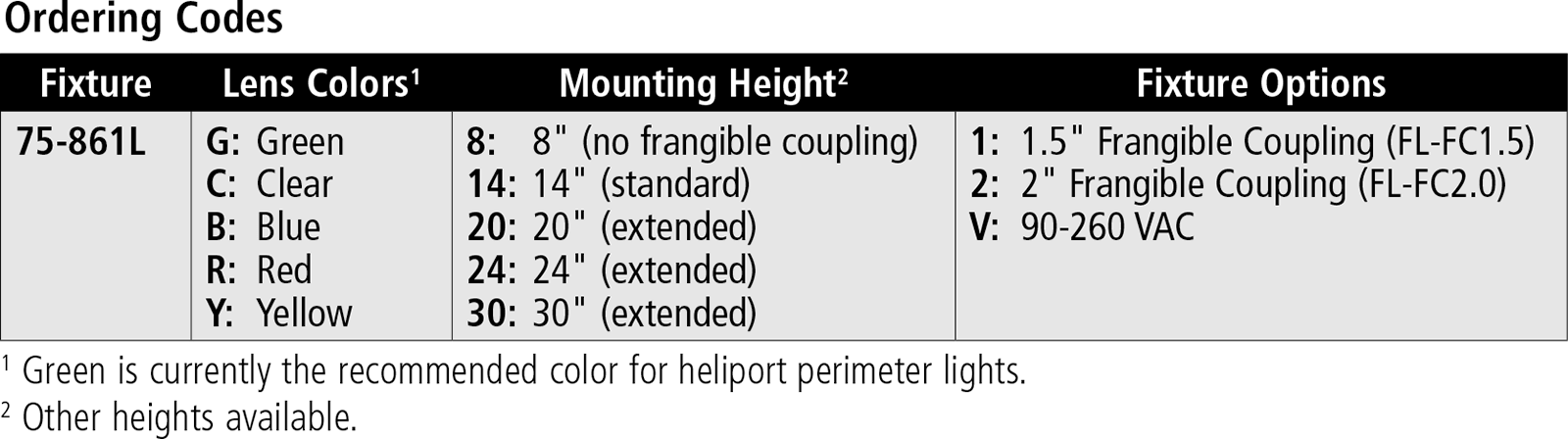

Ordering Codes
| Fixture | Lens Colors[1] | Mounting Height[2] | Fixture Options |
|---|---|---|---|
| 75-861L | G: Green C: Clear B: Blue R: Red Y: Yellow |
8: 8″ (no frangible coupling) 14: 14″ (standard) 20: 20″ (extended) 24: 24″ (extended) 30: 30″ (extended) |
1: 1.5″ Frangible Coupling (FL-FC1.5) 2: 2″ Frangible Coupling (FL-FC2.0) V: 90-260 VAC |
| [1] Green is currently the recommended color for heliport perimeter lights. [2] Other heights available. |
|||

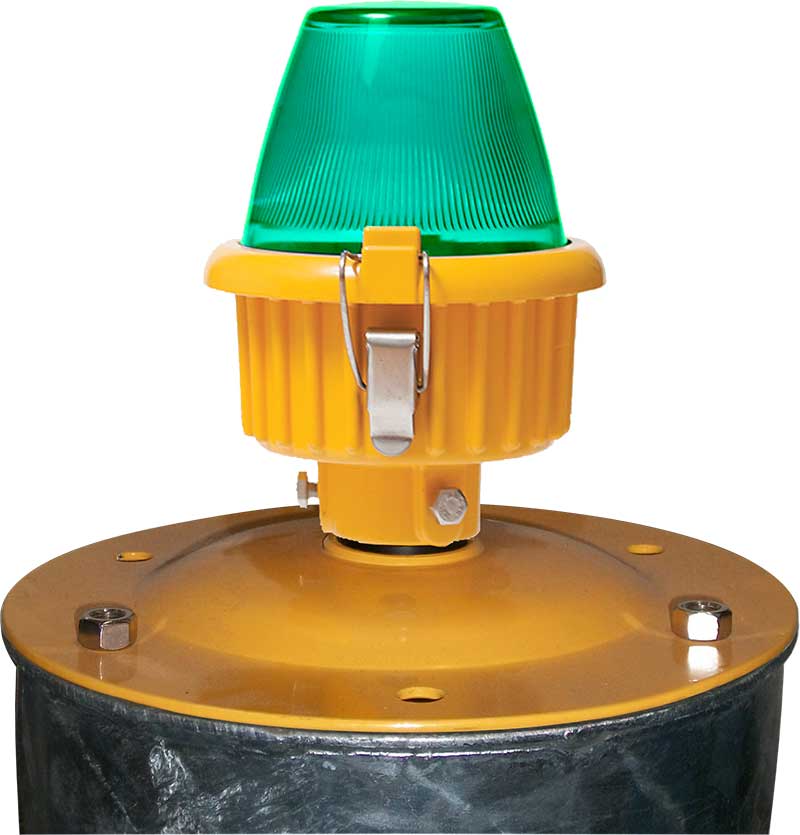

Shallow Base Mounted

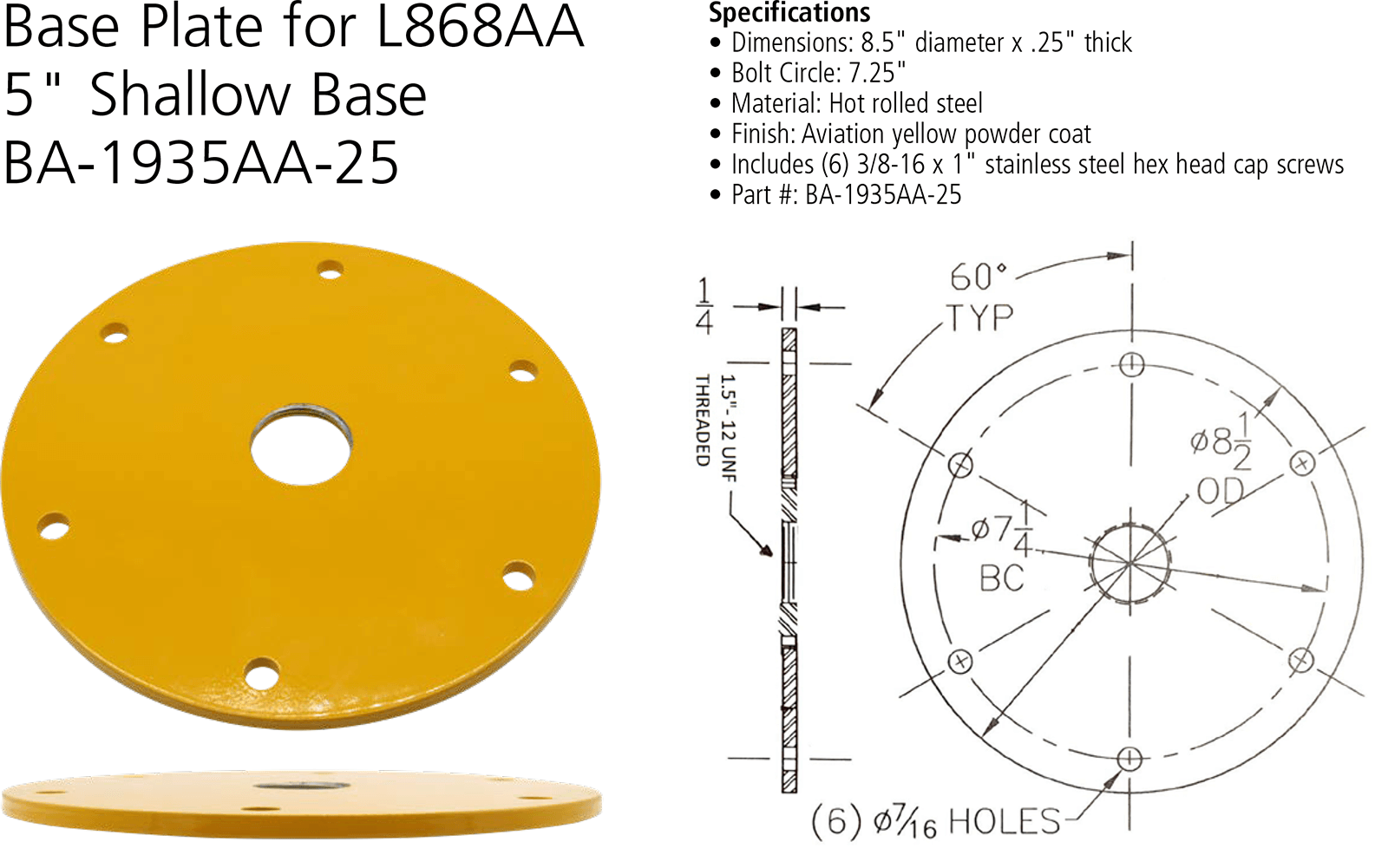

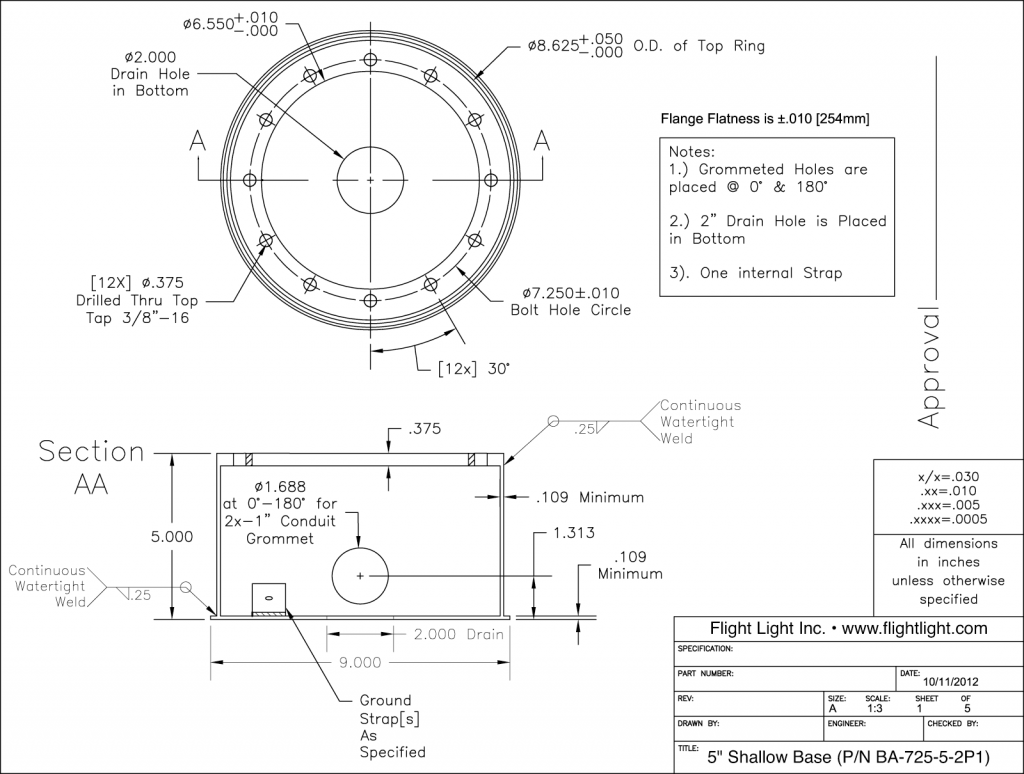

With this mounting option the overall installed height is less than 8 inches, complying with AC 150/5390-2B requirements for raised perimeter lights. 5″ Shallow Base and 8.5″ Base Plate (sold separately).
