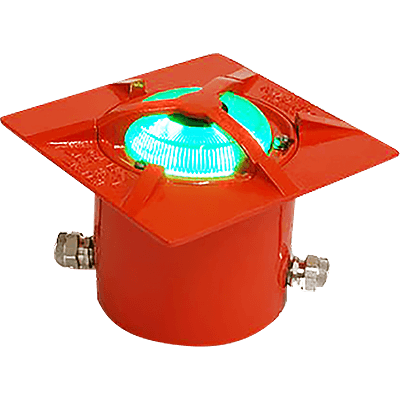

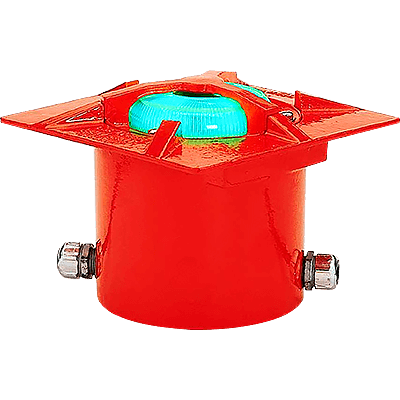

Model 1601 LED Heliport Recessed Flushlight

Applications

Our omnidirectional LED Heliport Recessed Flushlight is designed to be almost flush with the ground surface and is used in a variety of helipad lighting applications.
• Perimeter Lights: Outlines the heliport landing area
• Landing Direction Lights: Indicates the preferred approach
• Threshold Lights: Marks the front edge of the heliport

Features

• Cost-Saving, Energy-Efficient LEDs
– Long-lasting LED lamp uses less power, generates less heat and reduces the frequency of lamp changes
• Flush Mounted
– Recessed, almost flush with the surface
– Permits the obstruction-free movement of equipment and personnel
• Optically Designed Lens
– Omnidirectional beam assists the pilot in maintaining correct glide path
– Lens made of non-breakable plastic (Lexan)
• Heavy Construction
– Housed in a heavy, machined, cast aluminum enclosure
– Rugged cast aluminum guard fits precisely to protect the lens and optics without obstructing emissions
– Lens guard with 6 spokes available
• Easily Installed
– May be recessed in soil or solid aggregate or bolted to the edge of an elevated heliport
• Weatherproof
– Entire fixture is fully machined and double gasketed to make it weathertight

Specifications

• Case: Cast Aluminum
• Lens: Lexan
• Light Colors: Green, Yellow, Blue, Red or Clear
• Lamp: 8 Watt LED
• LED Operating Life: 100,000+ hours (10+ years)
• 3 year LED lamp module limited warranty
• Lens Guard: Cast Aluminum, 3 Spokes (standard), 6 Spokes (optional)
• Power: 90-300 VAC
• Dimensions: Flange Square: 8″; Depth: 5.25″; Bottom Diameter: 6″
• Weight: 8 lb.
• Finish: Polyester Powder Coating, Orange
