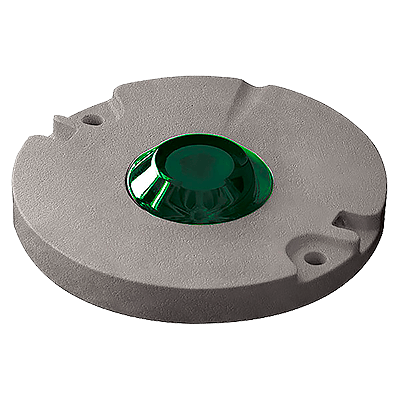

HL-292 LED or Halogen Heliport Perimeter Inset Light
Downloads
This product is available in our webstore – Shop Now
Compliances
• FAA AC 150/5390-2D Heliport Design Guide
• Exceeds FAA AC 150/5390-2D Appendix G Specifications
• ICAO Annex 14, Volume II
• UL 1598 Standard: IFAO.E346137 (U.S.), IFAO7.E346137 (Canada) (only “LPUL” lamp is UL listed)
• Transport Canada TP14371, AGA 7.16
• IP67 Compliant
Applications

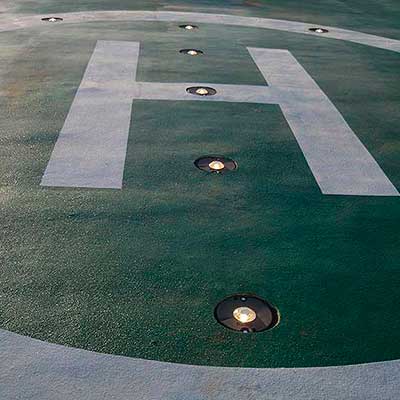

Used to replace elevated helipad perimeter lights at locations where the lights are frequently knocked down by aircraft or maintenance vehicles.
Why Our HL-292 is Better
• Lightweight and robust aluminum alloy construction.
• HL-292 has been tested to 1,000 PSI (pounds per square inch) and conforms with both FAA and IEC requirements.
• Pressure test plug ensures moisture-proof light cavity.
• Prism removal and replacement achieved without need for adhesives or sealants.
• Pre-focused optics simplify maintenance.
• Corrosion resistant anodized finish.
• Available in 10-30VDC, 120-240VAC or 277VAC versions.
• Direct retrofit, drop in replacement. Factory retrofits available for your existing halogen fixtures.
• Independent intensity testing has provided results which exceed FAA AC 150/5390-2D Appendix G specifications.
• Available for non-airport applications such as heliport and architectural lighting with LED or 50W, 120V or 240V lamps.

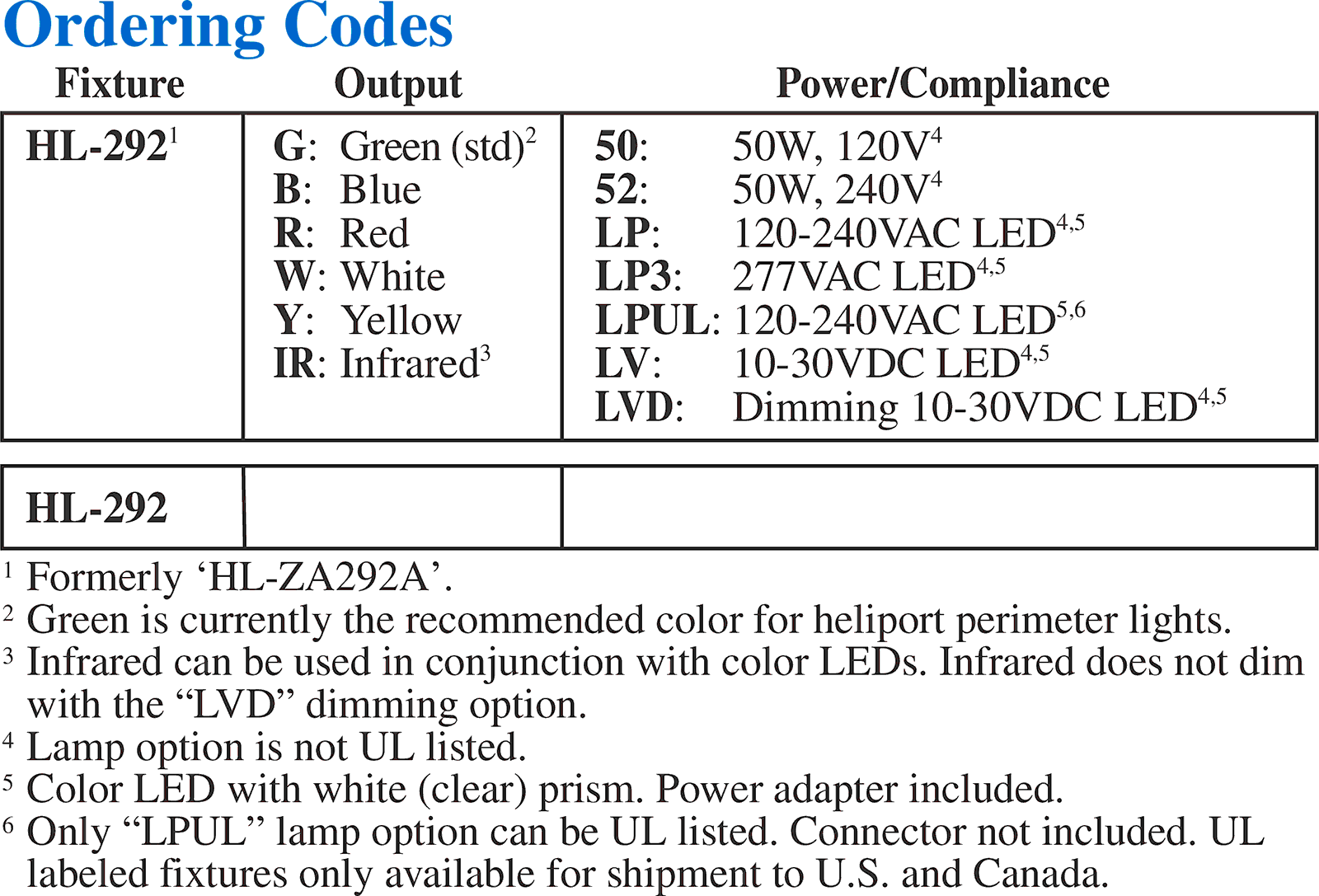

Ordering Codes
| Fixture | Output | Power/Compliance | |
|---|---|---|---|
| HL-292[1] | G: Green (std)[2] B: Blue R: Red W: White Y: Yellow IR: Infrared[3] |
50: 50W, 120V[4] 52: 50W, 240V[4] LP: 120-240VAC LED[4][5] LP3: 277VAC LED[4][5] LPUL: 120-240VAC LED[5][6] LV: 10-30VDC LED[4][5] LVD: Dimming 10-30VDC LED[4][5] |
|
| [1] Formerly ‘HL-ZA292A’. [2] Green is currently the recommended color for heliport perimeter lights. [3] Infrared can be used in conjunction with color LEDs. Infrared does not dim with the “LVD” dimming option. [4] Lamp option is not UL listed. [5] Color LED with white (clear) prism. Power adapter included. [6] Only “LPUL” lamp option can be UL listed. Connector not included. UL labeled fixtures only available for shipment to U.S. and Canada. |
|||

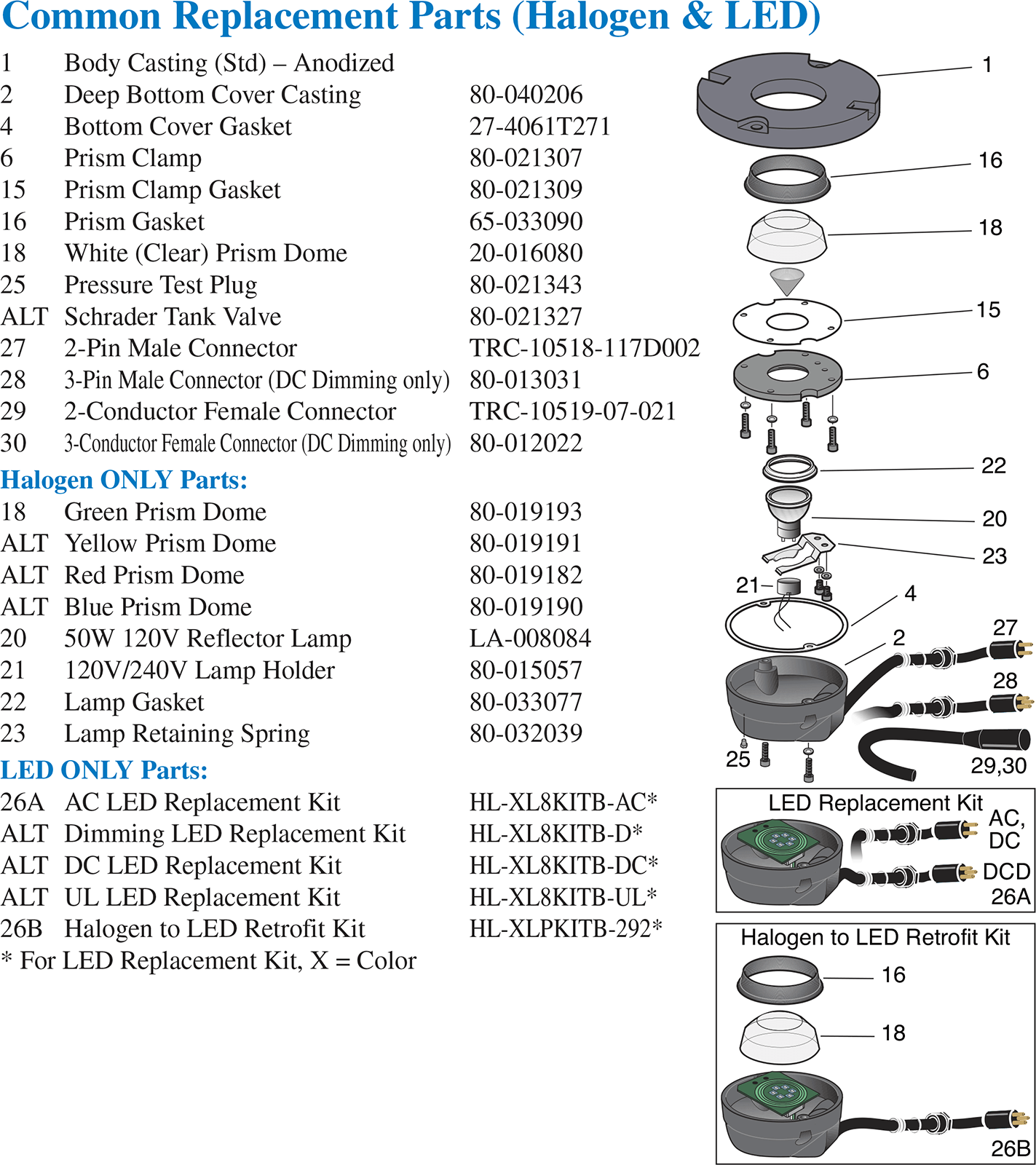

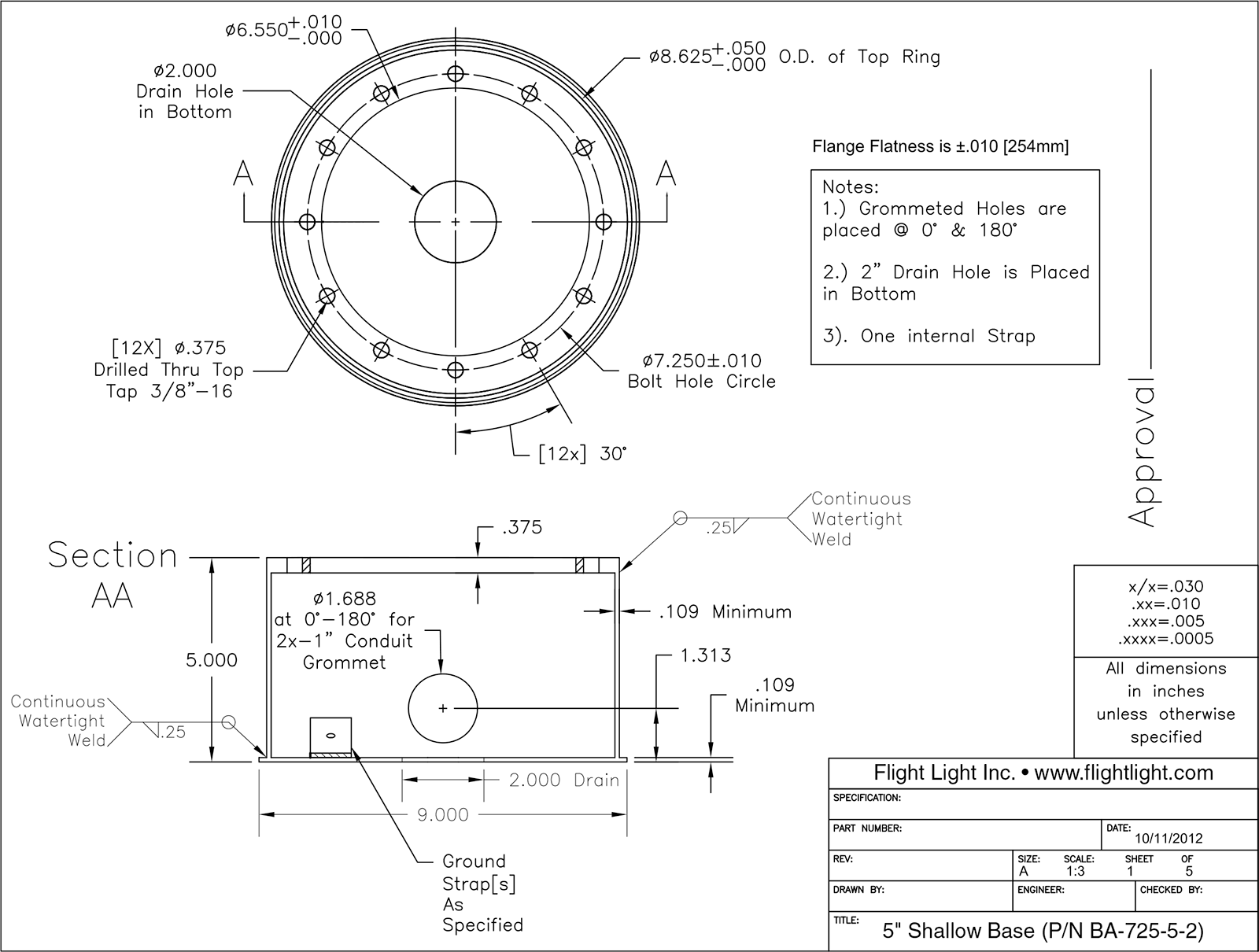

Specifications

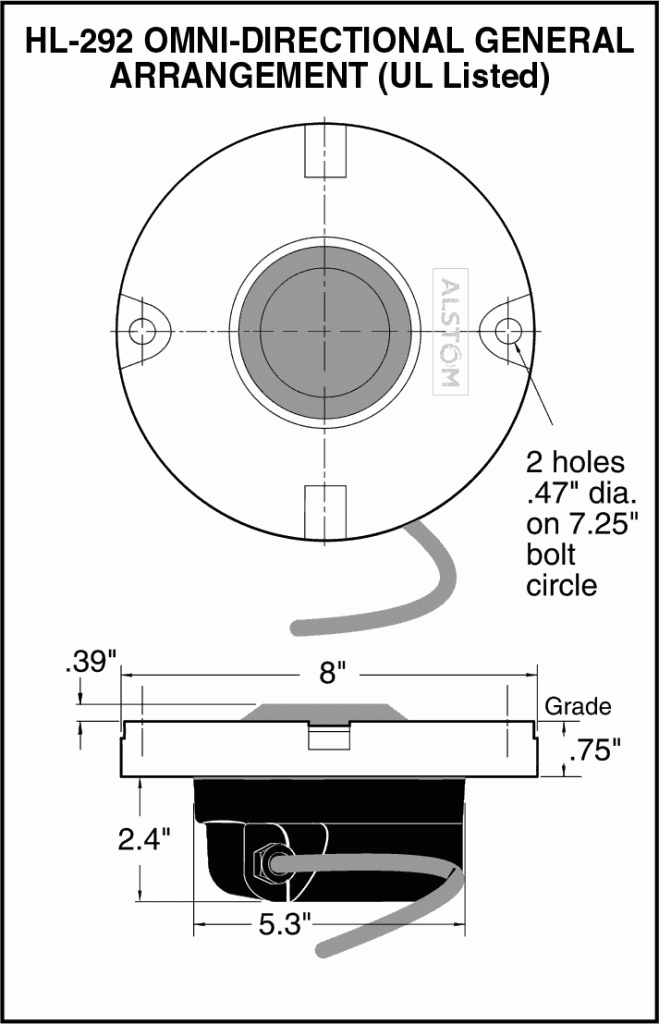

• Low profile: .39″ (10mm).
• Light channel within .2″ (5mm) of grade.
• Corrosion resistant finish meets U.S. Military Standard Salt Fog Test (MIL-STD-810E, Method 509.3) and IEC EN 60068-2-11 (Test Kb, severity 3).
• Color beam variations achieved by dichroic coating.
• Includes 48″ [122 cm] of UL SO Cable 16AWG (UL Version).
• 8″ style: net weight 6.6 lbs. (3kg), gross weight 7.7 lbs. (3.5kg). Carton size: .23 cu. ft. (.007 cu. meters); 9″ (d) x 9″ (w) x 5″ (h) (229mm (w) x 229mm (d) x 127mm (h))
• Temperature range: -4°F/+131°F (-20°C/+55°C).
LED Version
• Cost-saving, energy-efficient LEDs.
• Power Consumption: AC input = 7.2VA; DC input = 4W; IR AC input = 10.8VA; IR DC input = 7.2W
• Low maintenance – LED light source has 50,000 hour lifetime (50X longer than halogen).
• Monochromatic output of LEDs is more conspicuous than halogen.
• Pilots prefer LED over halogen because of increased visibility.
• With our Dimming Controller option, the lights can be dimmed at night to reduce glare – select from three brightness levels.
• LED can be used with 120V/240V, 50Hz/60Hz power.
• Power adapter included.

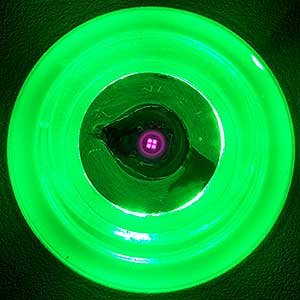

Visible/Infrared LED Option
• Night Vision Goggle (NVG) compatible.
• Optical Specifications – Infrared Output:
– Exceeds SAE Aerospace recommendations for Landing/Taxi Lights.
– Usable beam width: 55° to 125° vertical, 360° horizontal.
– Output wavelength: 850nm.
– Infrared does not dim with the “LVD” dimming option.
• Optical Specifications – Visible Output:

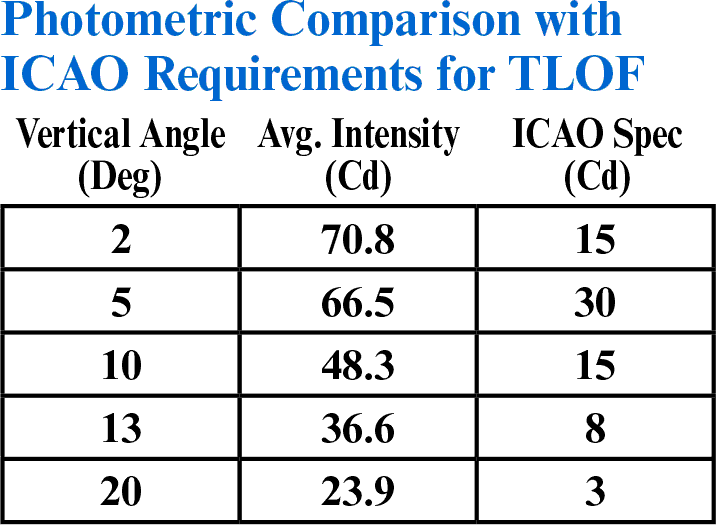

– Exceeds ICAO requirements for green LEDs (see photometric chart).
– Usable beam width: 30° vertical, 360° horizontal.
– Output wavelength: 530nm.
• Electrical Specifications:
– Input voltage range: 120-240VAC (UL listed), 277VAC (not UL listed).
– Input frequency: 50 or 60Hz.
– Input current: 40mA AC.
– Input power to the fixture: 10.8 VA.
– Fixture is internally grounded for installer safety.
