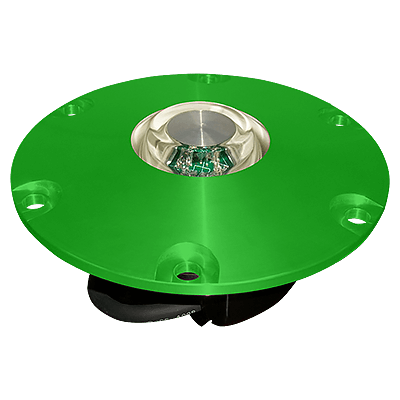

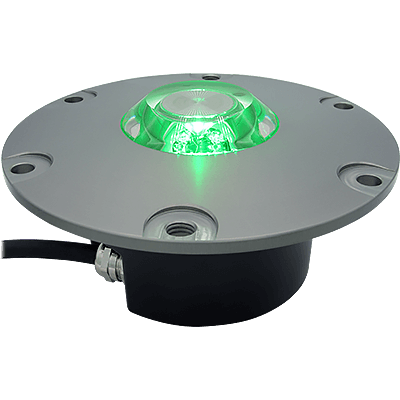

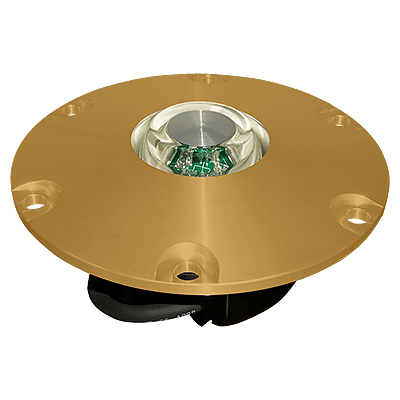

HL-392 LED or Halogen 8″ Helipad Semi-Flush Perimeter Inset Light
Downloads
This product is available in our webstore – Shop Now
Compliances
• FAA AC 150/5390-2D Heliport Design Guide
• Exceeds FAA AC 150/5390-2D Appendix G Specifications
• ICAO Annex 14, Volume II for TLOF
• UL 1598 Standard: IFAO.E346137 (U.S.), IFAO7.E346137 (Canada) (only “LPUL” lamp is UL listed)
• Transport Canada TP14371, AGA 7.16
• IP67 Compliant
• Buy American Act Compliant
Applications

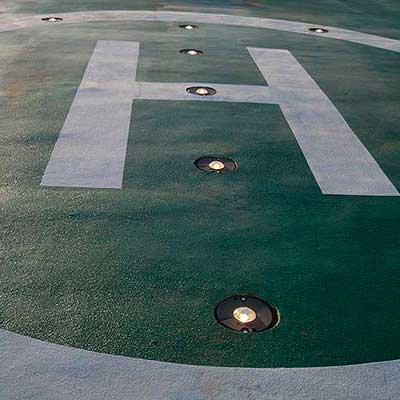

Semi-flush perimeter light helps mark helipad touchdown and lift-off area (TLOF) and/or final approach and takeoff area (FATO) for pavement heliports.

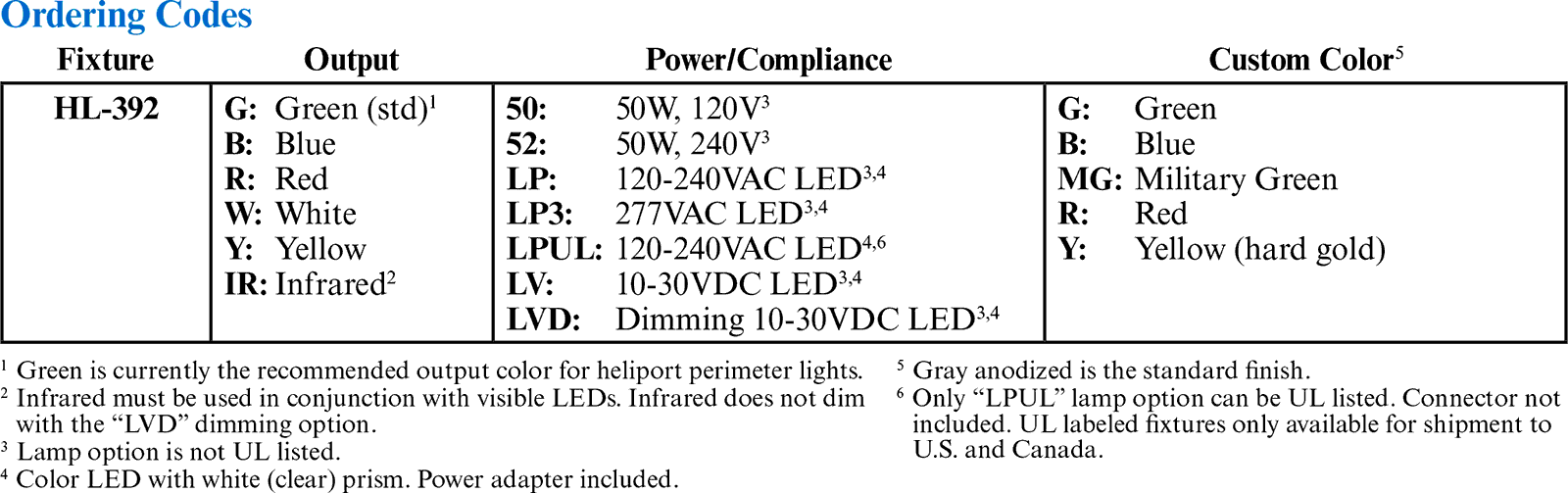

Ordering Codes
| Fixture | Output | Power/Compliance | Custom Color[5] | |
|---|---|---|---|---|
| HL-392 | G: Green (std)[1] B: Blue R Red W: White Y: Yellow IR: Infrared[2] |
50: 50W, 120V[3] 52: 50W, 240V[3] LP: 120-240VAC LED[3][4] LP3: 277VAC LED[3][4] LPUL: 120-240VAC LED[4][6] LV: 10-30VDC LED[3][4] LVD: Dimming 10-30VDC LED[3][4] |

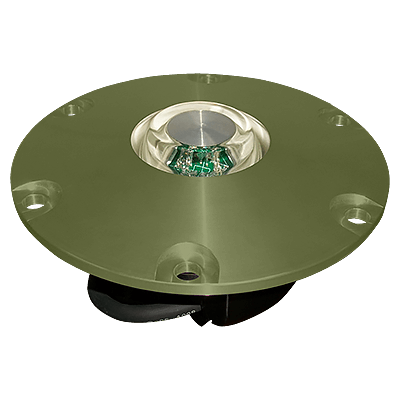

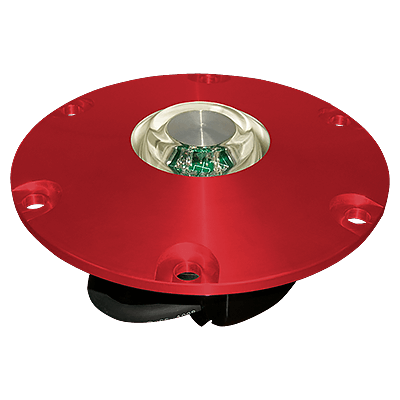

G: Green B: Blue MG: Military Green R: Red Y: Yellow (hard gold) |
|
| [1] Green is currently the recommended output color for heliport perimeter lights. [2] Infrared must be used in conjunction with visible LEDs. Infrared does not dim with the “LVD” dimming option. [3] Lamp option is not UL listed. [4] Color LED with white (clear) prism. Power adapter included. [5] Gray anodized is the standard finish. [6] Only “LPUL” lamp option can be UL listed. Connector not included. UL labeled fixtures only available for shipment to U.S. and Canada. |
||||
Why Our HL-392 is Better
• Recessed, semi-flush mounted, allows for obstruction-free movement of equipment and personnel.
• Lightweight and robust aluminum alloy construction.
• Hard anodized for increased wear and corrosion resistance.
• Pressure test plug ensures moisture-proof light cavity.
• Prism removal and replacement achieved without need for adhesives or sealants.
• Pre-focused optics simplify maintenance.
• Available in 10-30VDC, 120-240VAC or 277VAC versions.
• Direct retrofit, drop in replacement. Factory retrofits available for your existing halogen fixtures.
• Independent intensity testing has provided results which exceed FAA AC 150/5390-2D Appendix G specifications.
• Available for non-heliport applications such as architectural lighting.
Specifications
• Anodization: Aluminum fixtures, machined stock 6061T6. Hard Anodized MIL 8625 Type III, 1 mil thick; Class 1 for clear, Class 2 for color.
• Hardware shall be 304 stainless steel.

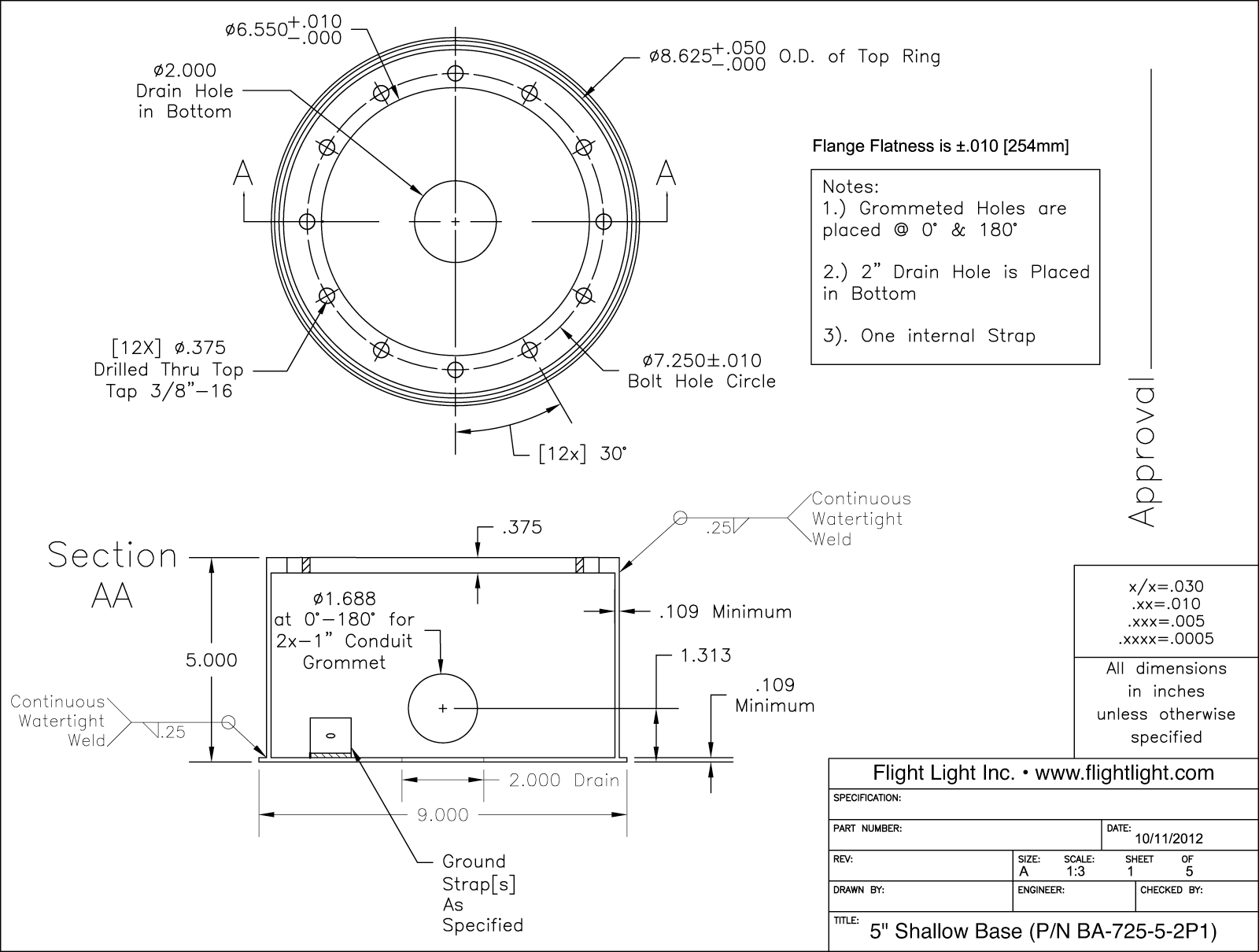

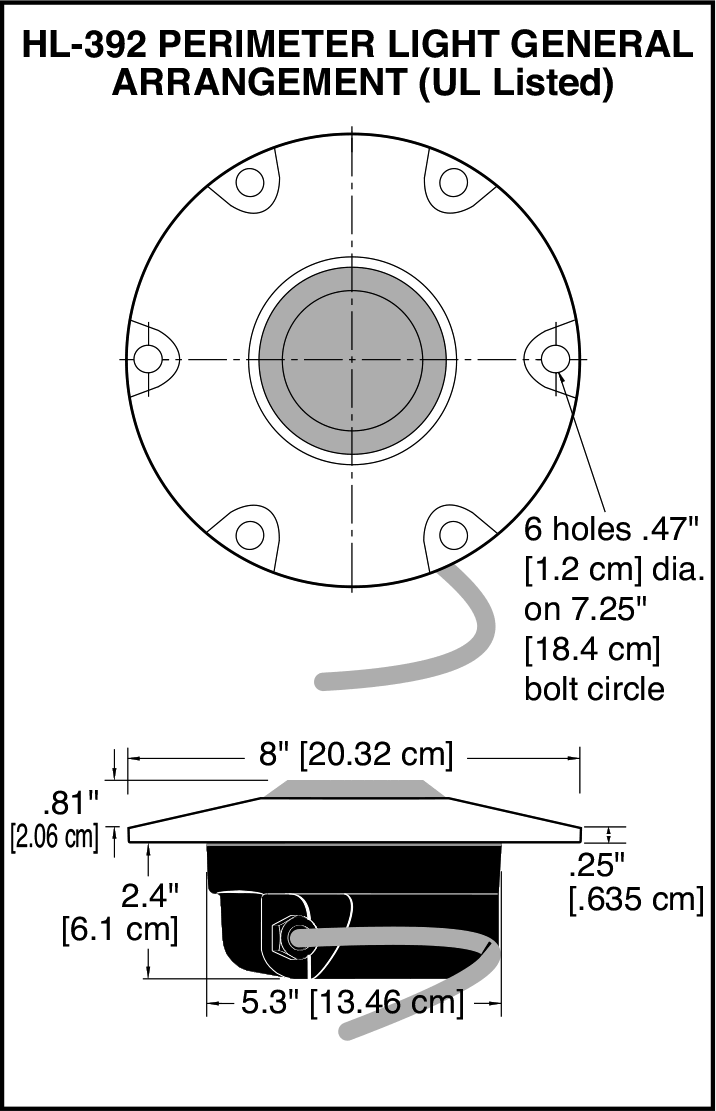

• Low profile: .81″ [2.06 cm] (base can mounted), 1.06″ [2.69 cm] (helideck mounted).
• Diameter: 8″ [20.32 cm]
• Bolt circle: 7.25″ [18.42 cm]
• Light channel within .2″ (.5 cm) of grade.
• Color beam variations achieved by dichroic coating.
• Fixture grounding: internal.
• Includes 48″ [122 cm] of UL SO Cable 16AWG (UL Version).
• Weight: 4.65 lb. (2.1 kg). Carton size: .23 cu. ft. (.007 cu. meters); 9″ (d) x 9″ (w) x 5″ (h) (22.86 cm (w) x 22.86 cm (d) x 12.7 cm (h))
• Temperature range: -4°F/+131°F (-20°C/+55°C).
LED Version
• Cost-saving, energy-efficient LEDs.
• Power Consumption: AC input = 7.2VA; DC input = 4W; IR AC input = 10.8VA; IR DC input = 7.2W
• Power adapter included.
• Low maintenance – LED light source has 50,000 hour lifetime (50X longer than halogen).
• Monochromatic output of LEDs is more conspicuous than halogen.
• Pilots prefer LED over halogen because of increased visibility.
• With our Dimming Controller option, the lights can be dimmed at night to reduce glare – 3 brightness levels.

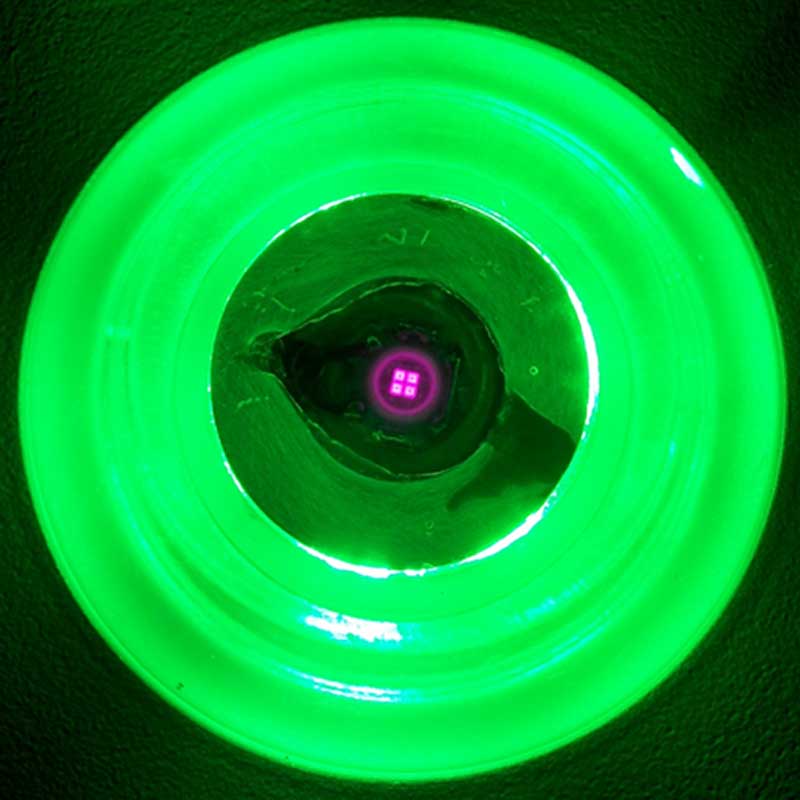

Visible/Infrared LED Option
• Night Vision Goggle (NVG) compatible.
• Infrared Output:
– Exceeds SAE Aerospace recommendations for Landing/Taxi Lights.
– Usable beam width: 55° to 125° vertical, 360° horizontal.
– Output wavelength: 850nm.
– Infrared does not dim with the “LVD” dimming option.
• Visible Output:

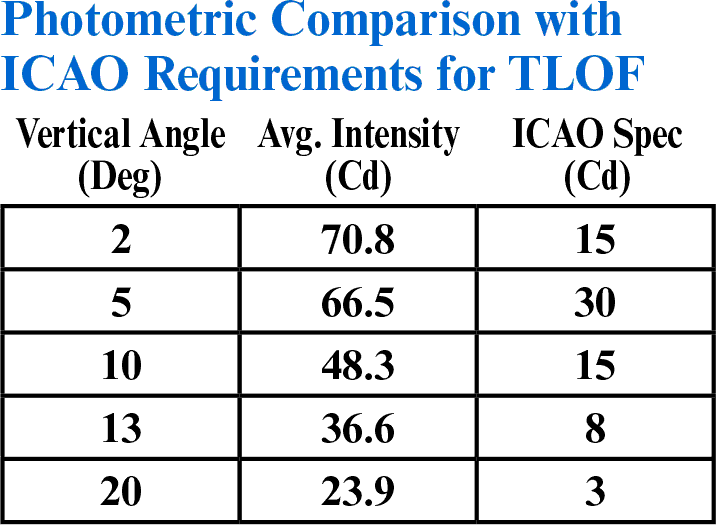

– Exceeds ICAO TLOF requirements for green LEDs (see photometric chart).
– Usable beam width: 30° vertical, 360° horizontal.
– Output wavelength: 530nm.
How to Specify the HL-392 Helipad Semi-Flush Perimeter Light
The fixture shall be model HL-392-(LED color)-(lamp type and voltage) as marked by Flight Light Inc.
Construction:
• The fixture shall be 8″ [20.32 cm] diameter, 7.25″ [18.42 cm] bolt circle.
• Casting thickness shall not exceed .25″ [.64 cm].
• The fixture shall be omnidirectional.
• The fixture shall be aluminum, anodized (Type III).

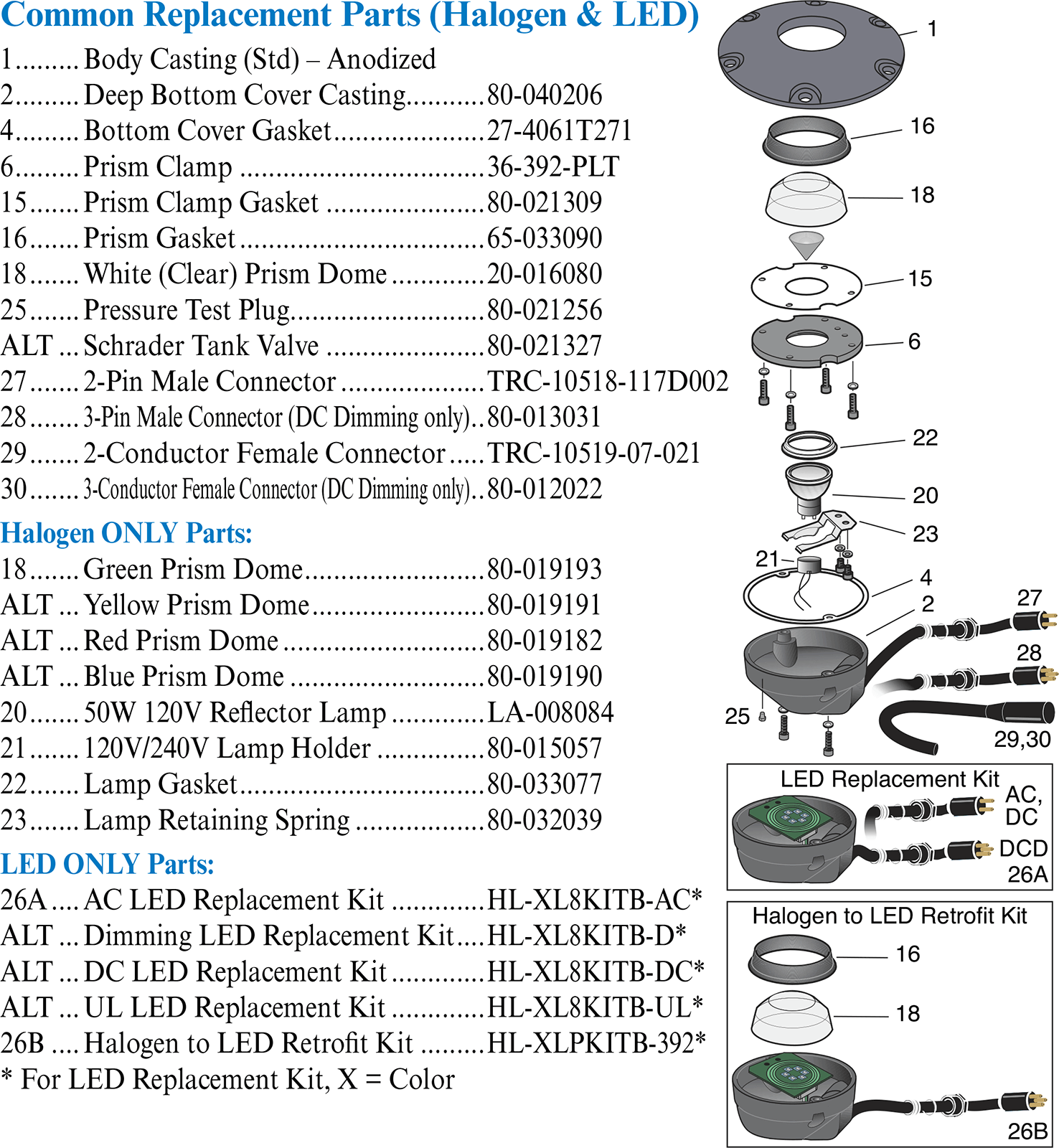

• The fixture shall have a modular design comprised of 2 major parts: Bottom Casting and Top Casting. The Bottom and Top Casting are sealed by means of a Prism Clamp and O-ring.
• Hardware shall be 304 stainless steel.
• Fixture shall ground internally.
• The fixture shall include 48″ [122 cm] of UL SO Cable 16AWG (UL Version).
LED/Light Cavity:
• LED lifetime expectancy: 50,000 hours.
• Power consumption shall not exceed 7.2VA for AC lights, 4W for DC lights, 10.8VA for IR AC lights and 7.2W for IR DC lights.
• Infrared output wavelength: 850nm
• Infrared output usable beam width: 55° to 125° vertical, 360° horizontal
• Visible output wavelength: 530nm
• Visible output beam width: 30° vertical, 360° horizontal
Compliances:
• IP67 Compliant
• Buy American Act Compliant
• FAA AC 150/5390-2D Heliport Design Guide
• ICAO Annex 14, Volume II for TLOF
• Optical performance exceeds FAA AC 150/5390-2D Appendix G Specifications
• Transport Canada TP14371, AGA 7.16
Options (to be specified per each project):
• Infrared (must be used in conjunction with visible LEDs)
• Dimming (only available with the Flight Light controller)
• UL Listed fixture
• Fixture Custom Color (default color is grey)
