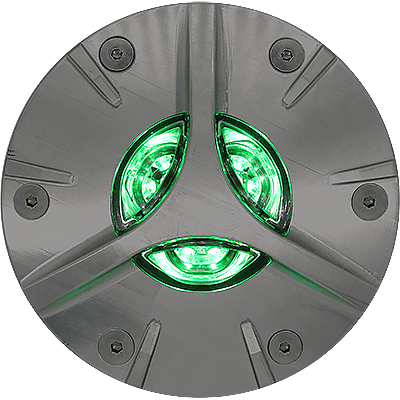

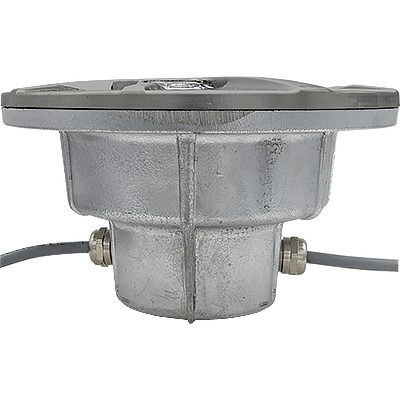

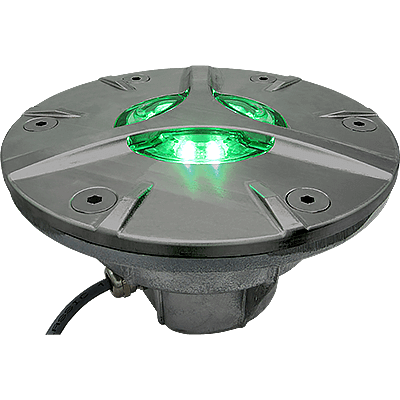

HL-692L LED Helideck/Helipad Semi-Flush Perimeter Inset Light
Downloads
This product is available in our webstore – Shop Now
Compliances
• FAA AC 150/5390-2D Heliport Design Guide

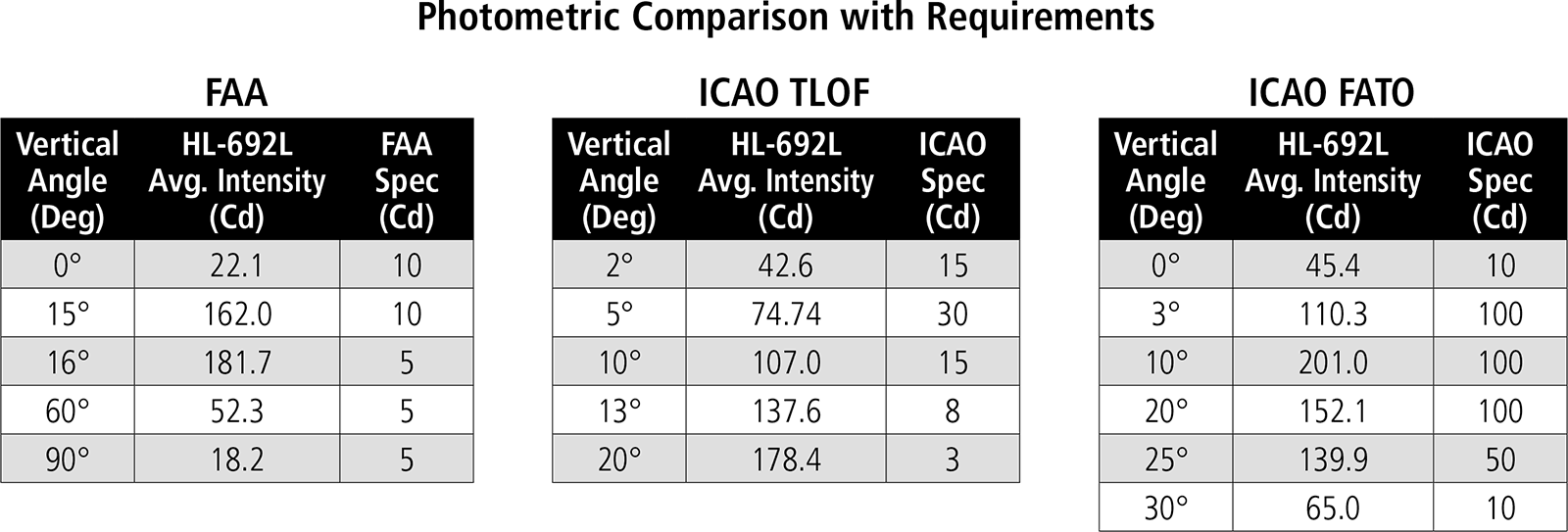

• Exceeds FAA AC 150/5390-2D Appendix G Specifications
• ICAO Annex 14, Volume II for TLOF and FATO
• Transport Canada TP14371, AGA 7.16
• IP68 Ingress Protection
• IK10 Impact Protection
• CE and RoHS Certified
Applications
Semi-flush perimeter light helps mark helipad touchdown and lift-off area (TLOF) and/or final approach and takeoff area (FATO) for metal helidecks and pavement heliports.
Features
• Robust aluminum construction
• IP68 water and dust resistant
• Sealed LED/electronics maximizes LED life
• Snowplow-safe design prevents lens damage
• Lens made from durable, UV-stabilized LEXAN polycarbonate
• Recessed, semi-flush mounted, allows for obstruction-free movement of equipment and personnel
• Rises only 0.6″ (15 mm) above surface
• High static load rating (44,000 lb.) reduces likelihood of damage from helicopters
• 360° high intensity, omnidirectional lighting coverage
• With our Dimming Controller option, the lights can be dimmed at night to reduce glare – 3 brightness levels
• Available for FAA (Green) or ICAO (White)
• Cost-saving, energy-efficient LEDs; 50,000 hour LED lifetime
• 850nm infrared LEDs optional
• AC or DC power supply options

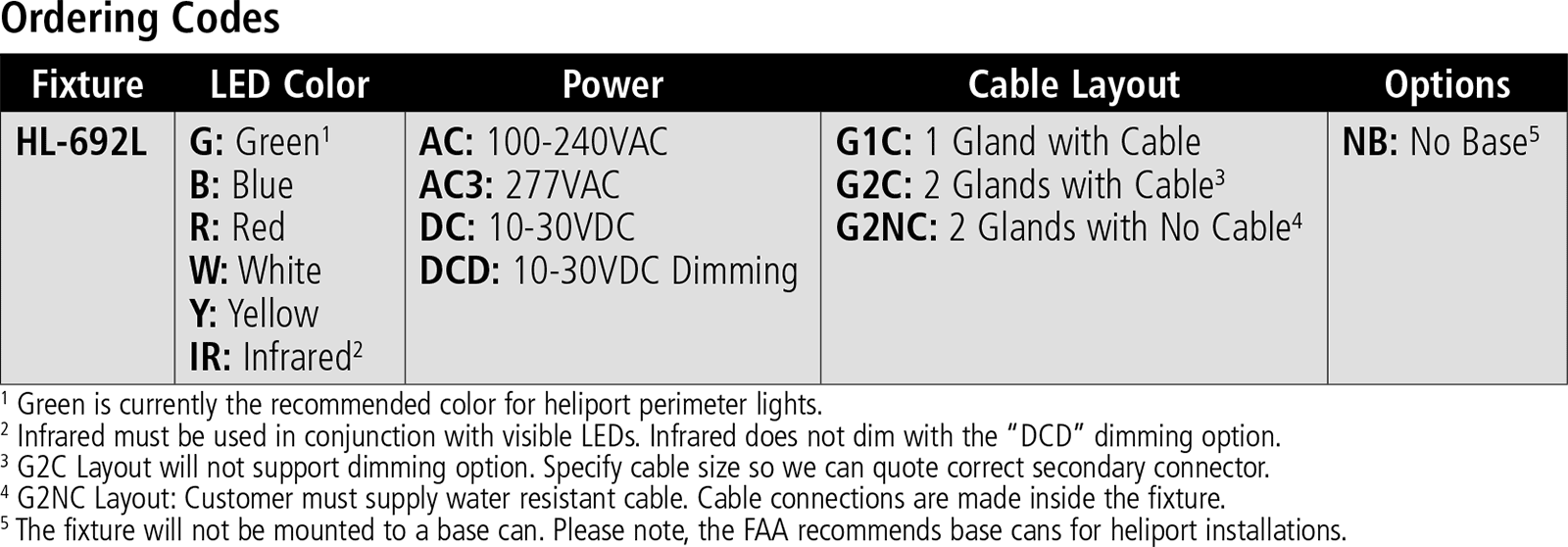

Ordering Codes
| Fixture | LED Color | Power | Cable Layout | Options |
|---|---|---|---|---|
| HL-692L | G: Green[1] B: Blue R: Red W: White Y: Yellow IR: Infrared[2] |
AC: 100-240VAC AC3: 277VAC DC: 10-30VDC DCD: 10-30VDC Dimming |
G1C: 1 Gland with Cable G2C: 2 Glands with Cable[3] G2NC: 2 Glands with No Cable[4] |
NB: No Base[5] |

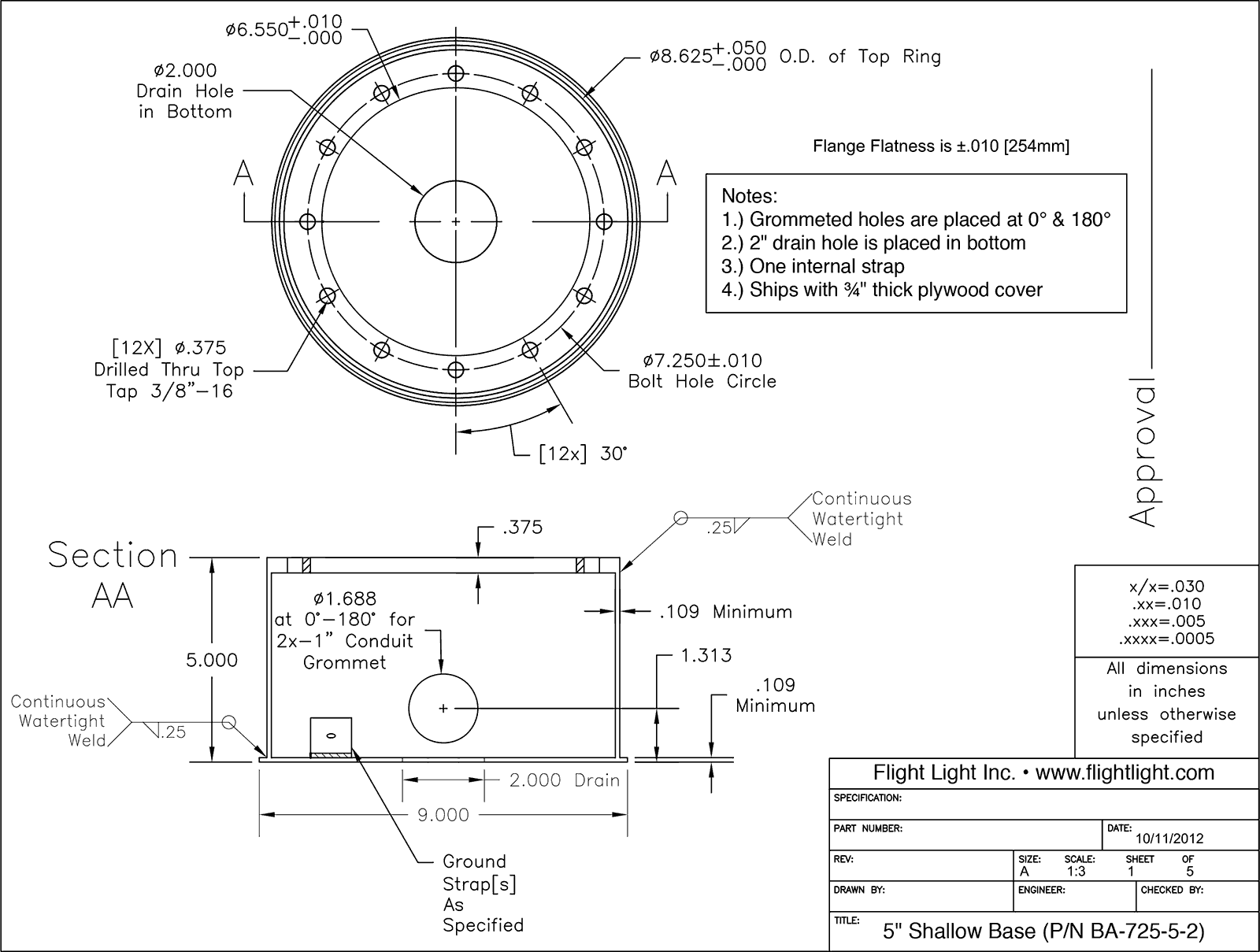

| [1] Green is currently the recommended color for heliport perimeter lights. [2] Infrared must be used in conjunction with visible LEDs. Infrared does not dim with the “DCD” dimming option. [3] G2C Layout will not support dimming option. Specify cable size so we can quote correct secondary connector. [4] G2NC Layout: Customer must supply water resistant cable. Cable connections are made inside the fixture. [5] The fixture will not be mounted to a base can. Please note, the FAA recommends base cans for heliport installations. |
||||
Specifications
• Voltage Range: 10-32 VDC or 85-305 VAC
• Power Consumption: DC Input = 14W; IR DC Input = 15W; AC Input = 27W; IR AC Input = 29W
• Requires water resistant UL Cable, OD = 0.24″ – 0.47″ (6-12mm). Recommended AWG (varies by application): 16-3/C SOOW 600V 90C.
• Temperature Range: -13°F/+185°F (-25°C/+85°C)
• LED Quantity: 6 LEDs (Green, Blue, Red, White, Yellow); optional 3 LEDs (Infrared)
• Infrared Wavelength: 850nm, Night Vision Goggle (NVG) Compatible
• Top Material: Gray painted aluminum AlSi12
• Bottom Material: Gray painted aluminum AlSi12
• Light Output: Polycarbonate window

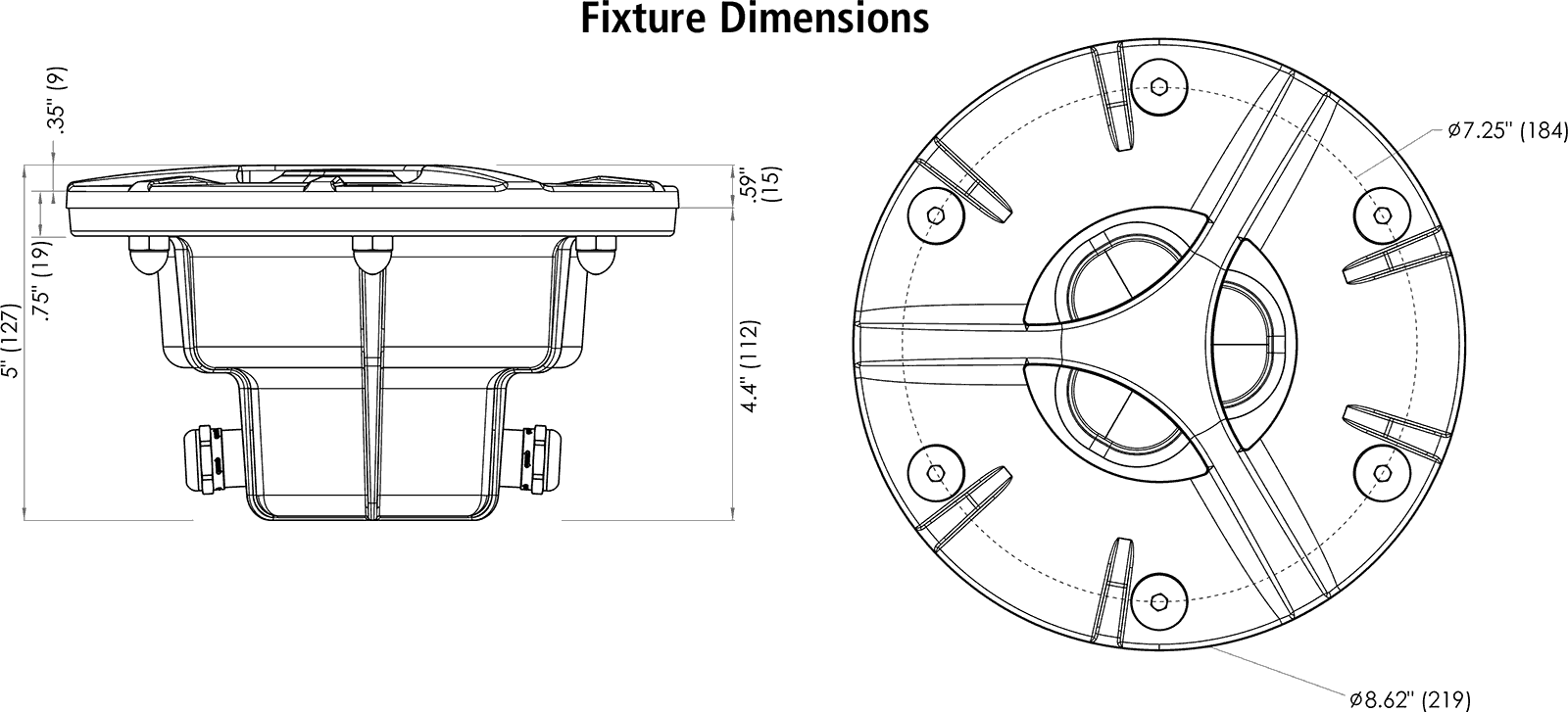

• Rising Above Surface: 0.6″ (15 mm)
• Static Load: Holds 1,000 PSI
• High Static Load Rating: 44,000 lb. min
• Weight: 8.6 lb. (3.9 kg)
• Diameter: 8.6″ (219 mm)
• Bolt Circle: 7.25″ (184 mm)
• Protection Index: IP68, IK10

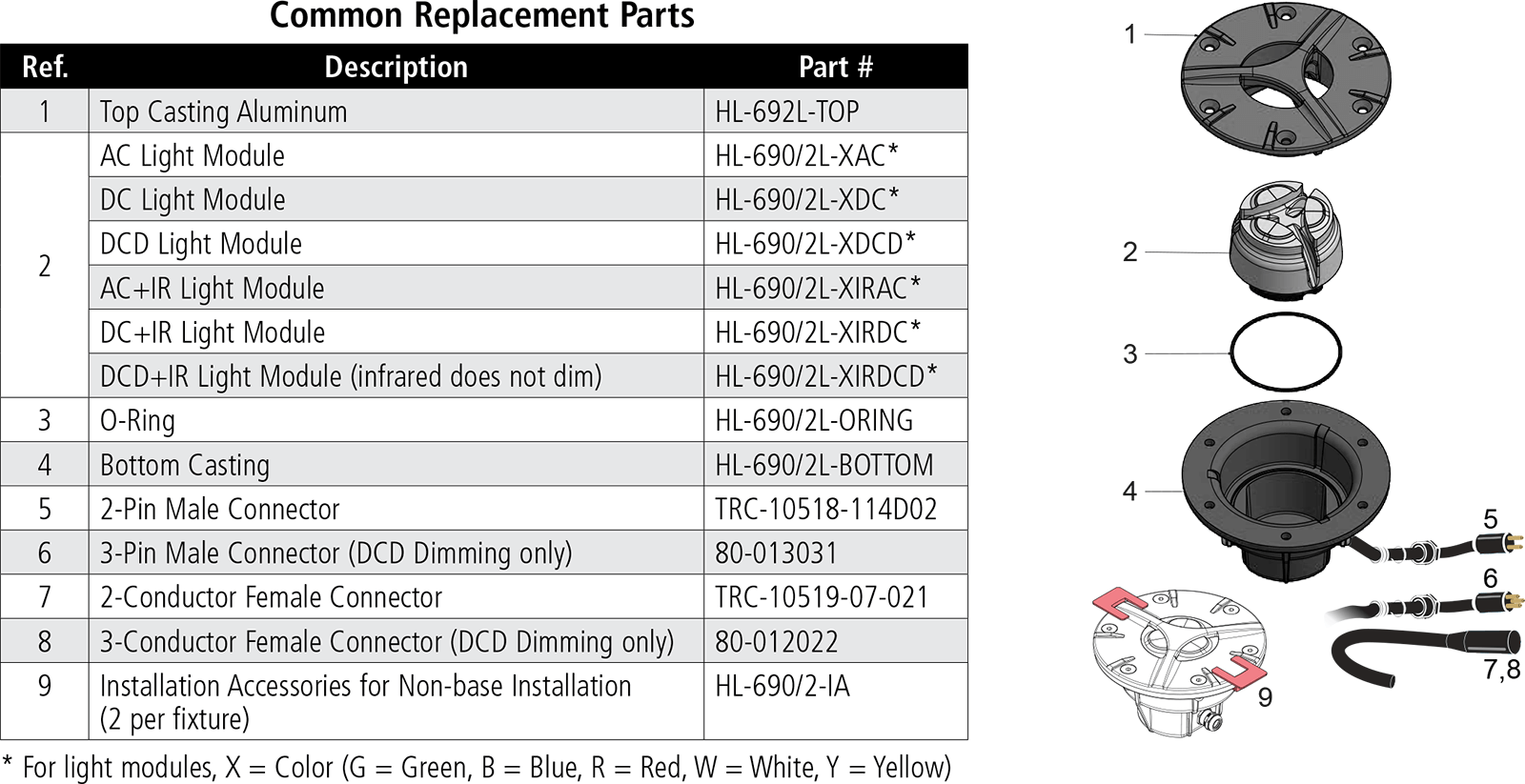

Common Replacement Parts
| Ref. | Description | Part # |
|---|---|---|
| 1 | Top Casting Aluminum | HL-692L-TOP |
| 2 | AC Light Module | HL-690/2L-XAC* |
| DC Light Module | HL-690/2L-XDC* | |
| DCD Light Module | HL-690/2L-XDCD* | |
| AC+IR Light Module | HL-690/2L-XIRAC* | |
| DC+IR Light Module | HL-690/2L-XIRDC* | |
| DCD+IR Light Module (infrared does not dim) | HL-690/2L-XIRDCD* | |
| 3 | O-Ring | HL-690/2L-ORING |
| 4 | Bottom Casting | HL-690/2L-BOTTOM |
| 5 | 2-Pin Male Connector | TRC-10518-114D02 |
| 6 | 3-Pin Male Connector (DCD Dimming only) | 80-013031 |
| 7 | 2-Conductor Female Connector | TRC-10519-07-021 |
| 8 | 3-Conductor Female Connector (DCD Dimming only) | 80-012022 |
| 9 | Installation Accessories for Non-base Installation (2 per fixture) | HL-690/2-IA |
| For light modules, X = Color (G = Green, B = Blue, R = Red, W = White, Y = Yellow) | ||
