Q-Controller for TD/PM System
Certificates
• CAP437 Certificate
• IP54
Applications
The controller has been programmed to make the Q-TD/PM System light the Touchdown/Positioning Marking (TD/PM) Circle and H of offshore helidecks.
The steady burning lighting segments provide coverage between 50% and 75% of the circumference as stated in CAP437, and are equidistantly placed with the gaps between them not less than 19.69″ (0.5m).
Ordering Codes
| Part Number |
|---|

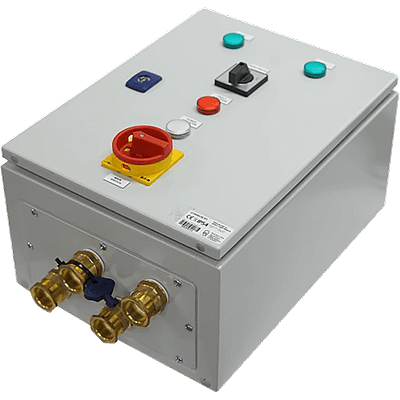

| Q64RI03C-R1: Q-Controller for TD/PM System |
Technical Specifications
• Application: Helideck
• Classification: Safe Area
• In Compliance With: ICAO annex 14, Volume II
• Intensity Modes: LED, steady burning
• Enclosure: Steel, powder coated RAL7035
• Mounting: Wall mount, 4x M8
• Input Voltage: 100-240 VAC 50-60Hz from circuit breaker C20A
• Cable Glands: 4x M25x1.5
• Cable Size: 12 – 19mm
• Consumption: 10 Watt
• Output: H-System: Green 530nm; C-System: Yellow 590nm
• Ambient Temperature: -13°F to 149°F (-25°C to +65°C)
• IP-Index: IP54
• Weight: 25.79 lb. (11.7 Kg)

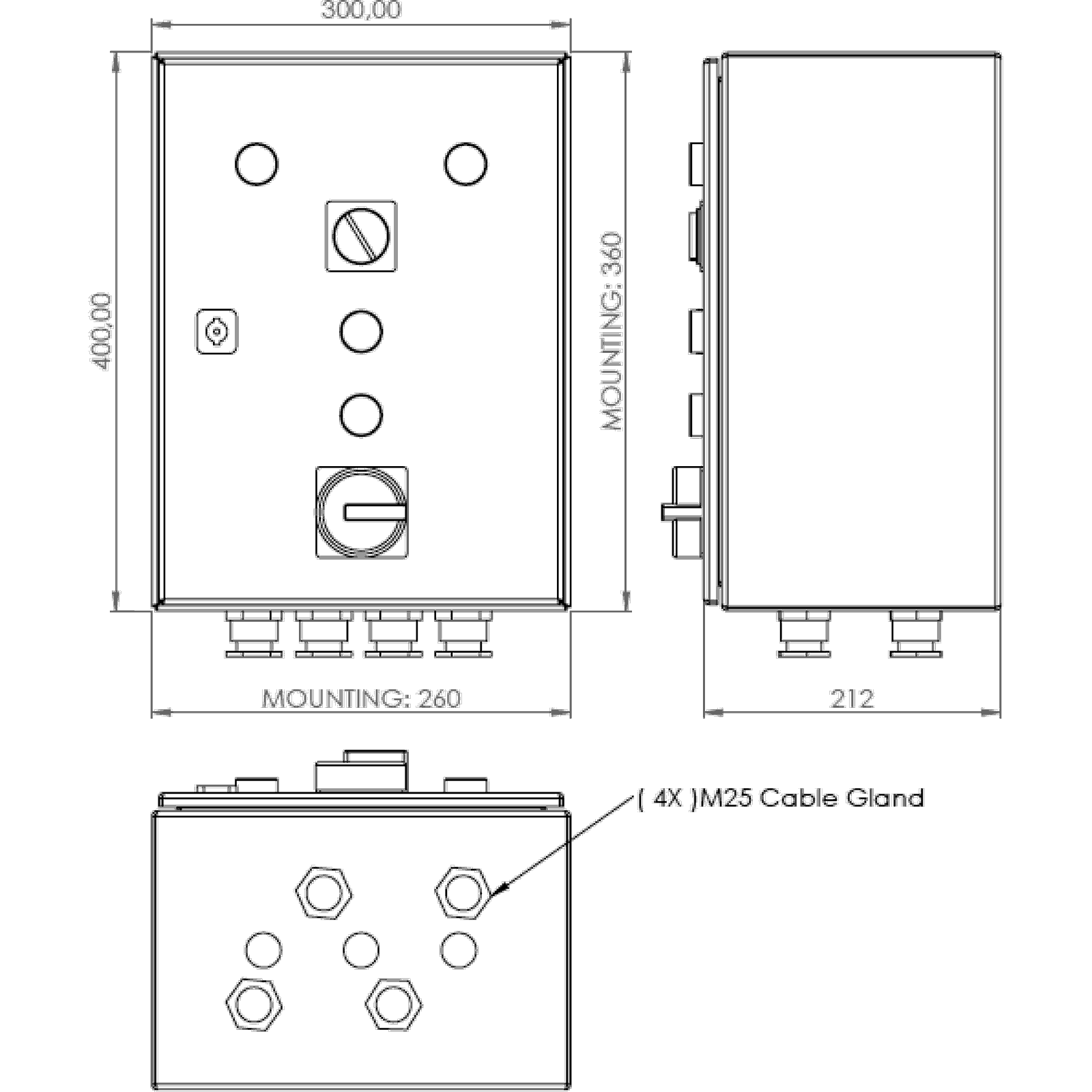

• Dimensions: 11.81″ x 15.75″ x 8.27″ (300x400x210mm)
