Runway Taxiway Retroreflective Markers FAA L-853
This product is available in our webstore – Shop Now
Compliance
• ETL Certified L-853: FAA AC 150/5345-39E

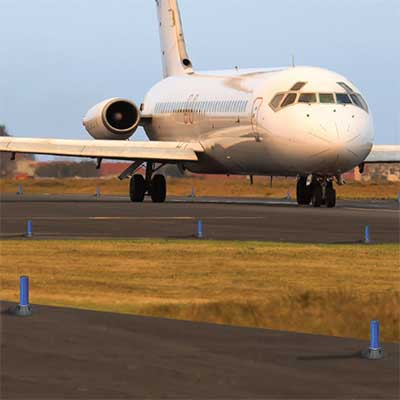

L-853 Airport Retroreflective Markers are used to delineate airport taxiways, runway edges, ends and thresholds. Our ETL Certified airport markers consist of a co-extruded polyethylene tube with Type IV retroreflective sheeting and a high strength plastic fastener. The markers can be installed on asphalt, concrete or soil.
Applications
• Airport taxiways
• Airport runway edges
• Airport runway ends
• Airport runway thresholds
• Runway arresting systems (EMAS)
Features
• ETL Certified FAA L-853 standard, AC 150/5345-39E
• Round post design provides 360° visibility
• Lightweight, all plastic construction and components – no above ground metal parts

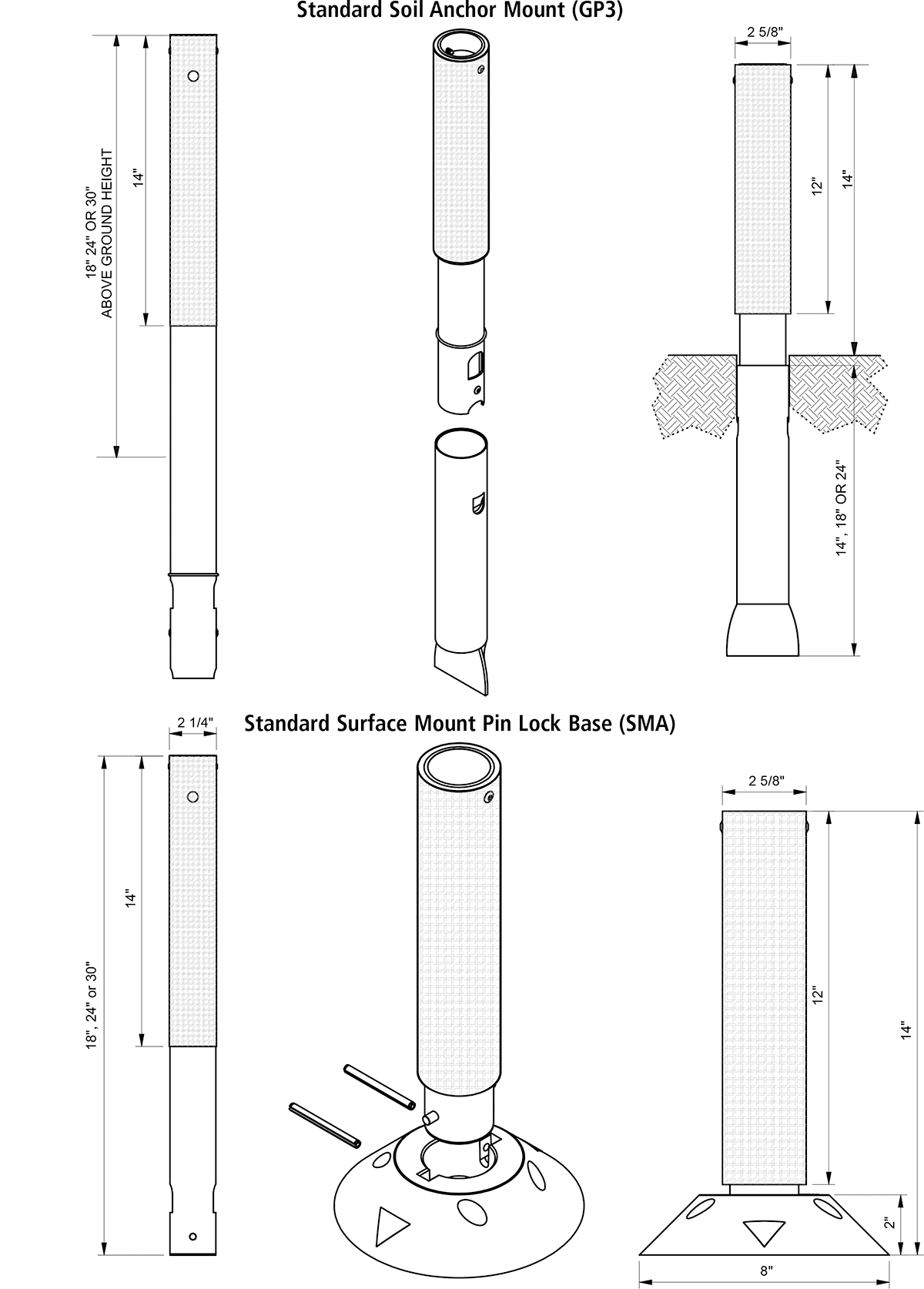

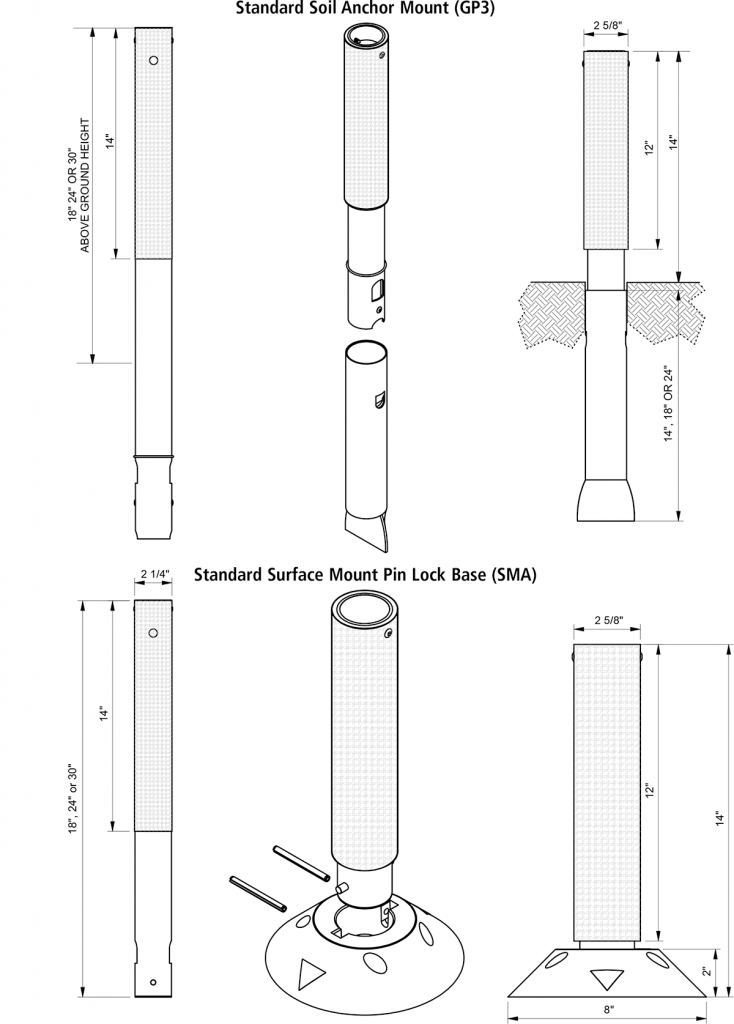

• Install on asphalt, concrete or soil – surface mount or soil anchor versions available
• Corrosion resistant galvanized steel soil anchor with integrated locking tabs for quick, easy marker installation and replacement
• Standard debris inhibiting plastic cap or optional anti-perch bird cap
Specifications

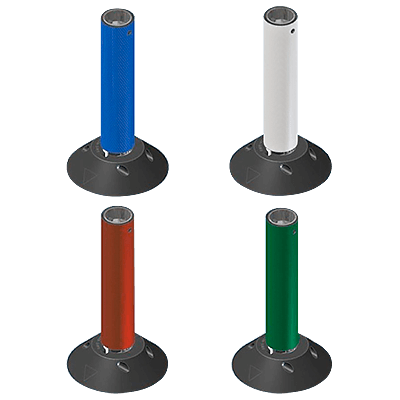

• Reflective Colors: Blue, Silver, Red, Green, Yellow
• Tube Color: White
• Tube Material: Polyethylene with ultraviolet inhibitors
• Marker Heights: 14″ (356 mm), 18″ (457 mm), 24″ (610 mm), 30″ (762 mm)
• Reflective Sheeting Heights:
– 12″ (305 mm) on 14″ markers
– 14″ (356 mm) on 18″, 24″, 30″ markers
• Standard SMA Base Diameter: 8″ (203 mm)
• Standard Soil Anchor Length: 18″ (457 mm)
• 96 square inches of ASTM D4956 Type IV flexible diamond grade reflective sheeting

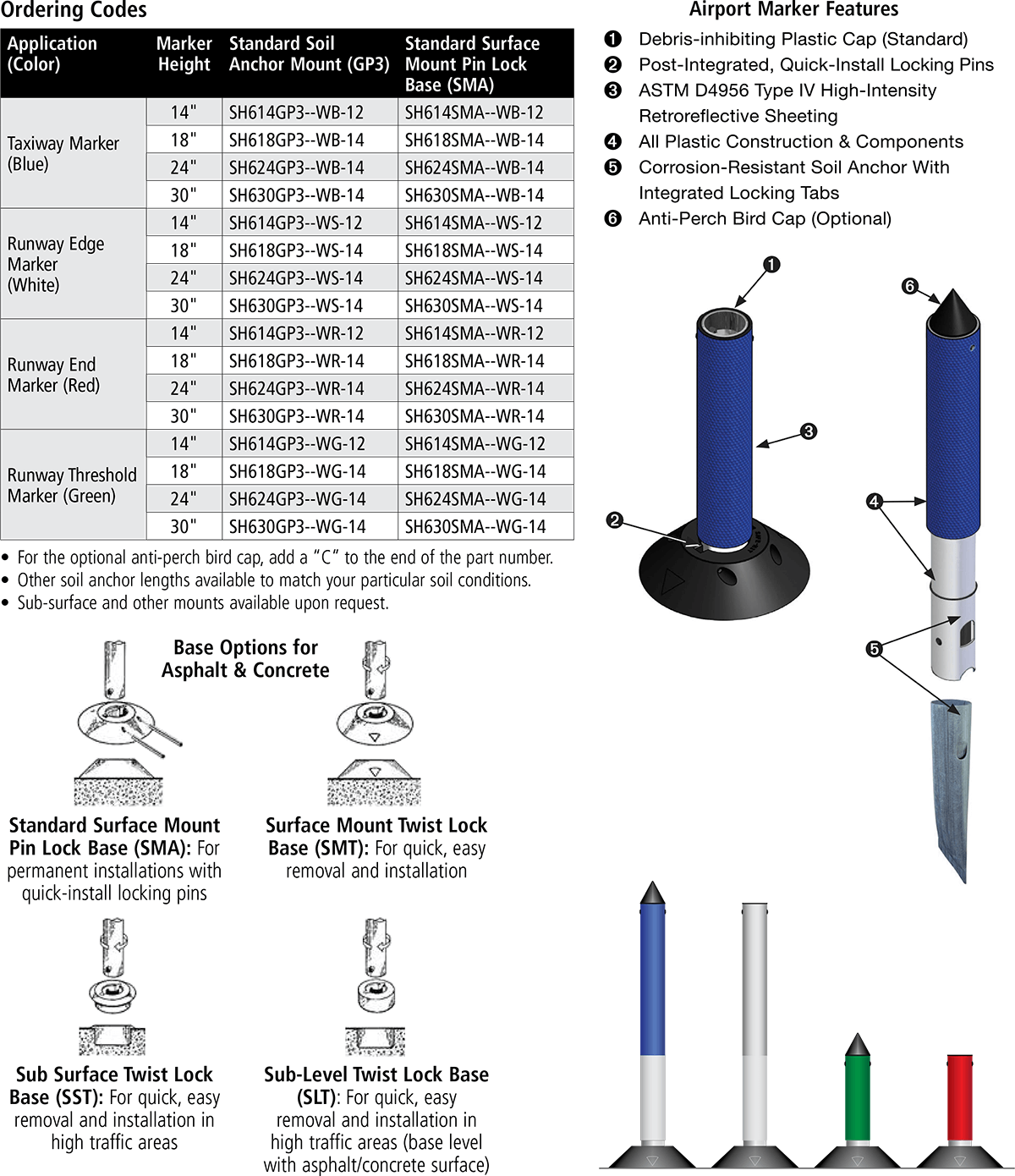

Ordering Codes
| Application (Color) | Marker Height | Standard Soil Anchor Mount (GP3) | Standard Surface Mount Pin Lock Base (SMA) |
|---|---|---|---|
| Taxiway Marker (Blue) | 14″ | SH614GP3–WB-12 | SH614SMA–WB-12 |
| 18″ | SH618GP3–WB-14 | SH618SMA–WB-14 | |
| 24″ | SH624GP3–WB-14 | SH624SMA–WB-14 | |
| 30″ | SH630GP3–WB-14 | SH630SMA–WB-14 | |
| Runway Edge Marker (White) | 14″ | SH614GP3–WS-12 | SH614SMA–WS-12 |
| 18″ | SH618GP3–WS-14 | SH618SMA–WS-14 | |
| 24″ | SH624GP3–WS-14 | SH624SMA–WS-14 | |
| 30″ | SH630GP3–WS-14 | SH630SMA–WS-14 | |
| Runway End Marker (Red) | 14″ | SH614GP3–WR-12 | SH614SMA–WR-12 |
| 18″ | SH618GP3–WR-14 | SH618SMA–WR-14 | |
| 24″ | SH624GP3–WR-14 | SH624SMA–WR-14 | |
| 30″ | SH630GP3–WR-14 | SH630SMA–WR-14 | |
| Runway Threshold Marker (Green) | 14″ | SH614GP3–WG-12 | SH614SMA–WG-12 |
| 18″ | SH618GP3–WG-14 | SH618SMA–WG-14 | |
| 24″ | SH624GP3–WG-14 | SH624SMA–WG-14 | |
| 30″ | SH630GP3–WG-14 | SH630SMA–WG-14 | |
|

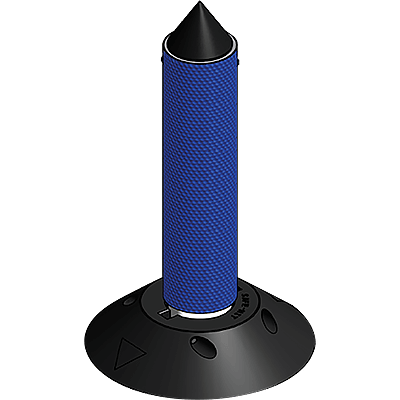

• For the optional anti-perch bird cap, add a “C” to the end of the part number. • Other soil anchor lengths available to match your particular soil conditions. • Sub-surface and other mounts available upon request. |
|||
